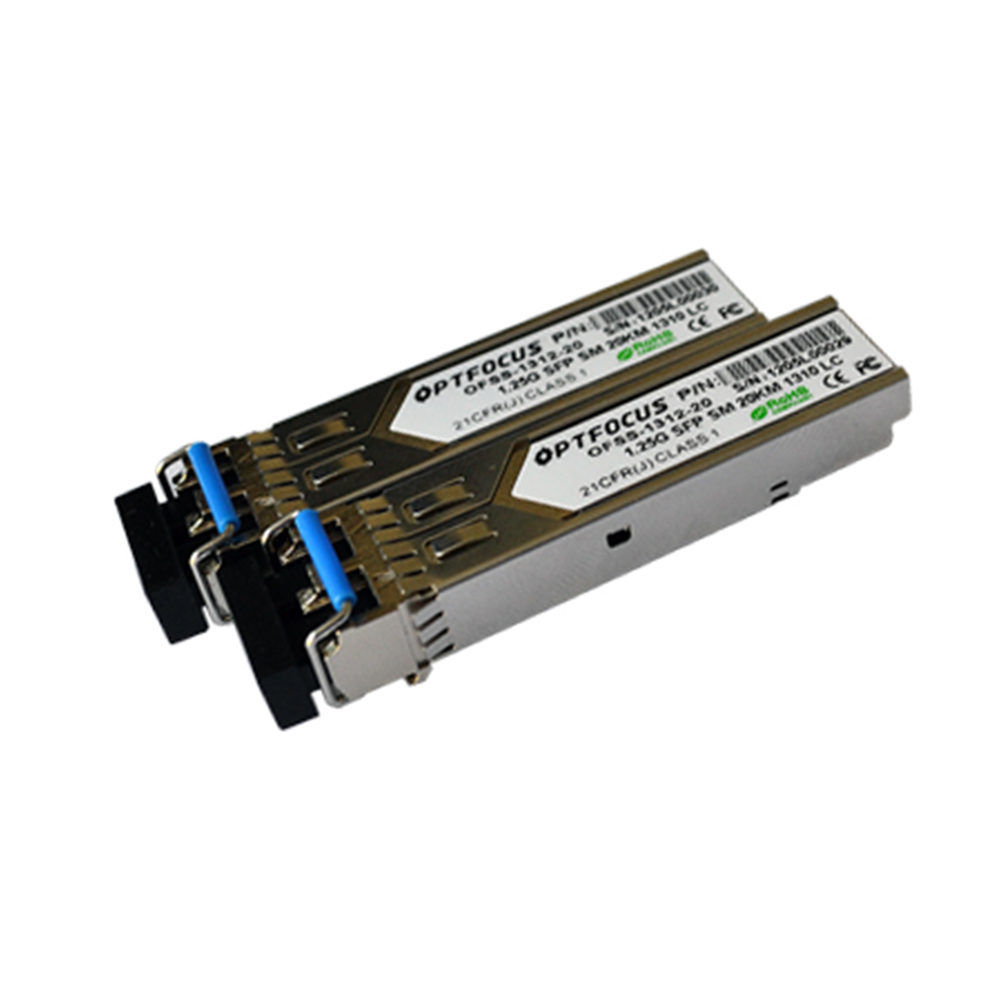

1.25G dual fiber duplex single mode 1310nm 20KM LC connector SFP module

• Model Number:OFSS-1312-20
• Type:Fiber opitc adapter
• Place of Origin:Guangdong, China
• Brand Name:OPTFOCUS
• Use:Network, FTTH
• Warranty Time:2 years
• Network:NETWORK
• Product name:SFP Module
• Application:Gigabit Ethernet
• Standard operating temperature:0 to +70°C
• Data-rate:1.25Gbps
• Wavelength:1310nm
• Distance:20 KM
• Keywords:duplex 1310nm SFP module
• Certification:ce

1.25G dual fiber single mode 1310nm 20KM LC connector SFP module

• Dual data-rate of 1.25Gbps/1.063Gbps operation
• 1310nm FP laser and PIN photodetector for 20km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature:

1. Standard : 0 to +70°C
2. Extended : -20 to +85°C
3. Industrial : -40 to +85°C

1. Gigabit Ethernet
2. Fiber Channel
3. Switch to Switch interface
4. Switched backplane applications
5. Router/Server interface
6. Other optical transmission systems

Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

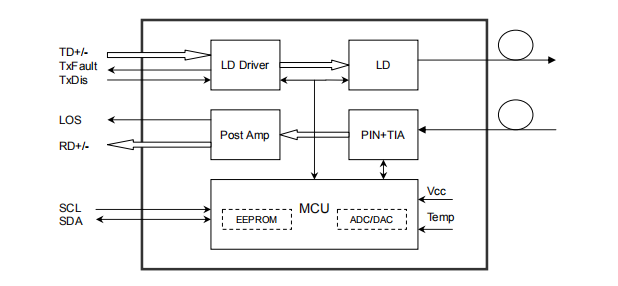

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
