HUAWEI Ecolife 1GE GPON HG8010H HG8310 HG8310M ONT same OEM factory
- Model Number:OFSG511
- Type:FTTx Solutions
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTH
- Warranty Time:1 Year
- Network:Wireless Lan
- Dimensions:64PCS/CTN, 16.5KG/CTN, 48*43*37.5CM/CTN
- Chipset:ZTE
- Uplink:1*PON interface
- Downstream LAN interface:1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
- Compatible:Most brands OLT
- Operating temperature:-5~+55℃
- Transmission Distance:20km from OLT
- Wavelength:Tx 1310nm, Rx 1490nm
- Warranty:3-5years
- Keywords:FTTH GPON EPON XPON ONT/ONU
- Certification:ce

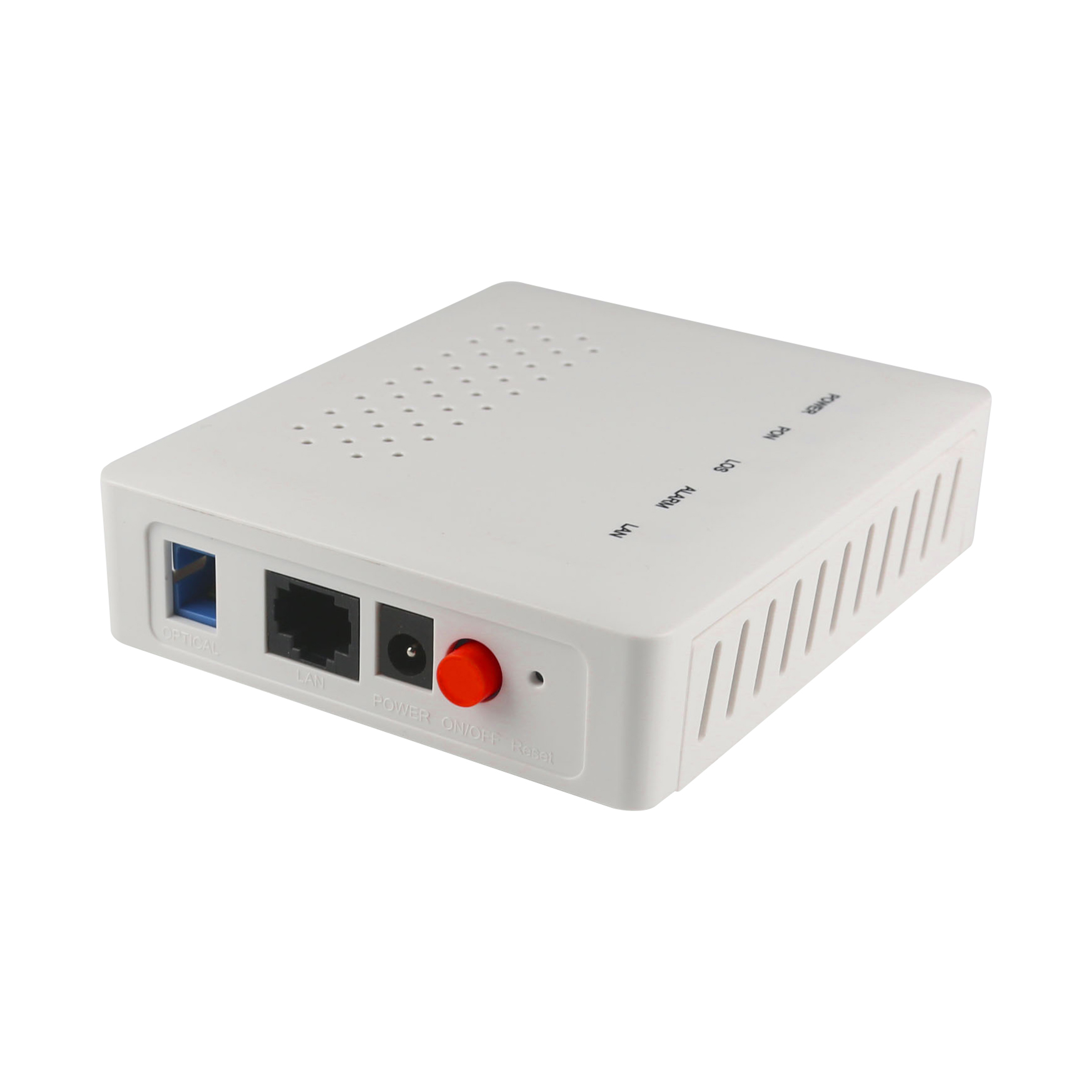

HUAWEI Ecolife 1GE GPON HG8010H HG8310 HG8310M ONT same OEM factory
OFSG511
1GE Ethernet ports EPON ONU for FTTH solution
Description:
OFSG511isEPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators.This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch. It is highly reliable and easy to maintain, with guaranteed QoS for different service.
Definition of indicator LED
lPlug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l Support DBA reporting mechanism request
l Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
l Support the remote upgrade and download
l Support to save configured parameters if power down
l Support to configure the work mode at the user port
l Support MDI-MDIX automatic-detection at the user port.
l Support access authentication based on serial number
l Support access authentication based on MAC address
l Support 802.1Q VLAN
l Support rich QinQ VLAN functions and IGMP Snooping
l Support traffic rule to modify the related priority.
l Support to restore the factory settings
l Support the remote reset and reboot
l Support dying gasp outage alarm
l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Basic Characteristics
Tech parameters | description |
Up-link interface | 1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-27 dBm safety: ONU authentication mechanism |
Wavelength(nm) | TX 1310nm,RX 1490nm |
Fiber connector | SC/UPC connector (SC / APC optional) |
Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
Indicator LED | 4 pcs |
DC supply interface | input+12V 0.5A |
Power | ≤5W |
Operating temperature | -5~+55℃ |
Humidity | 5~95%(non-condensation) |
Storage temperature | -30~+70℃ |
Dimension(MM) | 125*103*28mm(mainframe) |
Weight | 0.3Kg(mainframe) |
symbol | color | meaning |
PWR | green | ON:successfully connect with power OFF:fail to connect with power |
PON | green | ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
LOS | red | Flicker: fail to connect with PON port OFF: detected fiber to input |
