40g Qsfp+ To 8*lc /4x10gbase Sfp+ Aoc Breakout Copper Cable Patch Cord 1~100m Om2 Aoc Cable
- Model Number:OFS-AOC-QSFP+-8FLC-1M
- Type:SFP Modules
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:40 Gigabit Ethernet
- Warranty Time:1Year
- Network:Wireless Lan, Wired LAN, Ip, wifi
- Date Rate:40G
- Product name:40G QSFP+ TO 8*LC AOC Breakout Cable
- Diameter:3mm
- Warranty:1 Year
- Channels:4LC full-duplex
- Cable Type:OM3,OM4
- Wavelength Range:850nm
- Compliant:SFF-8436
- Power supply voltage:3.3V
- Operating temperature:0°C to +70°C

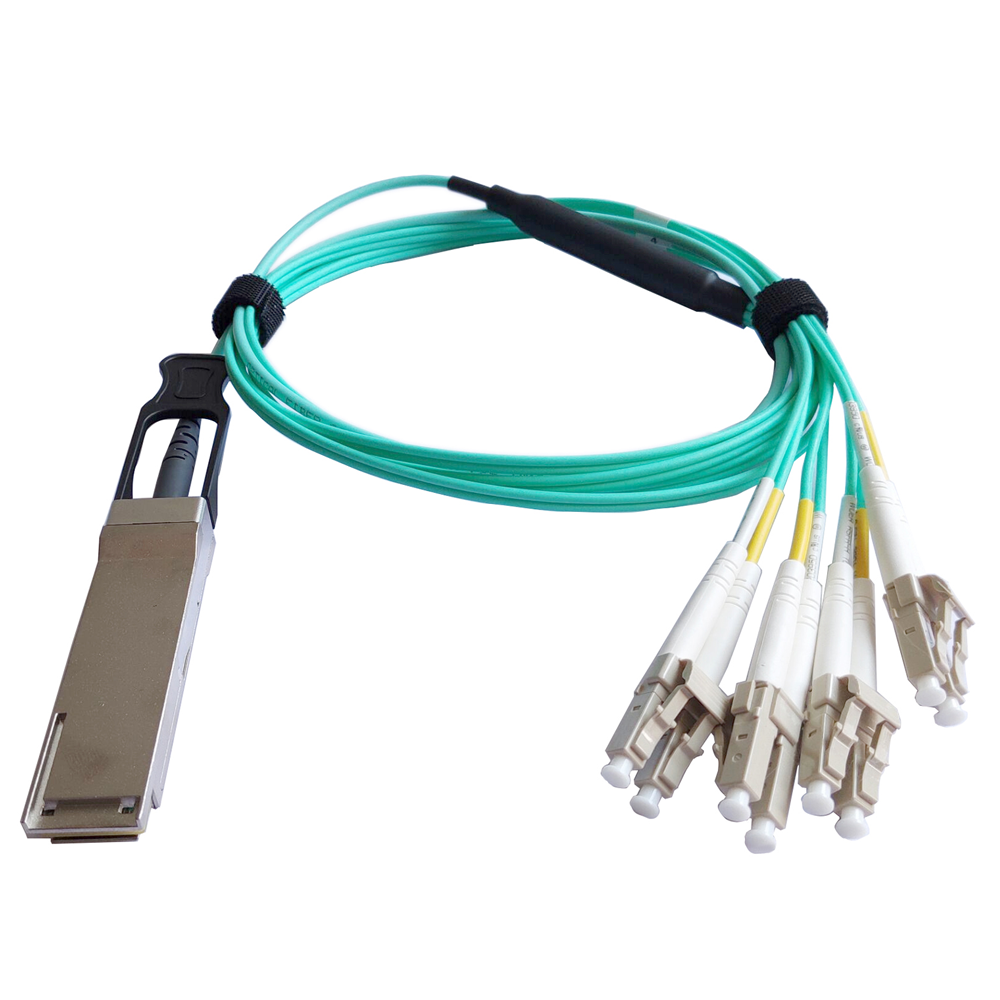

QSFP+ to 4LC Full Duplex Active Optical Cable
Description

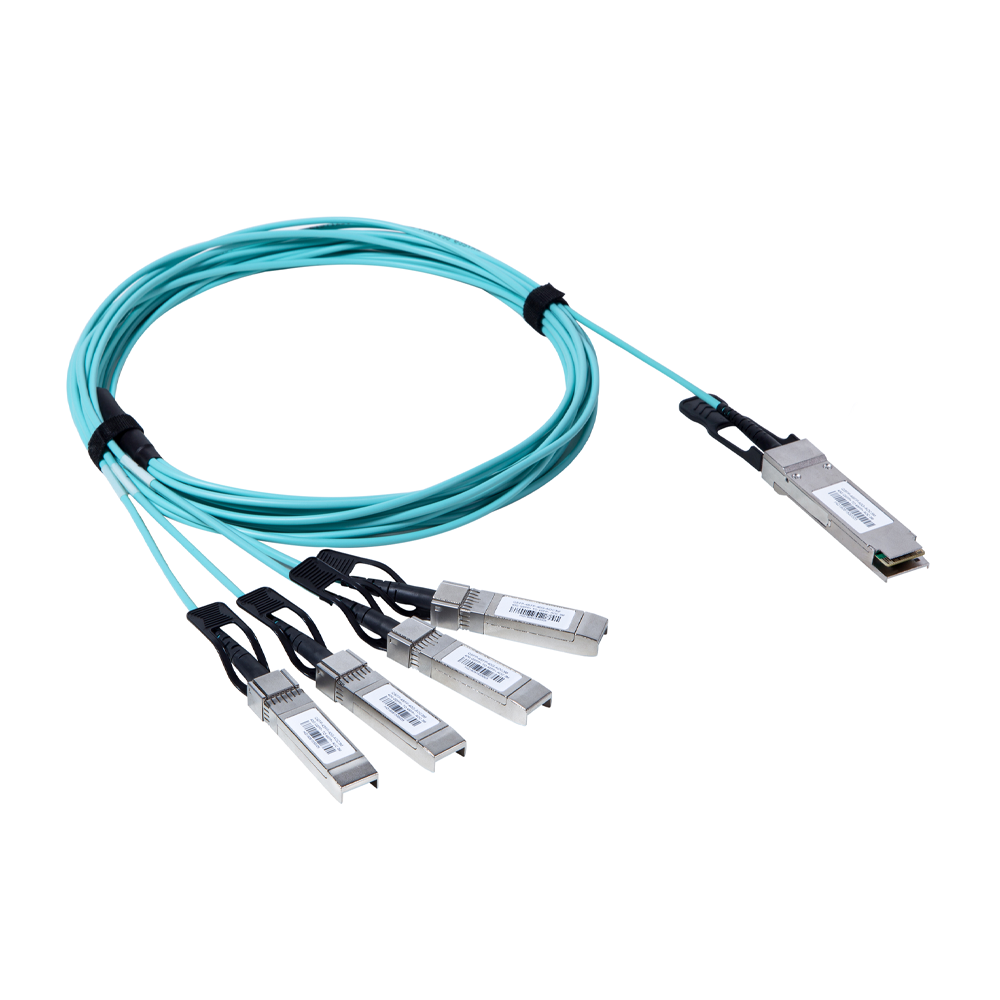

40G QSFP to 4xSFP+ active optical cable is a high-performance, low-power, long-distance interconnection solution that supports 40G.
40G QSFP to 4xSFP+ is a combination of 4 full-duplex channels, each of which can transmit data at a rate of up to 10GB/s, providing an aggregation rate of 40GB/s.
40G QSFP to 4xSFP+ active optical cable (AOC) can be used as an alternative to QSFP passive and active copper cables.
2Features:
4 channels 850nm VCSELand PIN
Electrical interface compliant to SFF-8436
Support 40GE data rate
Hot Pluggable QSFP form factor
Four double LC connector receptacle
Built-in digital diagnostic functions
Operating case temperature 0°C to +70°C
3.3V power supply voltage
UL certification cables (optional)
3Applications
40 Gigabit Ethernet
Fibre Channel Applications
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters
Absolute Maximum Ratings
Parameter | Symbol | Min | Type | Max | Unit |
Storage Temperature | TSTG | -20 | 85 | ℃ | |
Case Operating Temperature | TCase | 0 | 70 | ℃ | |
Supply Voltage | VCC | -0.5 | 3.3 | 3.6 | V |
Input Voltage | Vilvttl | -0.5 | VCC+0.5 | V | |
Damage Threshold | DT | 3 | dBm |
Recommended Operating Conditions
Parameter | Symbol | Min | Type | Max | Unit | ||||||
Case Operating Temperature | TCase | 0 | 70 | ℃ | |||||||
Supply Voltage | VCC | 3.15 | 3.3 | 3.45 | V | ||||||
Differential data input voltage per lane | Vdin | 200 | 1200 | mV | |||||||
Signaling rate per lane | Dr | 2.5 | 10.3125 | Gbit/s | |||||||
Differential Termination Resistance | Zin | 80 | 100 | 120 | Ω | ||||||
Module power | P | 1.5 | W | ||||||||
Compay Profile

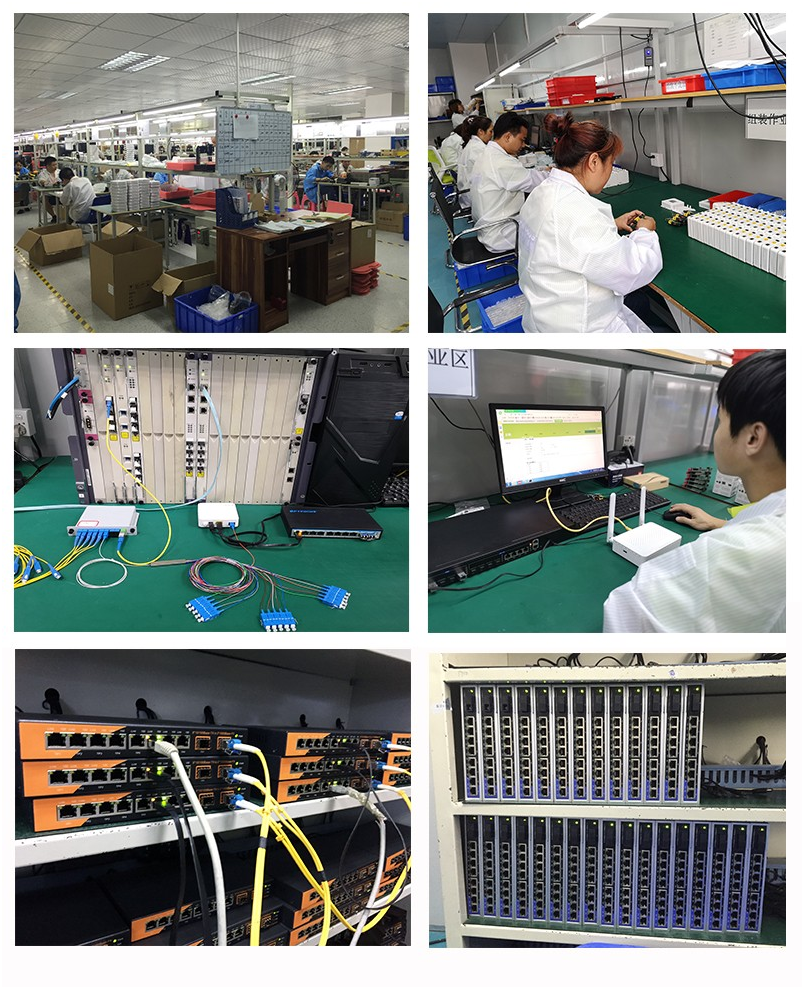

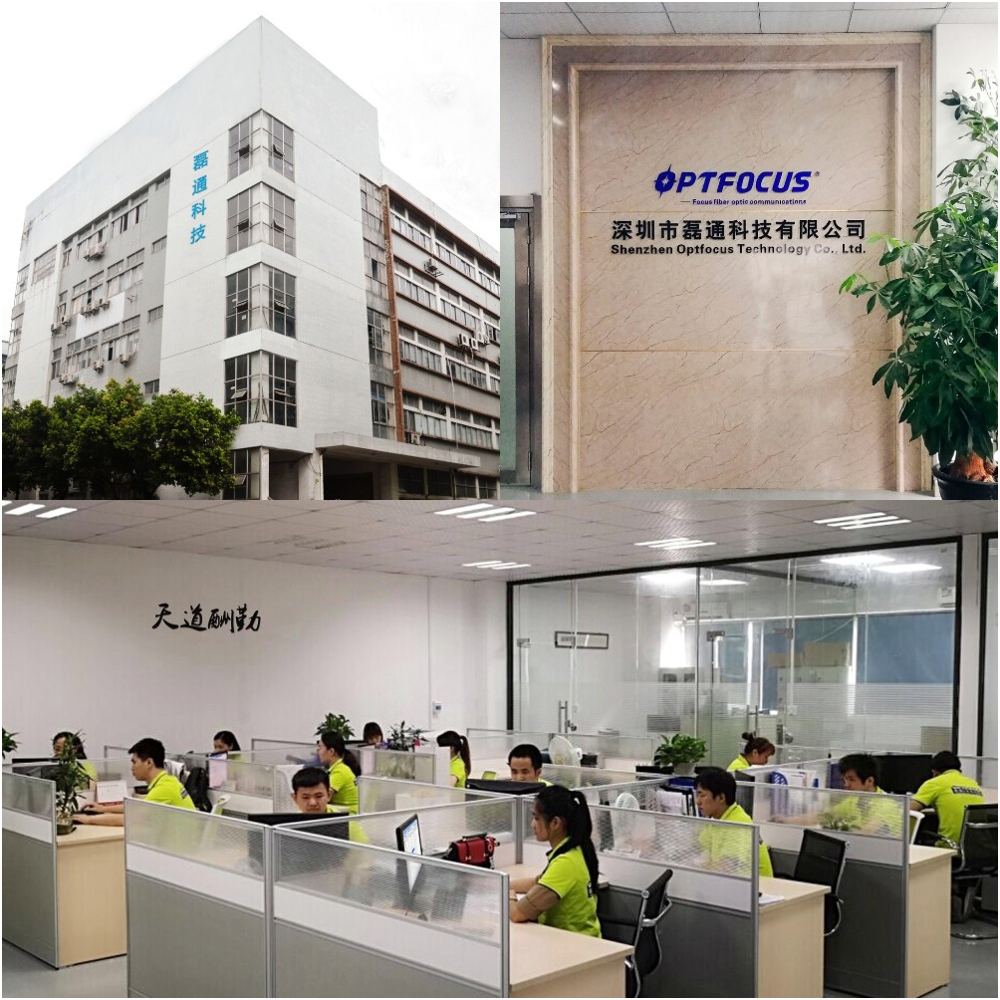

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a National High-tech Enterprise integrating with R&D, manufacturing, marketing and service to our worldwide partners and customers.
OPTFOCUS with more than 13 years’s experience focus on high-performance fiber optical communication solutions&products,network security monitoring transmission solutions& products.FTTH/FTTx Access solutions&products.
