Bursting pof ethernet switch with 1000M 2 ETH Port 1 Port FX
- Model Number:OFS-IGSF1T2-20
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Fiber Type:double fiber
- Interface type:SC/PC
- Wavelength:1310nm
- Distance:20 Km
- Bandwidth:6Gbps
- MAC Address Table:4K
- Forwarding Mode:Store-and-Forward
- Operating temperature:-40 ℃ ~ +85 ℃
- Product size:15.3cm* 11.5cm* 4.7cm
- Warranty:5-years
OFS-IGSF1T2-20
1*1000M SFP port + 2*1000M RJ45 port 20KM industrial fiber switch
Description:
Industrial switch, 2 Port 10/100/1000Mbps ports and 1 port1000MbpsSFP Slot, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other supported devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted system. Power input also chooses industry-standard types of power
Technical Specifications
Product Name | 2-port 10/100/1000Mbps + 1-port1000Mbps Fiber |
Product Model | OFS-IGSF1T2-20 |
Interface | 2*10/100/1000Base-T port + 1*1000MbpsSC/ST/FCFiber(Optional) |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
Performance Specification | Bandwidth:6Gbps |
Packing List | 1×Industrial Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit |
Forwarding Mode | Store-and-Forward |
Protection | Lightening protection, IP40 protection |
LED Indicators | Power: PWR; Link;speed 1000 ; Link/Act |
Power Supply | Input Voltage: DC52V (48~57V) /Terminal block |
Operating temperature | -40 ℃ ~ +85 ℃ |
Storage temperature: | -40 ℃ ~ +85 ℃ |
Relative humidity | 5~95% (no frost) |
Feature:
l2Port 10/100/1000Mbps with Auto Uplink™ , 1port 1000MbpsFiber
lAutomatic MAC address learning and aging
lAutomatically support IGMP (Multicasting)
l10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
lLED indicators for monitoring power/link/activity
lSupports 10/100/1000Mbps-Full/Half-duplex
lSupports Wall-mount and DIN-Rail installation for lightning protection
lSupports Daisy-Chain connection
lSupports Broadcast Storm Control
lSupports Relay output for power failure
lSuper lightening protection, IP40 protection.
lExcellent heat elimination without cooling fan.
lRedundant dual DC power inputs.
lRedundant Power Inputs
lApply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
lHarsh industrial environment or higher requirement
l-40℃-85℃operatingtemperature range.
Other Specifications:
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC6100-4-3 (RS): 10V/m (80MHz-2GHz) IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Shell | IP40 protect grade, metal shell |
Installation | DIN-Rail or Wall mounts |
Certification | CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B |
MTBF | 300,000 hours |
Weight & Size | Product Weight: 0.5 KG Packing Weight: 1.1 KG Product size (L×W×H): 15.3cm×11.5cm×4.7cm Packing size(L×W×H): 21.6cm×20.6cm× 6.7 cm |
Warranty | 5-years |

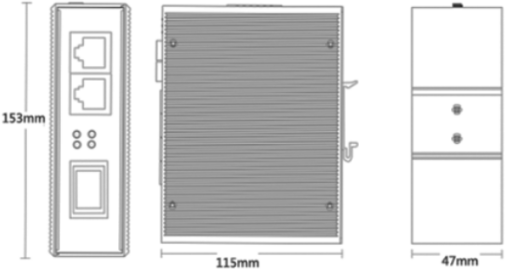

Chassis Dimension:

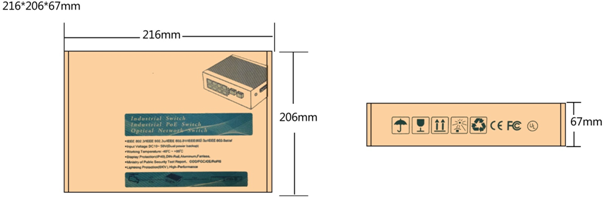

Package Dimension:

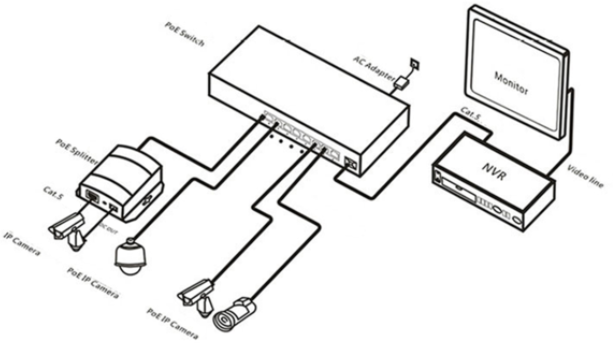

Solutions:
OrderingInformation:
model | Product description |
OFS-IGSF1T2-20 | 2*10/100/1000Base-T RJ45,1*1000M fiber ports,SC,double fiber1310nm,20km |
OFS-IGSF1T2-xx | 2*10/100/1000Base-T RJ45,1*1000M fiber ports,SC,double fiber,.max optical fiber distance from 20 to 120 km, “xx” for the amount of distance |
OFS-IGSF1T2A-20 | 2*10/100/1000Base-T RJ45,1*1000M fiber ports,SC,Single Fiber 1310nm,20km |
OFS-IGSF1T2B-20 | 2*10/100/1000Base-T RJ45,1*1000M fiber ports,SC,Single Fiber 1550nm,20km |
OFS-IGSF1T2A/B-xx | 2*10/100/1000Base-T RJ45,1*1000M fiber ports,Single Fiber ,One set of “A” must be connected with another set of “B” for using.max optical fiber distance from 20 to 120 km, xx for the amount of distance |
Payment
Certifications
Customer Evaluation
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
If you have any interested in fiber optical products, please feel free to contact me!
Our Company
Who is SHENZHEN OPTFOCUS TECHNOLOGY CO.,LTD ?
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.

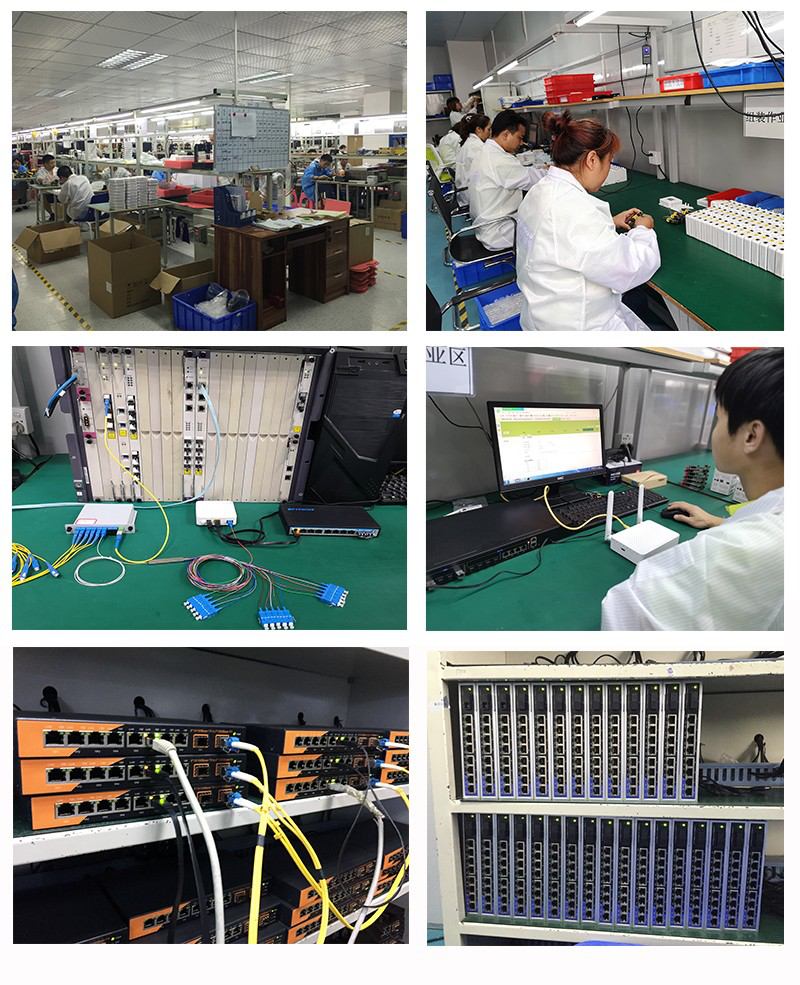

Production Workshop
