d link media converter similar converter media 10g sfp giga sc media converter
OFS-GS-20C
minimum order
1 piece
Country of Origin
SHENZHEN,GUANGZHOU,HONGKONG
Quantity
- Model Number:OFS-GS-20C
- Type:Media converter
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTx
- Warranty Time:1 year
- Keyword:Media converter
- Fiber port rate:1000M
- RJ45 rate:10/100/1000M adaptive
- Forwarding Mode:Store-and-Forward
- Forwarding Rate:1488000pps/port
- Power:Output:DC 5V 1A
- Power consumption:2.5W
- Working temperature:-10~55℃
- Storage temperature:-20~75℃
- Product size:94.5*70*26mm
- Single-Mode Fiber:Max 120km
- Multi-Mode Fiber:Max 5km
- No. of Fiber:1 or 2
- Application:Fiber connect
- Power Input:2.5W
Product Description

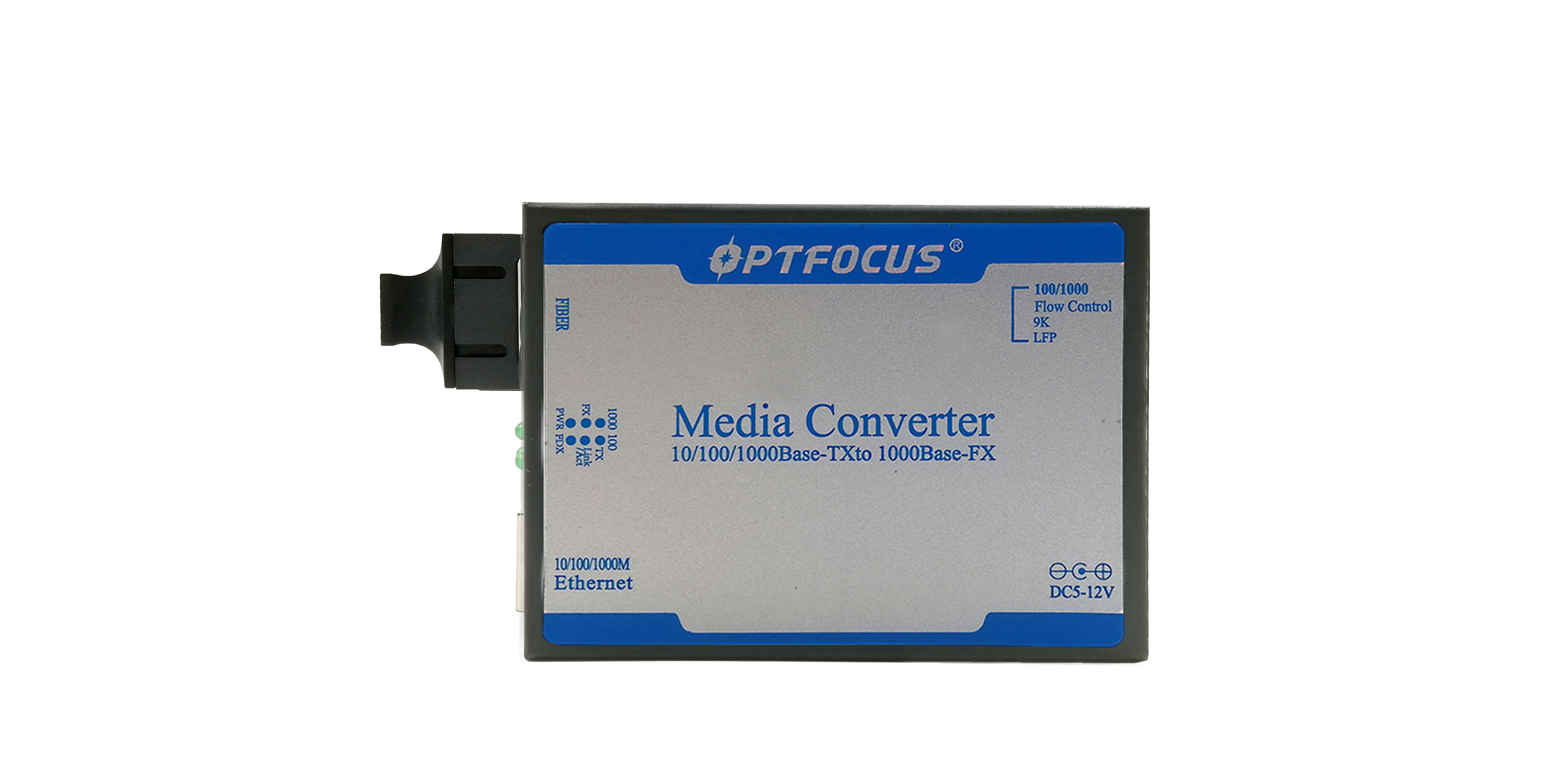

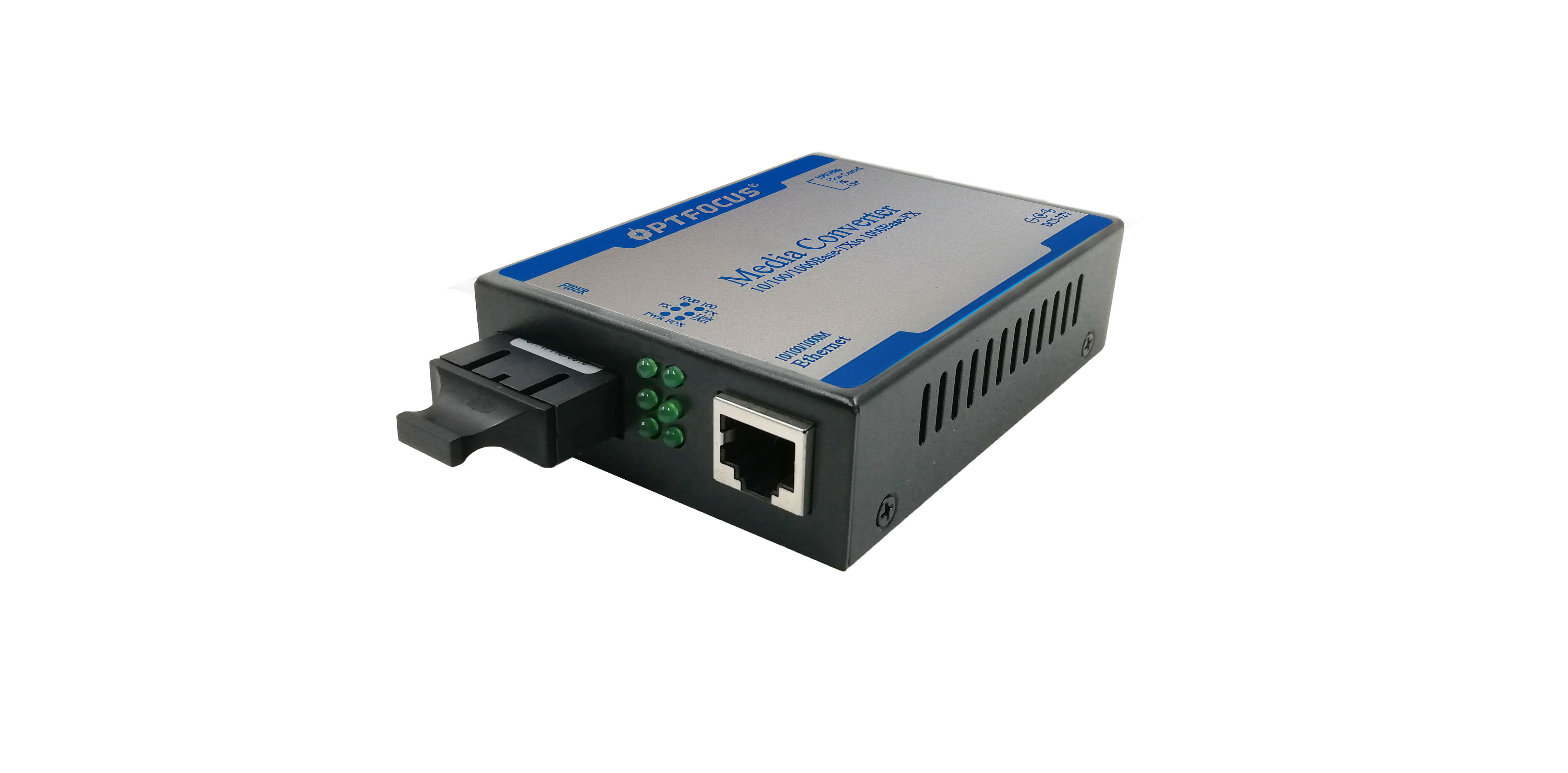

OFS-GS-20C
OFS-GS-20C Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100/1000M UTP interface (TX) and 1000M Fiber interface (FX). The traditional 10/100/1000M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone
Specification
Product Name | 10/100/1000M Media Converter |
Product Model | OFS-GS-20C |
Connector | Dual Fiber: 1* 1000Mbps，SC/ST/FC Optional RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm（the max distance up to 2km or 5km） Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm（the max distance up to 100km） |
Forwarding Mode | Store-and-Forward |
Forwarding Rate | 1488000pps/port |
Operating standard | IEEE802.3,IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
Power Supply | Input:AC 100~250VOutput:DC 5V 1A ,（default） or Input:DC:-36V~-72V；Output:DC 5V 1A ,（Optional） USB power supply (optional) |
Power consumption | 2.5W |
LED | Power, Link/Act, TX 1000、TX 100、FDX、 Link/Act. |
Working Environment | Working temperature: -10～55℃ ; Storage temperature: -20～75℃ Relative Humidity: 5%~95 %( no condensation) |
Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
Packing List | 1× Media Converter 1×User Manual/Certificate of quality/Warranty card 1×power adapter |
MTBF | 100,000 hours |
Weight & Size | Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 94.5*70*26mm Packing size(L×W×H):215*138*56mm |
Warranty | 1-years |
Main Features
Features
* 1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP
* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
* Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
* Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex
* Supporting 1552 bytes packet
* Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
* Data Transfer Rate:
- TP: 10/100/1000Mbps
- FX: 1000Mbps
* Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
* LED indicators: Power,, FX Link/Act, TX 1000,100，TX FDX, TX Link/Act
* Supports link fault pass through function.
* Design of internal or external power supply for selection by end-users
* Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
* Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
* Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex
* Supporting 1552 bytes packet
* Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
* Data Transfer Rate:
- TP: 10/100/1000Mbps
- FX: 1000Mbps
* Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
* LED indicators: Power,, FX Link/Act, TX 1000,100，TX FDX, TX Link/Act
* Supports link fault pass through function.
* Design of internal or external power supply for selection by end-users
* Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
