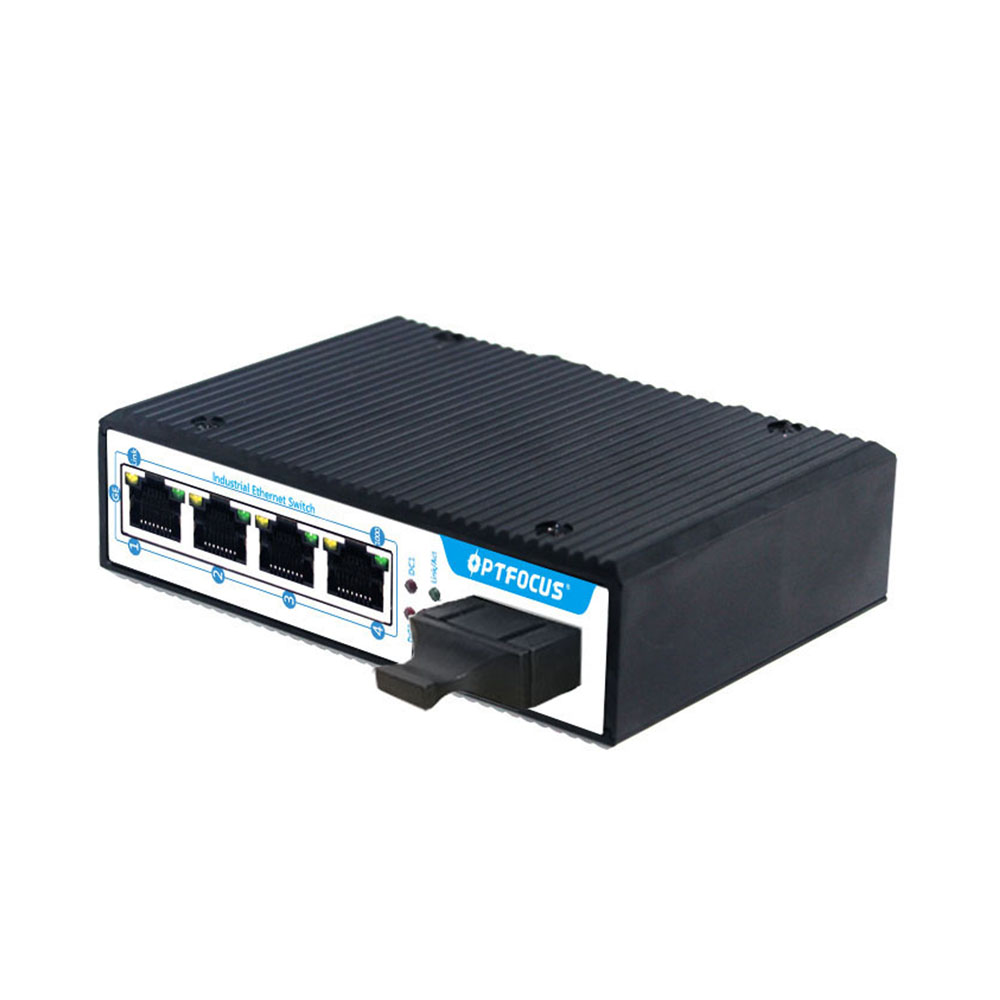

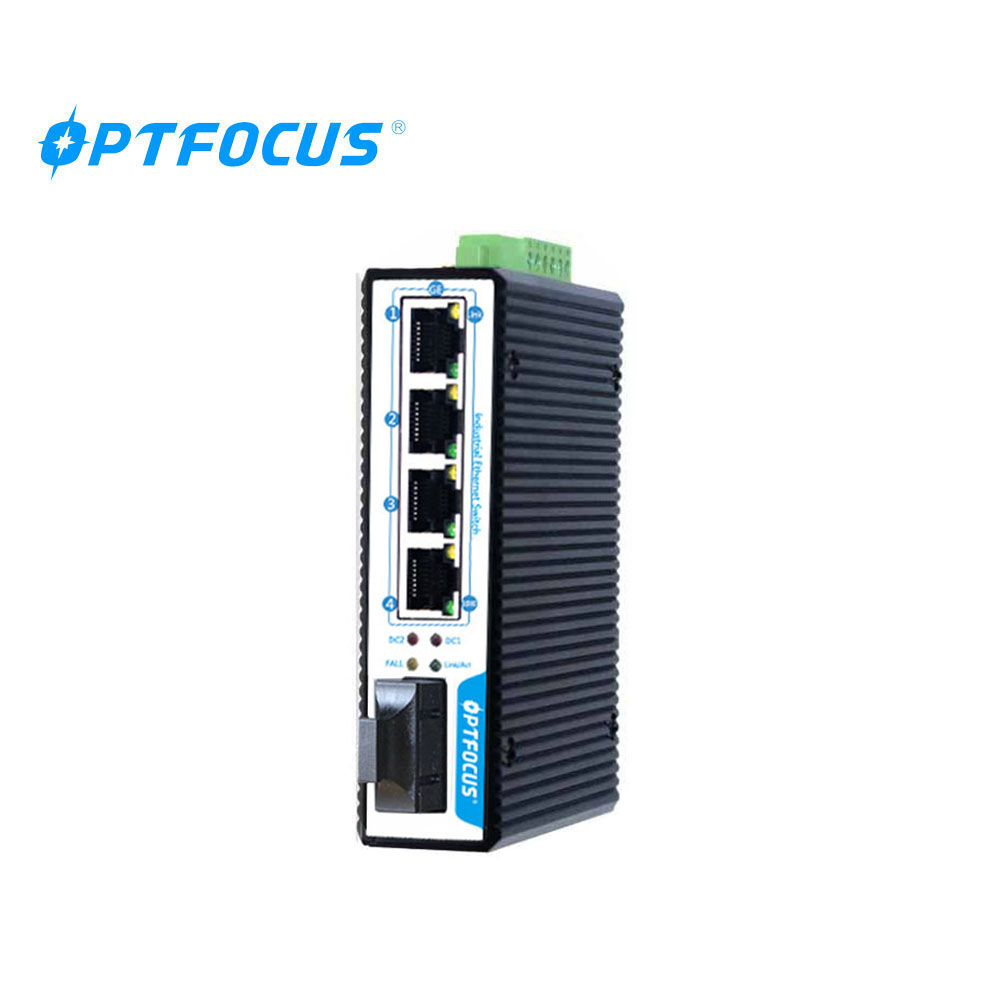

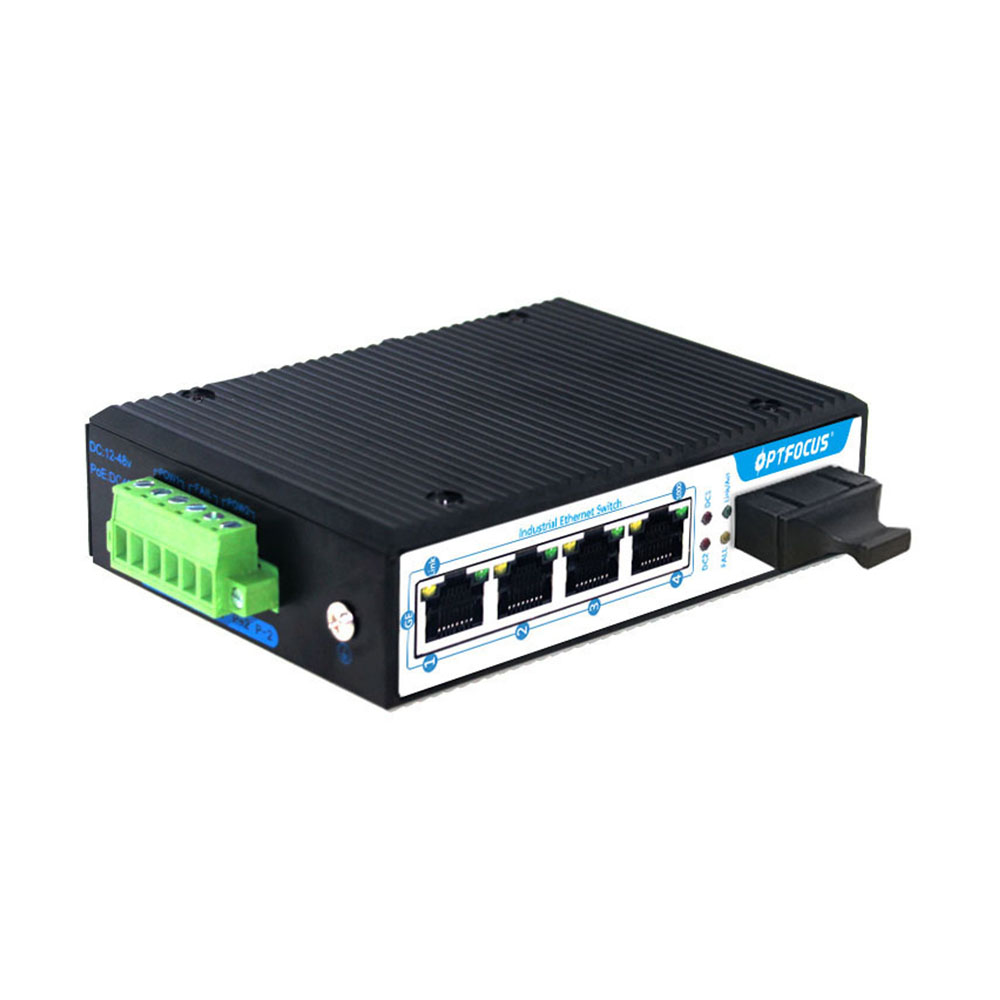

DC10~55V 5 Port Industry POE Switch Gigabit Ethernet POE IP Camera NVR POE 1000 Mbps
- Model Number:OFS-PE-IGSF1T4-20
- Type:Industrial POE switch
- Place of Origin:Guangdong, China
- Brand Name:Optfocus
- Use:FTTH,FTTB,FTTC
- Warranty Time:1 year
- Network:Wireless Lan, Wired LAN
- Input Voltage::DC10~58V (dual Power Redundancy Backup)
- Working Temperature::-40 ℃~ + 85 ℃
- Fiber Ports::One 1000BaseFX Ports (SC/ST/FC/LC Connector, Optional)
- Housing::IP40 Protection Grade, DIN Rail Type, Metal Aluminum
- Standard::IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE 802.3at
- Backplane Bandwidth::10Gbps
- Dimensions::143 X 104 48mm X (wide X Deep X High)
- Single-mode::20, 40,60, 80,100,120Km,optional
- Quantity Of The Ports::5
- Keyword::POE Switch Industrial,Industrial Switch
DC10~55V 5 Port Industry POE Switch Gigabit Ethernet POE IP Camera NVR POE 1000 Mbps
Product description

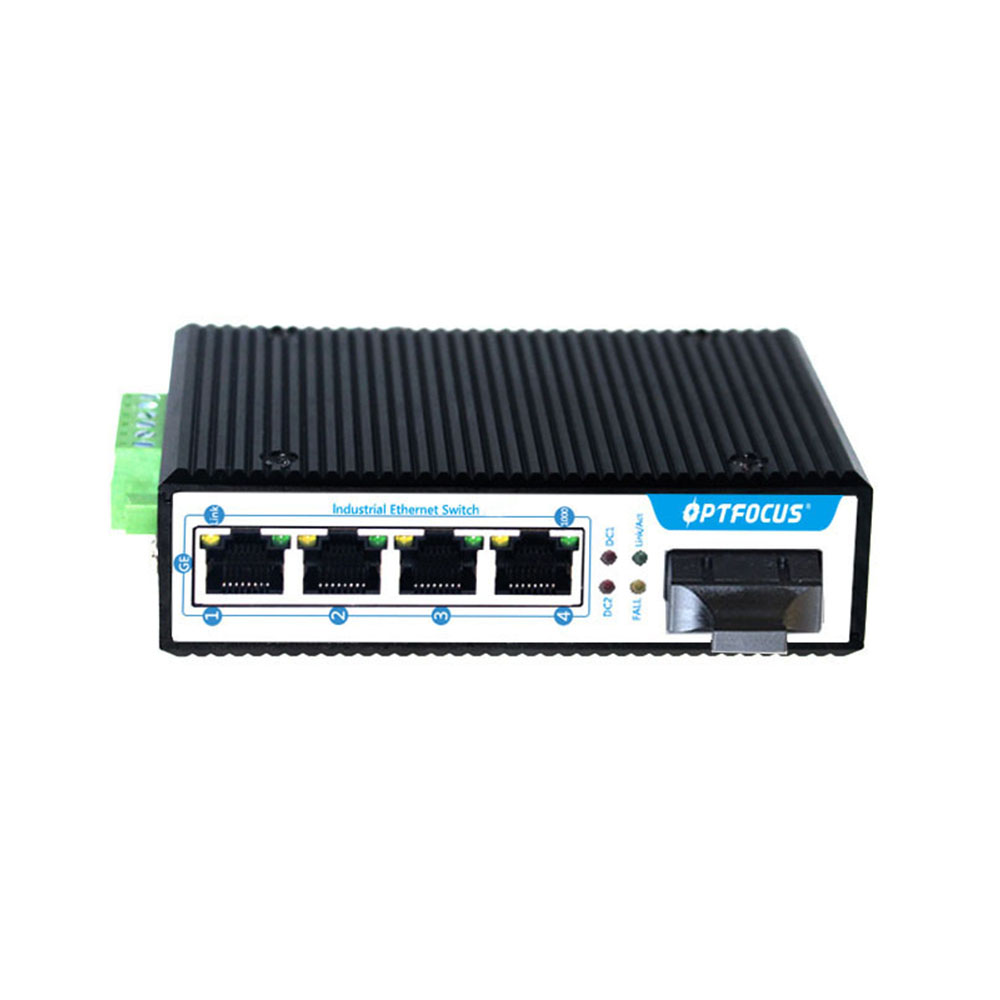

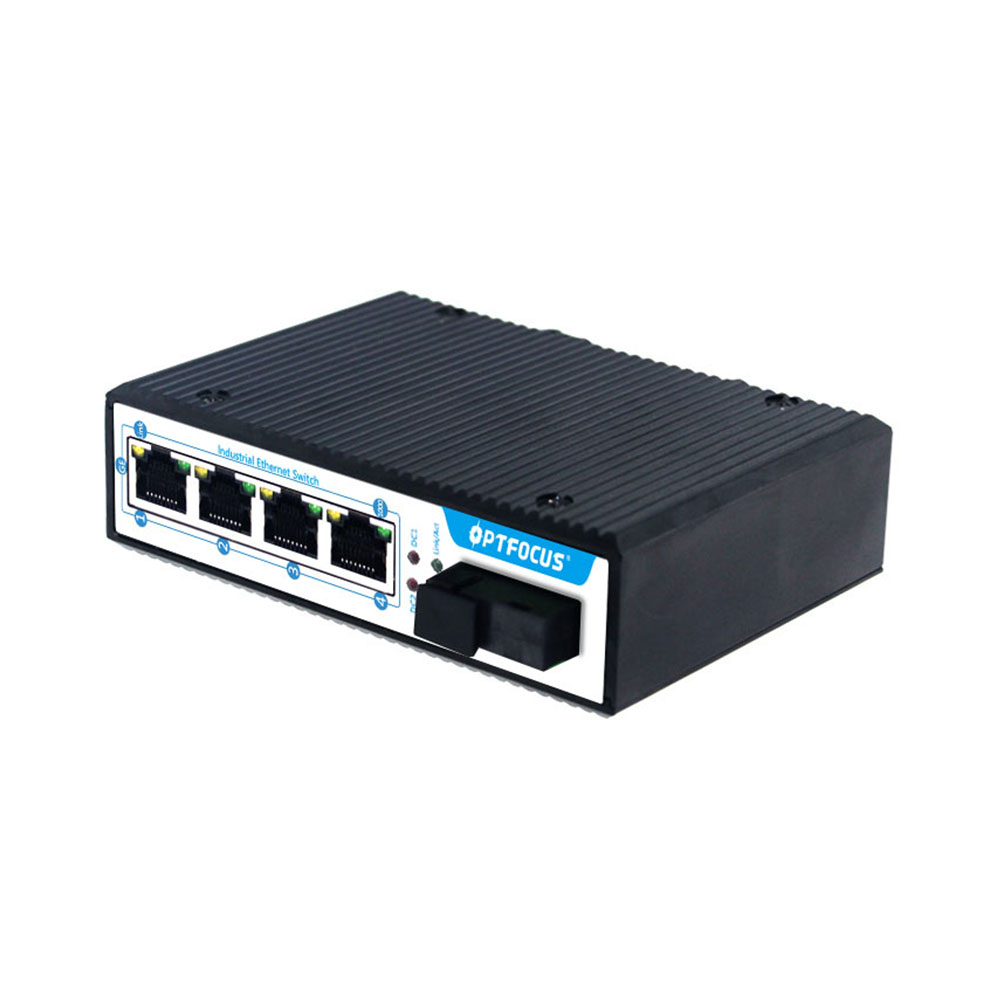

The product is an unmanaged industrial level Gigabit Ethernet switch, with 1 Gigabit Fiber port, 2 10/100/1000Base-T adaptive Ethernet interface RJ45. It help users to realize the Ethernet data exchange, convergence and long-distance optical transmission function. The equipment has the advantages of no fan, low power consumption, easy to use, small size, simple maintenance and so on. Product design in line with the Ethernet standard, add lightning protection, anti-static protection measures, -40 DEG C ~ +85 wide range of working temperature, stable and reliable performance. The device can be widely used in intelligent transportation, telecommunications, security, finance and securities, customs, maritime, electric power, water conservancy and oil fields and other broadband data transmission.
Key Features
Input voltage: DC10~58V (dual power redundancy backup)
Working temperature: -40 ℃~ + 85 ℃
Housing: IP40 protection grade, DIN rail type, metal aluminum, no fan design
Inspection report: through the Ministry of public security inspection report, CCC/FCC/CE/ROHS
Specifications
PortS Quantity: 3
Fiber Ports: one 1000BaseFX ports (SC/ST/FC/LC connector, optional)
10/100/1000M RJ45:two 10/100/1000BASE-T RJ45
Transmission mode: full duplex mode
standard:IEEE 802.3,IEEE 802.3u ,IEEE 802.3I,IEEE 802.3z,IEEE 802.3at
Application level:L2
backplane bandwidth:10Gbps
Packet forwarding rate:7.44Mpps
MAC: 8K
Buffer:1M
delay time:<4μs
Exchange: Store - forward
LEDPower
TX,FX(Link/ACT)
Housing: metal material
Cooling: natural cooling, no fan
Dimensions: 143 x 104 48mm x (wide x deep x high)
weight: 0.85Kg

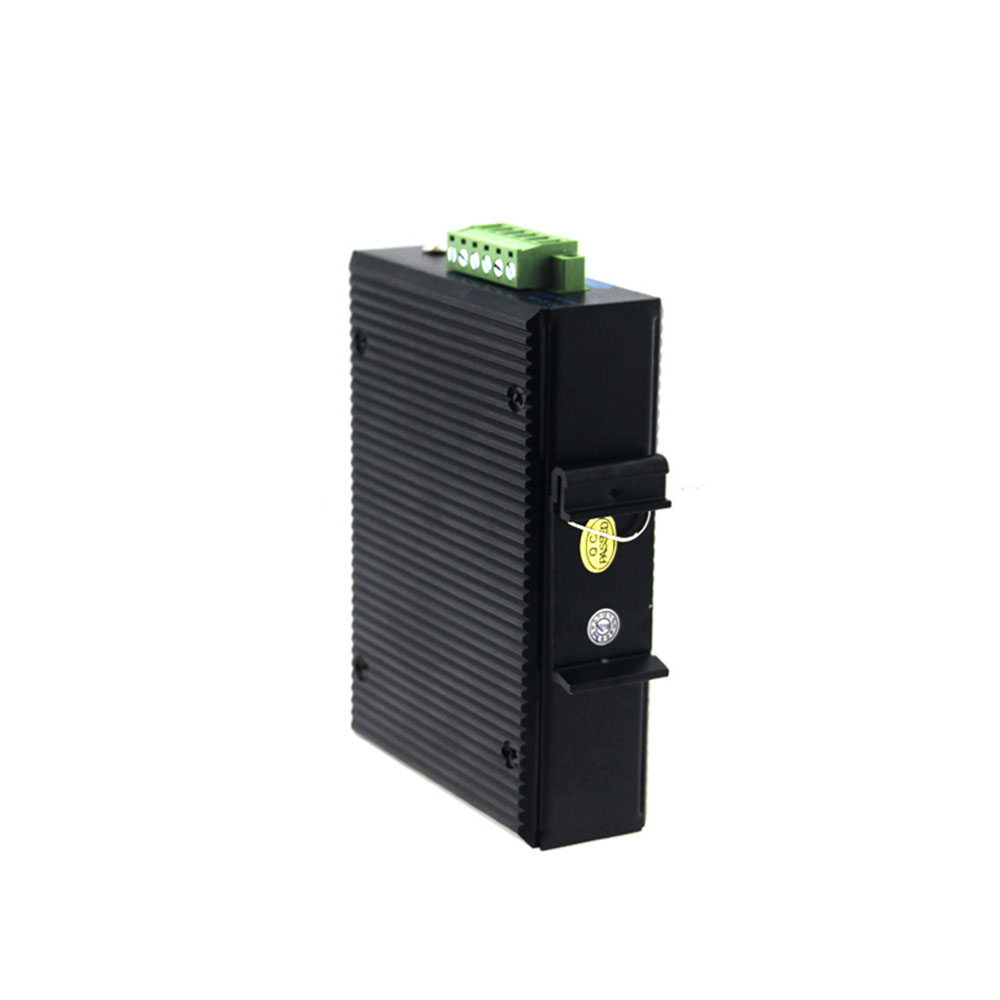

Installation mode: DIN card rail type
Operating temperature: -40 ℃ ~ +85℃
Storage temperature: -40 ℃ ~ +85℃
Relative humidity: 5~95% (no frost)
Transmission distance twisted pair: 100m (using CAT5e, CAT6 network cable))
transmission distance
Twisted pair: 100m (CAT5e, CAT6)
Multi-mode: 550m
Single-mode: 20, 40,60, 80,100,120Km,optional
MTBF:100,000 hour
PowerInput voltage: DC10~58V (dual power redundancy backup)

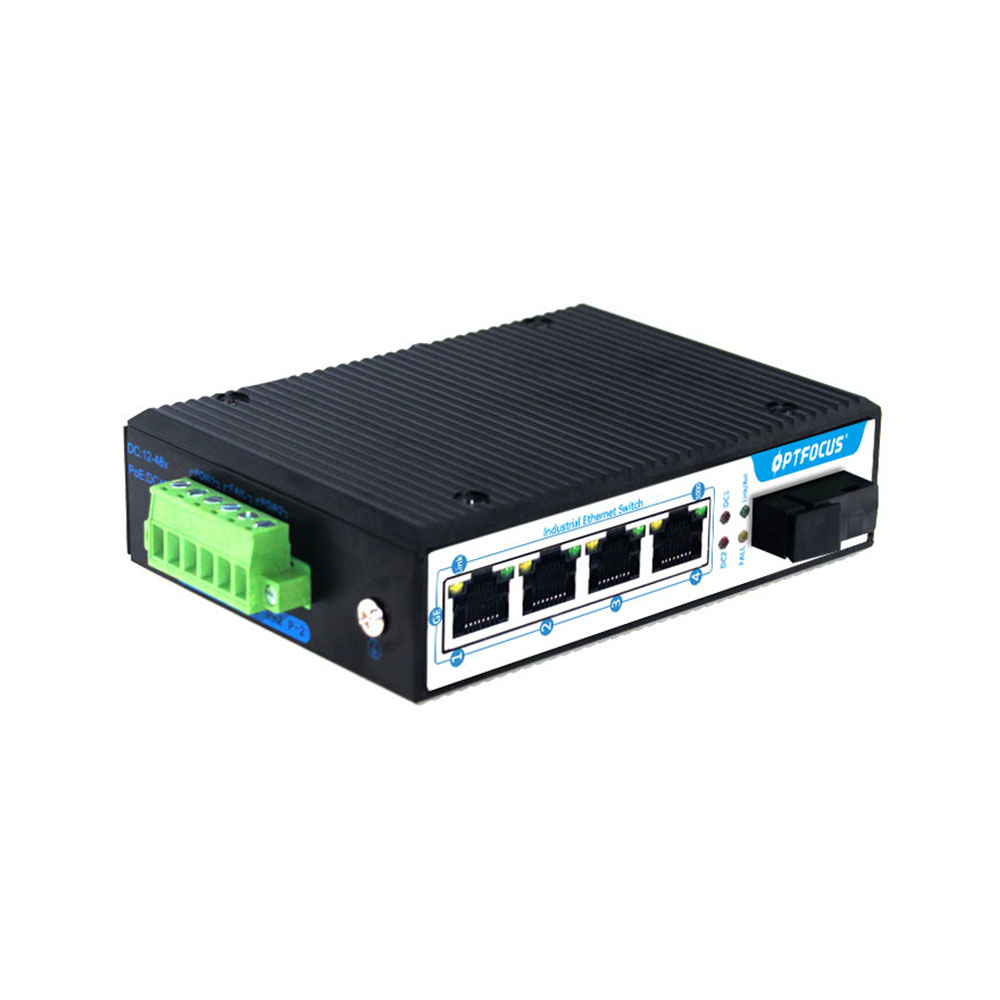

Access terminal: Phoenix terminal
Power (full load) <4W
Warranty period: 5 years
Certification: Ministry of public security inspection report,CCC , CE,FCC, RoHS
Ordering Information:
| Model | Product description |
OFS-IGSF1T2-20 | 1 Gigabit fiber ports(SC dual fiber), 2 10/100/1000Base-T RJ45 |
| OFS-IGWSF1T2A/B-20 | 1 Gigabit fiber ports(SC single fiber), 2 10/100/1000Base-T RJ45 |
| OFS-IGSF1T2 | 1 Gigabit fiber ports(SFP), 2 10/100/1000Base-T RJ45 |
| OFS-PE-IGSF1T2-20 | 1 Gigabit fiber ports(SC dual fiber), 2 10/100/1000Base-T RJ45, POE power supply |
| OFS-PE-IGWSF1T2A/B-20 | 1 Gigabit fiber ports(SC single fiber), 2 10/100/1000Base-T RJ45, POE power supply |
| OFS-PE-IGWSF1T2A/B-20F | 1 Gigabit fiber ports(FC single fiber), 2 10/100/1000Base-T RJ45, POE power supply |
| OFS-PE-IGSF1T2 | 1 Gigabit fiber ports(SFP), 2 10/100/1000Base-T RJ45, POE power supply |

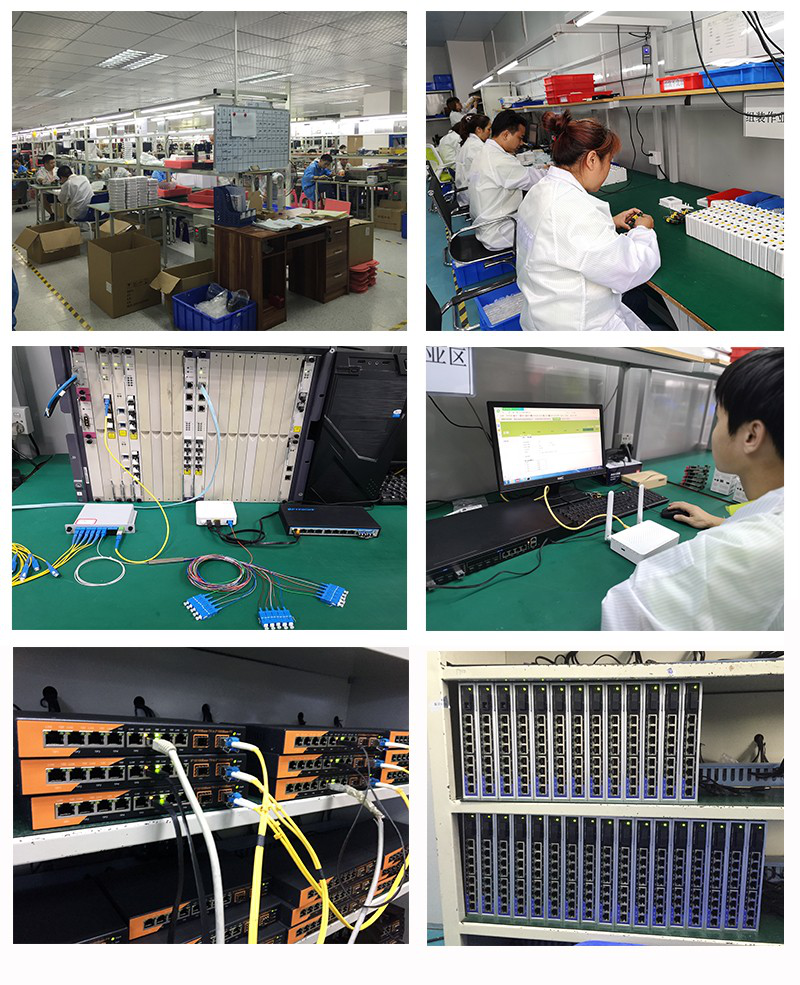

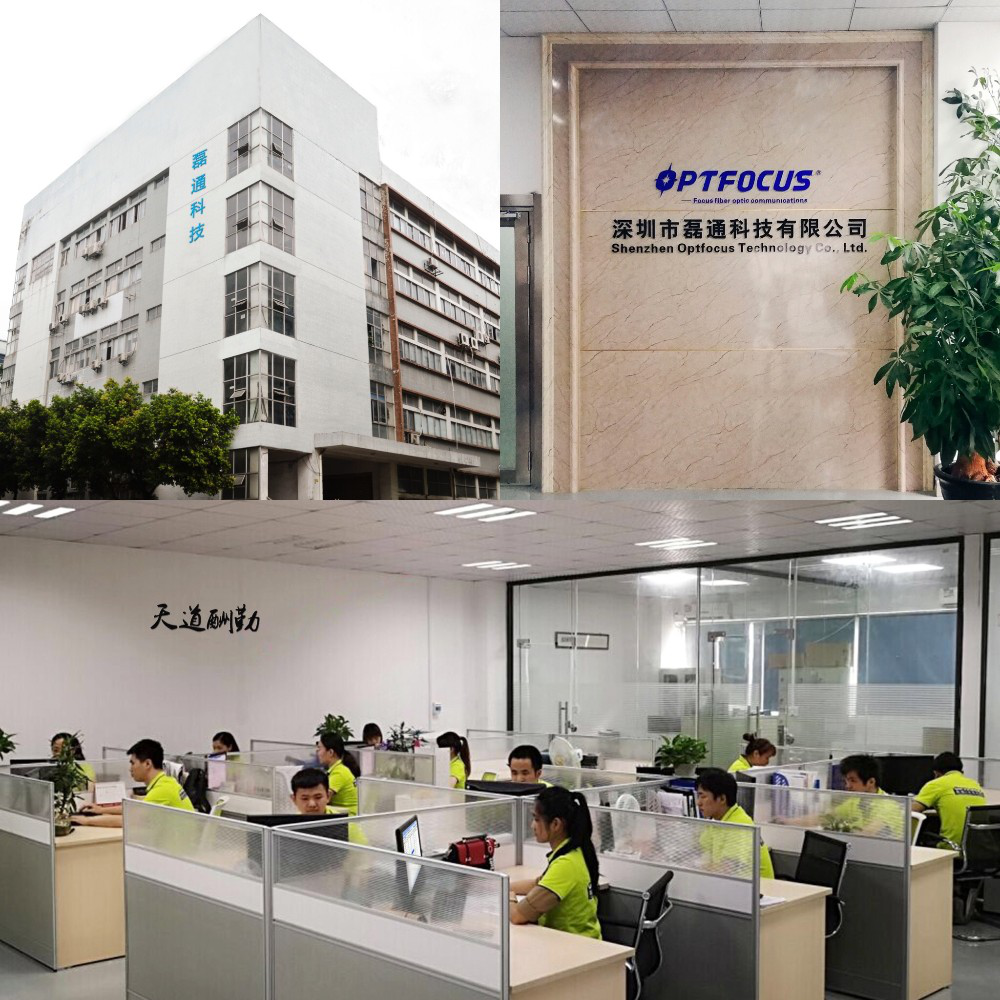

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.
