ethernet switch 1000m 8 port poe 100M PSE +2Ports 100M up link POE Switch
- Model Number:OFS-PE-DT6
- Type:Enterprise Switch
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS/OEM
- Product Name:6-port 10/100Mbps Ports
- Model Name:OFS-PE-DT6
- Power Supply:Input Voltage: DC52V (48~55V)
- Network Protocols:IEEE802.3 10BASE-T
- Installation:DIN-Rail or Wall mounts,Optional
- MTBF:100,000 hours
- Use:FTTX
- Certification:ETL, UL, FCC
OPTFOCUS 4 Port POE Switch 100M PSE +2Ports 100M up link POE Switch Compatible With Huawei Zte Vsol
Product Brief Introduction:
OFS-PE-DT6
4ports100M PSE +2Ports 100M up link POE Switch
Description:
OFS-PE-DT6 Ethernet switch with 6*10/100Mbps RJ45ports. It is designed to meet the various application needs, and provide an Ethernetnetwork communication solution with a highperformance-price ratio.
OFS-PE-DT6’s high availability and reliability, aswell as the richsecurity features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP phone, wireless AP and other PoE supported devices.. Power input also chooses industry-standard types of power.
Main Features:
6 Port 10/100Mbps with Auto Uplink™
4 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
Automatic MAC address learning and aging
10/100Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports10/100Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control
Supports Relay output for power failure
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh environment or higher requirement
-10℃-55℃operating temperature range.

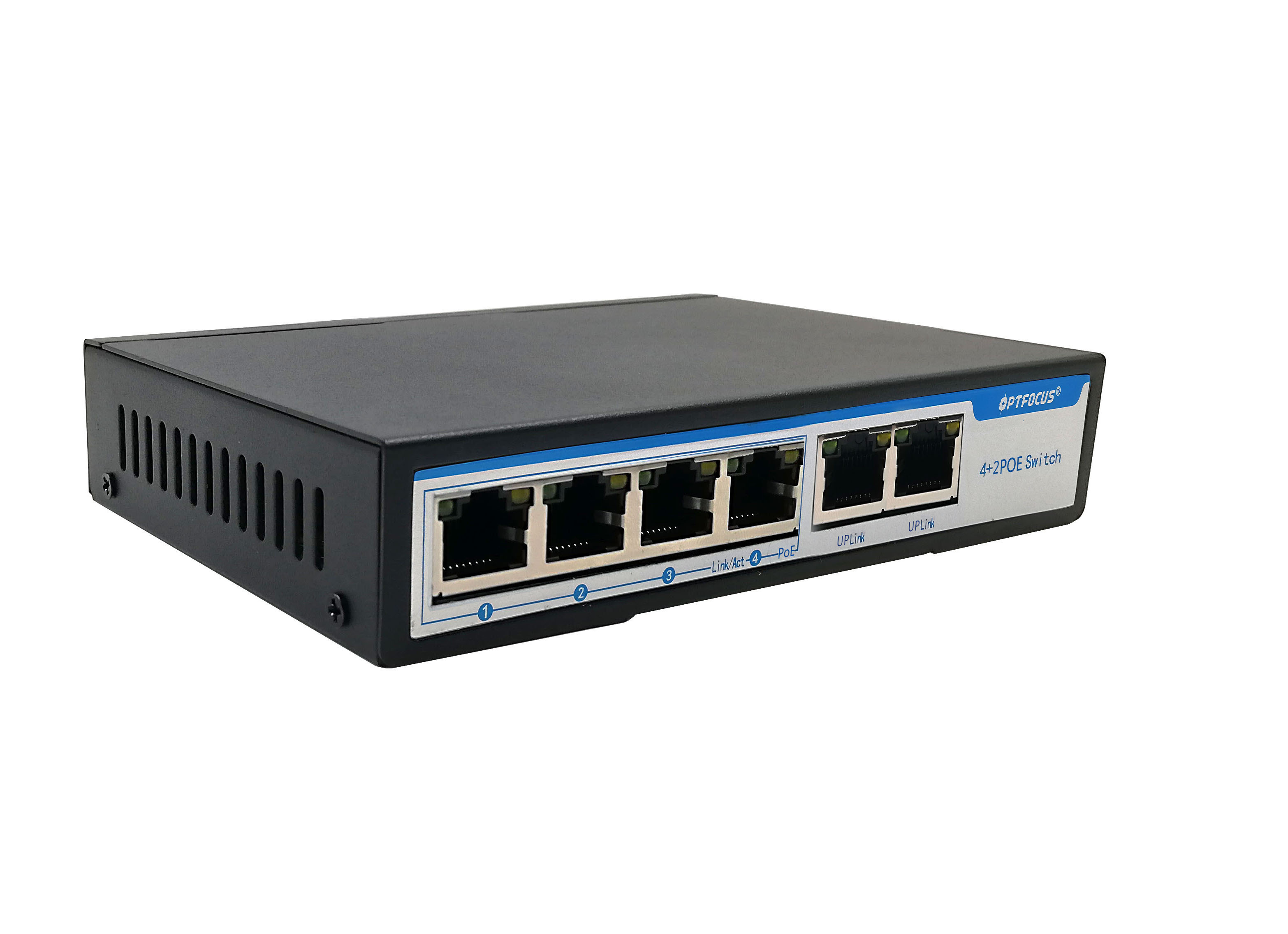

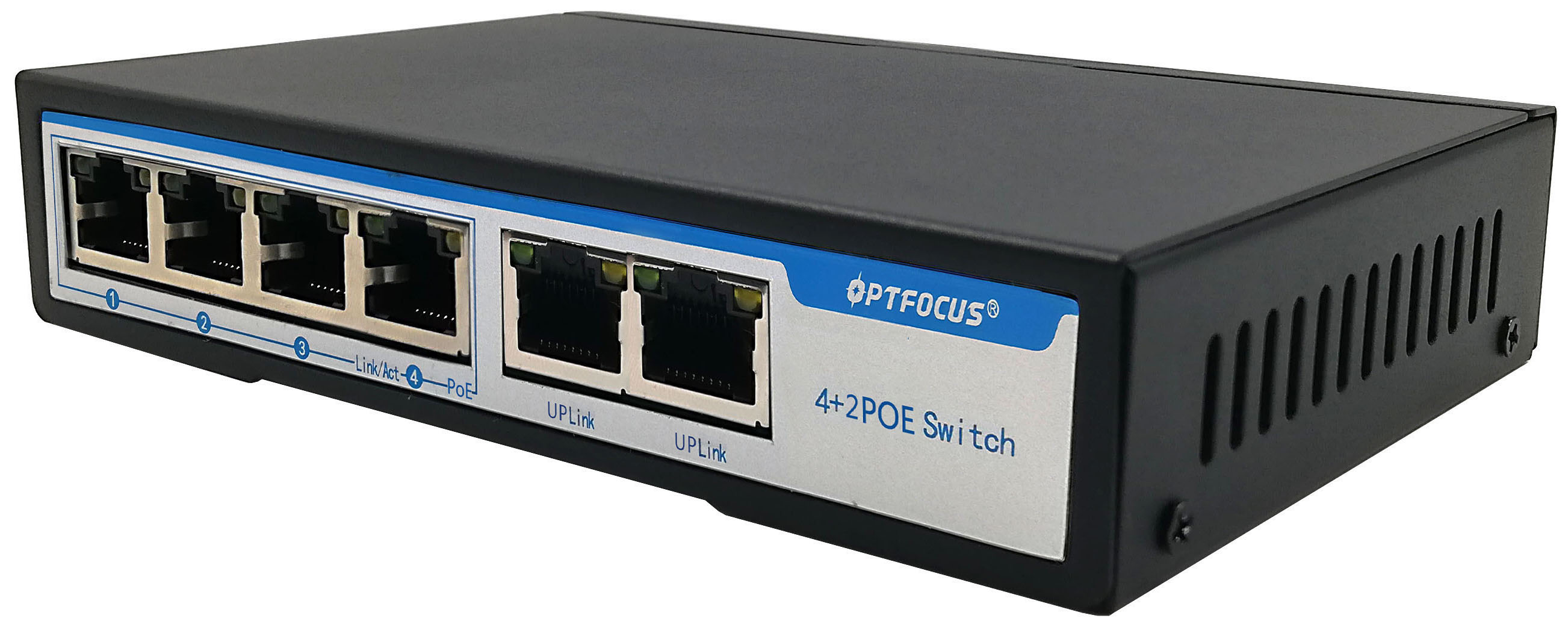

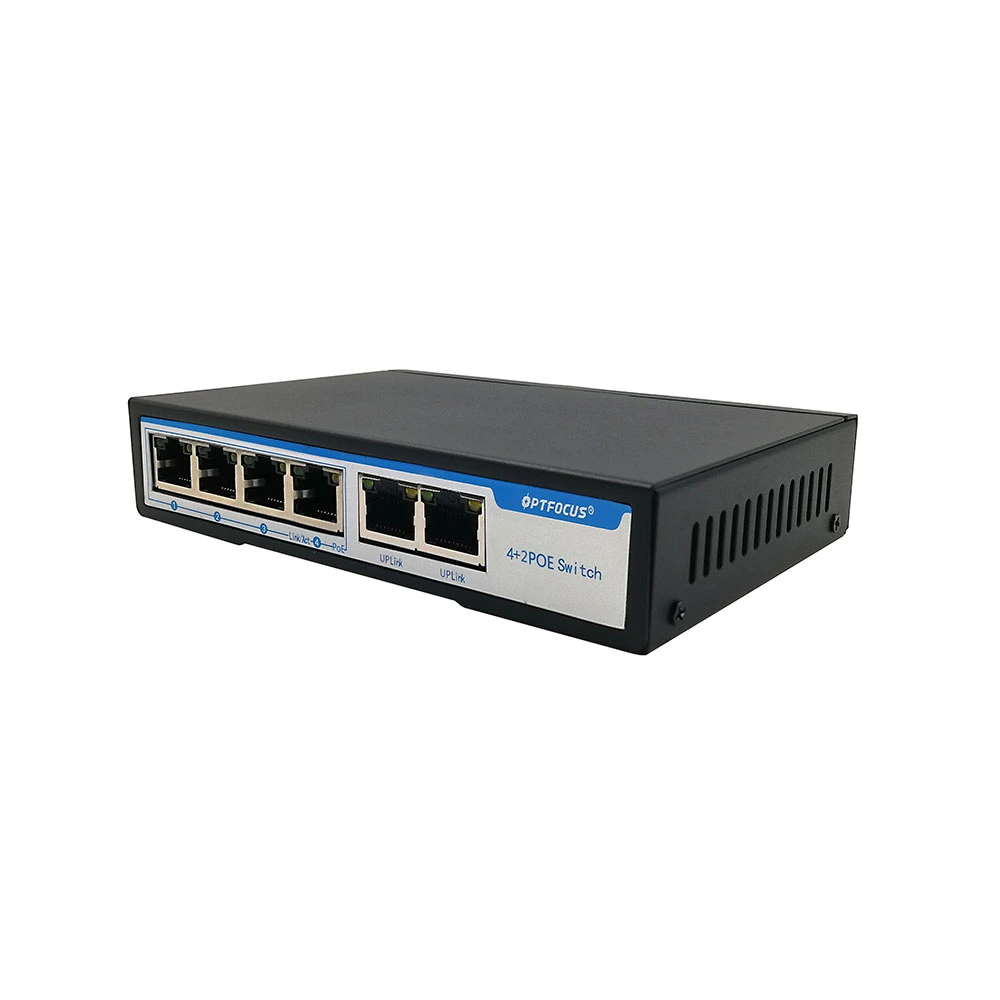

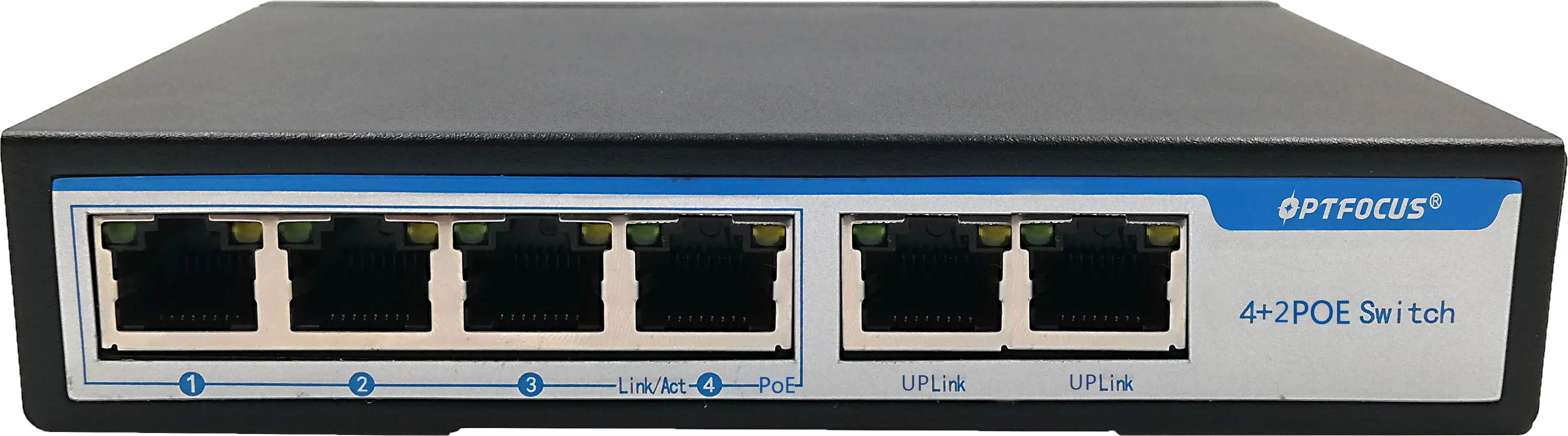

Details Images
Technical Data Sheet:
Product Name | 6-port 10/100Mbps Ports |
Product Model | OFS-PE-DT6 |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3x; |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
Performance Specification | Bandwidth:1.2Gbps |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports: 4 port support PoE | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
PoE port Auto detect AF/AT devices | |
Output Voltage: DC48V | |
Power Pin Assignment:4/5+;7/8- | |
Power Type: End-span( Mid-span optional) | |
Forwarding Mode | Store-and-Forward |
LED Indicators | Power: PWR; Link;POE ; Link/Act |
Power Supply | Input Voltage: DC52V (48~55V) |

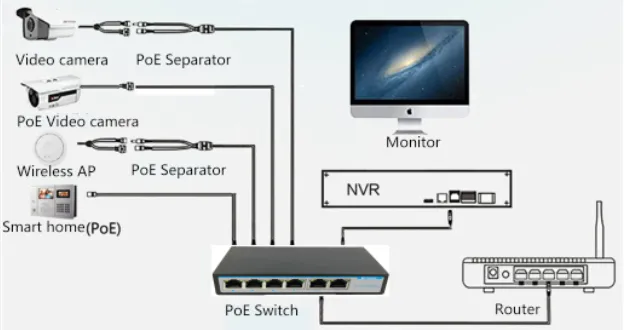

Solution:

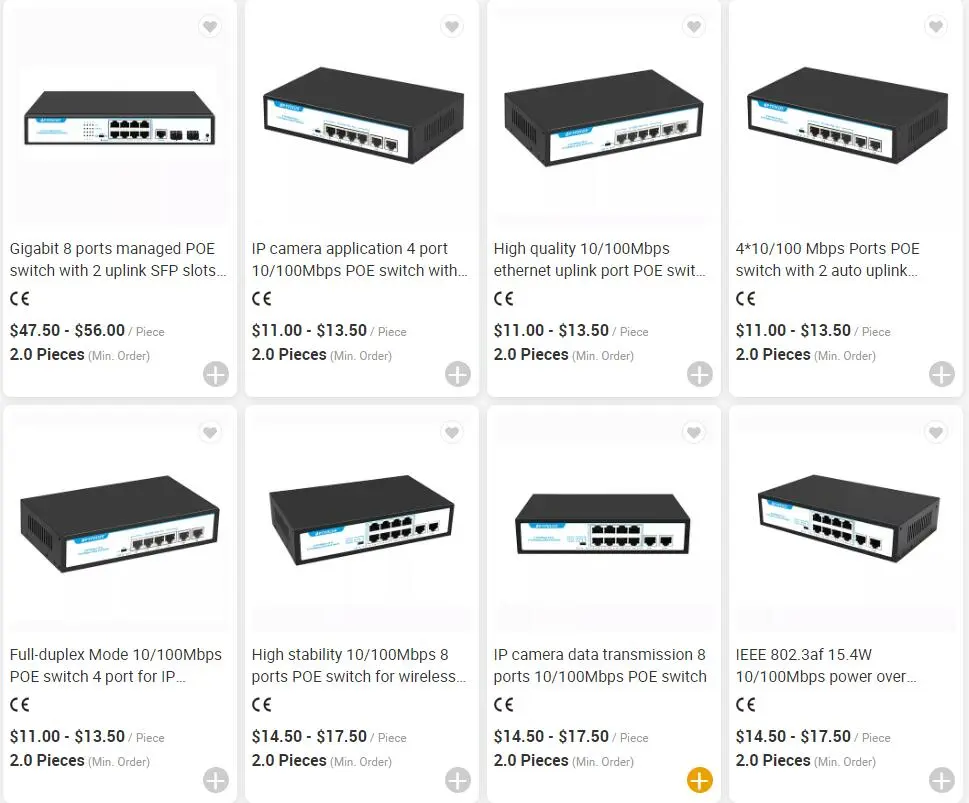

Product You May Also Want To Check:
View of the Company:
Certifications:
Exhibition & Trade Show:

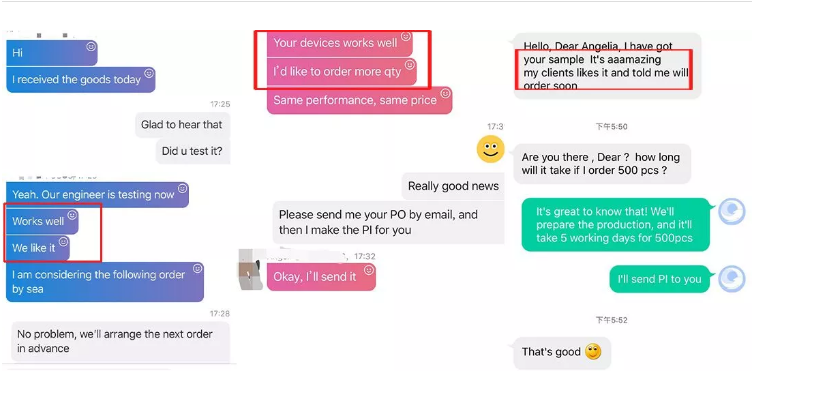

Review From Our Clients:
