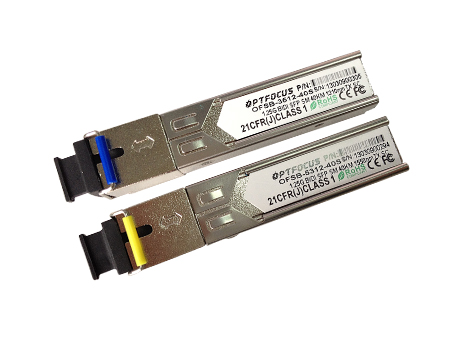

1.25g sfp cwdm optical sfp transceiver FTTH fiber optical equipment
OFSB-3512-20LDB
minimum order
1 piece
Country of Origin
SHENZHEN,GUANGZHOU,HONGKONG
Quantity
- Model Number:OFSB-3512-20LDB
- Type:Fiber Optic Transceivers
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTX
- Warranty Time:1 Year
- Network:boardband
- Keywords:SFP
- Data Rate:1.25Gbps
- Interface:LC
- Wavelength:1310/1550nm
- Working temperature:0~70C
- Distance:20km
- DDM:With
- Fiber Type:Bi-di
- Warranty:12 Months
- Certification:ce
Product Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Specification
Parameter | Range | Unit | Accuracy | Calibration |
Temperature | 0 to +70 | °C | ±3°C | Internal / External |
Voltage | 3.0 to 3.6 | V | ±3% | Internal / External |
Bias Current | 0 to 100 | mA | ±10% | Internal / External |
TX Power | -9 to -3 | dBm | ±3dB | Internal / External |
RX Power | -23 to -3 | dBm | ±3dB | Internal / External |
Packing & Delivery
Each product is packed in a high quality PE bag, Then put into a box or carton.
Company Profile
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines. Advantage of our company : 1 National High-tech enterprise certification; 2 Fiber Optical Innovative &production team Over 10 years; 3 Fiber optical active and passive components production Workshop; 4 Strict quality management system; 5 Professional One stop supply & service; 6 OEM&ODM available; 7 Reliable and Timely customer services;
FAQ
1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switch,GPON ONU,EPON ONU
4. How many days can shipment after ordered?
We are a 12 years manufacturer specialize in fiber optic communication equipment
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Switch,GPON ONU,EPON ONU
4. How many days can shipment after ordered?
According to the quantity you order, we will reply you the shipment day
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
