gigabit single core fiber optic cable poe media converter for IP Cameras
- Model Number:OFS-PE-GAS-1
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Fiber port:1000M SFP slot
- Fiber Type:Multi-model
- Distance:1 km
- Material:Steel
- Forwarding Mode:Store-and-Forward
- Working temperature:-10~55℃
- Product size:93mm* 70mm* 26mm
- Warranty:1 Year
OFS-PE-GAS-1
1port1000MPSE + 1port 1000M MM 1KMSFPFiberMedia Converter
Description:
OFS-PE-GAS-1 series Media Converter are 10/100/1000/1000Base T/TX to 1000Base FX.More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well.The best data link and power sourcing solution for long reach network equipment.
Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af/at standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.
Technical Specifications
Product Name | 10/100/1000M PoE Media Converter |
Product Model | OFS-PE-GAS-1 |
Interface | 1x10/100/1000Base-T port + 1x 1000MbpsSFP |
standard | IEEE802.3i 100BASE-T IEEE802.3u 1000BASE-TX IEEE 802.3 100Base-T IEEE 802.3u 1000Base-TX |
Forwarding Mode | Store-and-Forward |
LED Indicators | Power: PWR; Link: Link/Act;PoE |
PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
PoE ports: 2 port support PoE | |
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) | |
PoE port Auto detect AF/AT devices | |
Output Voltage: DC48V | |
Power Pin Assignment:4/5+;7/8- | |
Power Supply | Input Voltage: DC52V (48~55V) |
Power | 3W(When the PD device is not connected) |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
100BASE-TX: Cat5 or later UTP(≤100 meter), | |
1000BASE-TX: Cat6 or later UTP(≤100 meter), | |
Fiber Media | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
Forwarding Rate: | 1488000pps/port |
Features:
l1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000MbpsSFP
l10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
l1Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
lLED indicators for monitoring power/link/activity
lSupports10/100/1000Mbps-Full/Half-duplex
lSupports Wall-mount and DIN-Rail installation for lightning protection,Optional.
lSupports Broadcast Storm Control
lExcellent heat elimination without cooling fan.
lApply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
lHarsh industrial environment or higher requirement
l -10℃-55℃ operating temperature
Other Specifications:
Working Environment | Working temperature: -10~55℃ ; Storage temperature: -20~75℃ Relative Humidity: 5%~95 %( no condensation) |
Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
Packing List | 1× Media Converter 1×User Manual/Certificate of quality/Warranty card 1×power adapter |
MTBF | 100,000 hours |
Weight & Size | Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 93mm× 70mm× 26mm Packing size(L×W×H): 215mm×138mm×56mm |
Warranty | 1-years |
DIP Switch:
SW1 | ON | Enable Link Fault Pass-Through |
OFF | Disable Link Fault Pass-Through | |
SW2 | ON | Cut-Through(9K) |
OFF | Store and Forward | |
SW3 | ON | Flow control enable |
OFF | Flow control disable | |
SW4 | ON | FX Speed 1000Mbps |
OFF | FX Speed 100Mbps |
Chassis Dimension

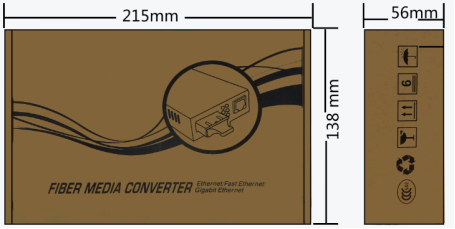

Package Dimension:

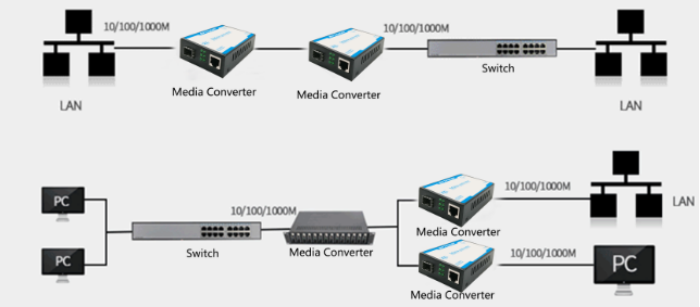

Solutions:
Payment
Certifications

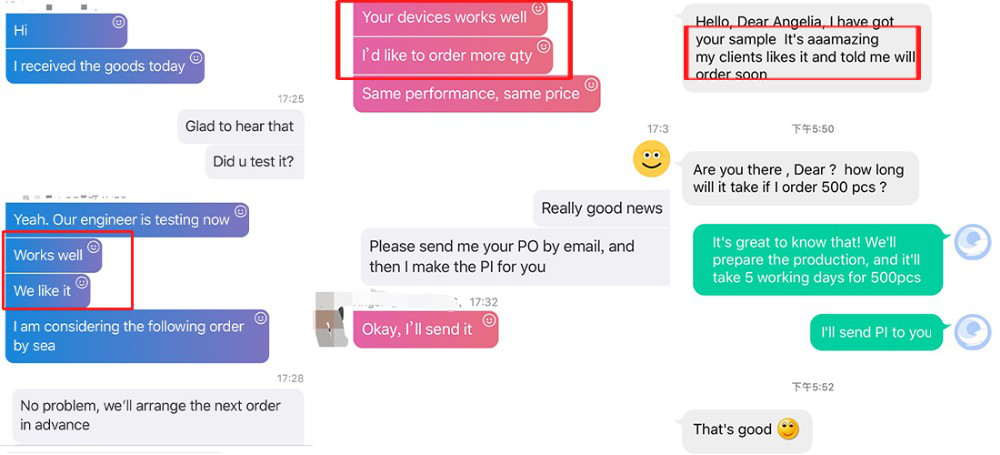

Customer Evaluation
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
If you have any interested in fiber optical products, please feel free to contact me!

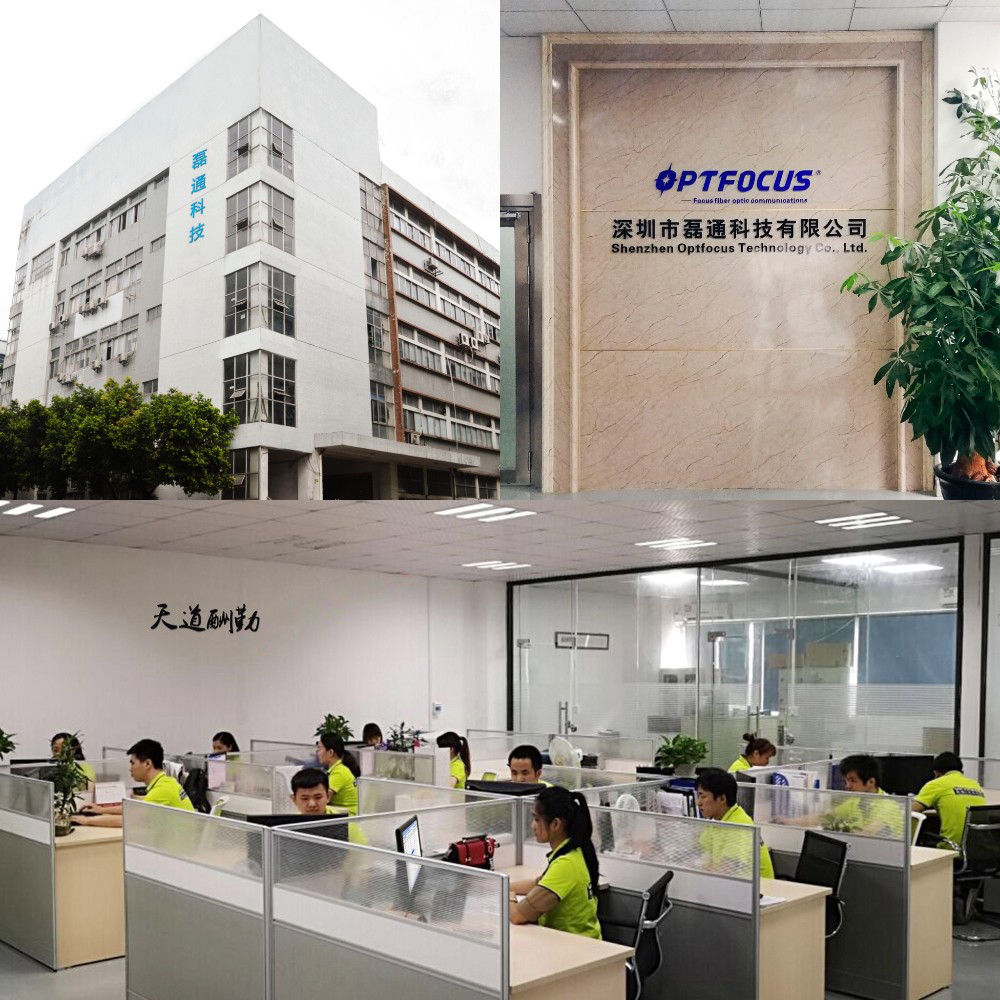

Our Company
