GPON ONU 4 *lan ports + 1 voice ports with WIFI Port English Setup Firmware ONT

OFSX624w

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFSX624w
Type:FTTx Solution
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Use:FTTH
Warranty Time:1 year
Network:Ip
Wavelength:TX 1310nm, RX 1490/1550nm
Optical interface:SC/PC, SC/APC choose
Operating temperature:re: -5~+55℃
Humidity:10~85%(non-condensation)
DC supply interface:input+12V 1A
Weight:0.6Kg
Service:OEM ODM
Certification:ce
Keywords:ONU EPON

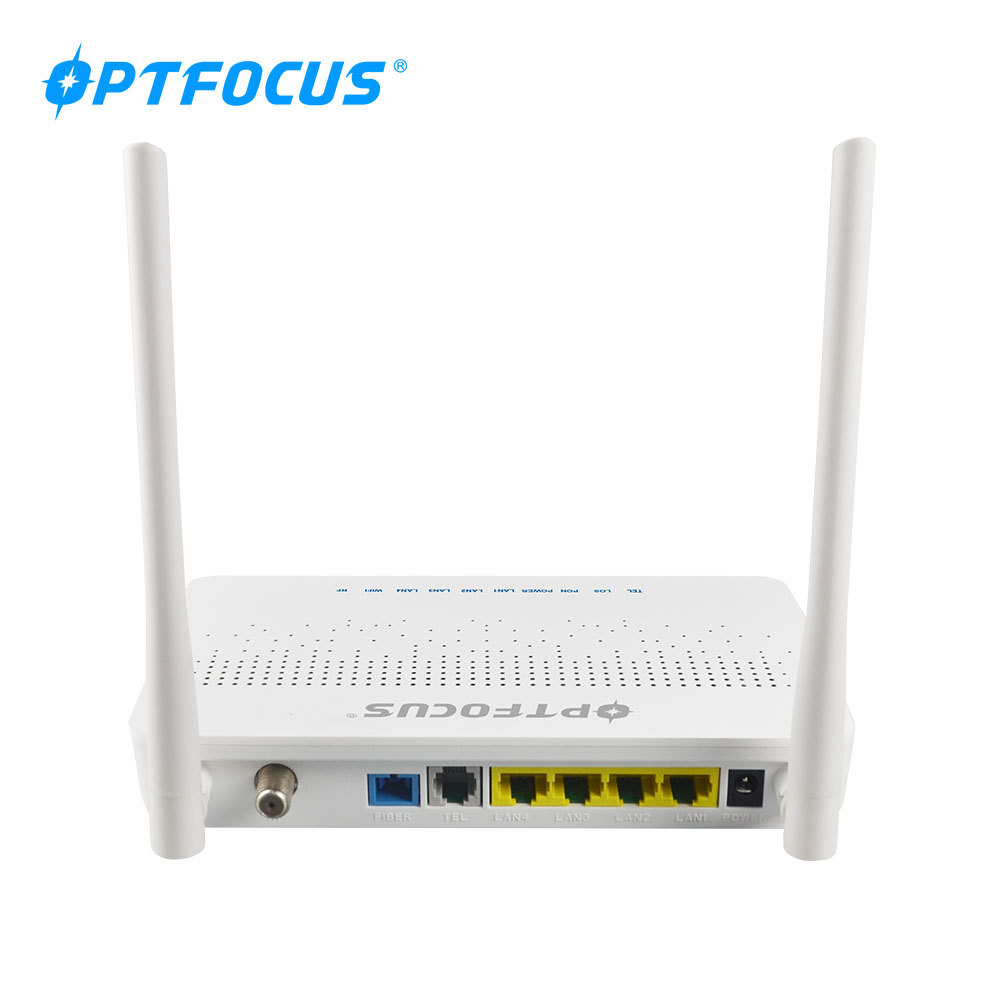

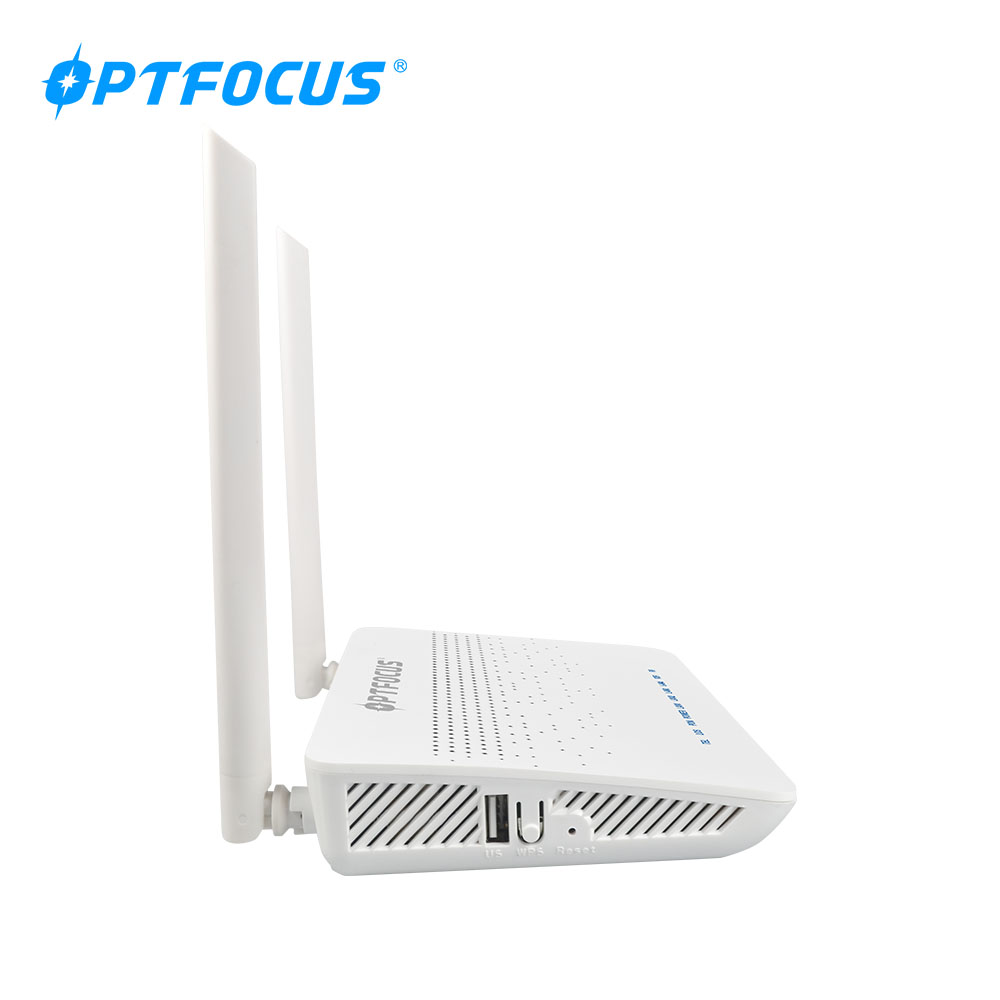

GPON ONU 4 *lan ports + 1 voice ports with WIFI Port English Setup Firmware ONT

Product Description

OFSX624-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

Tech parameters	description
Up-link interface	1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm)	TX 1310nm,RX 1490/1550nm
Fiber connector	SC/UPC connector (SC / APC optional)
Down-link data interface	310/100Mbps and 110/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED	9 pcs
DC supply interface	input+12V 1.5A
Power	≤10W
Operating temperature	-5~+55℃
Humidity	10~85%(non-condensation)
Storage temperature	-30~+70℃
Dimension(MM)	18812535mm(mainframe)
Weight	0.5Kg(mainframe)

CATV Technical features

Tech features	description
Optical wavelength	1540~1560nm
Optical input range	0~-15 DBm
Optical return loss	≥45 DB
Bandwidth	45~1000 MHz
Flatness	1 DB
RF output level	≥72 dBuv
AGC control range	0~-14 DBm
RF Output return loss	≥14 DB
Output impedance	75Ω
CNR	≥50 DB
CTB	≥60 DB
CSO	≥60 DB

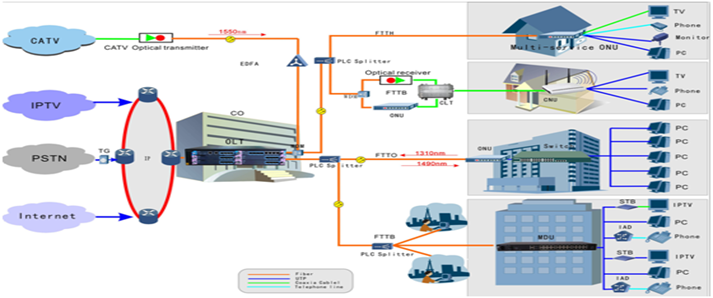

Solution

Packaging & Shipping

Packaging & Shipping

What kind of packaging and shipping do you provide?

Professional Packaging

Fast & Safety Shipping——Worldwide

Standard Export carton

1.Inner: Neutral brown carton or box

2. Outer: Internationally standard package carton or box with several lays and thin plastic film surround the carton or box
