High Quality 1GE+1FE+1FXS+CATV+WIFI gpon EPON ONU WIFI router Modem with wifi and GE ports

OFSG/E624

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFSG/E624
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Wavelength:Tx 1310nm, Rx 1490nm
Optical output power:-1~+4dBm
Receiving sensitivity:<-24dBm
Farthest distance:20km between OLT and ONU
Optical interface:SC/PC connector
Chipset:zte chipset
Operating temp:-5~+45℃
Operating humidity:10~90%
DC power supply:+12V, external AC-DC power adapter
Dimension:195*125*25mm

Contract us

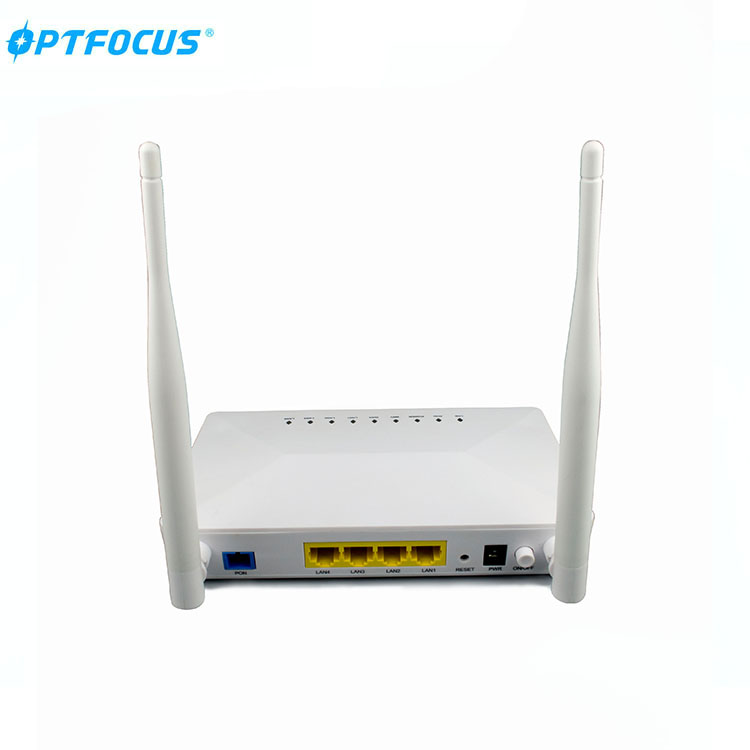

High Quality 1GE+1FE+1FXS+CATV+WIFI gpon EPON ONU WIFI router Modem with wifi and GE ports

Product Description

1GE+3FE+WIFI Ethernet ports EPON ONU for FTTH solution

OFSG624-W ONU is anGPONbroadband terminal device designed for fulfilling FTTx and triple play service demand of cable television operators. This box is basing on the stable and mature GigabitGPON technology, which has high performance/price ratio,The technology of Layer 3 Ethernet switch, and wifi as well. It is highly reliable and easy to maintain, with guaranteed QoS for different service. And it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement ofGPONEquipment (V3.1) .

Technical Specification

Item	Parameter
PON Interface	1GPON interface, SC single-mode/single-fibre,uplink 1.25Gbps, downlink 2.5Gbps
User Ethernet Interface	RJ45Port connects to local internet,1 GE port and 3 FE port automatically,1*WIFI
Power Interface	12V DC Power supply ,An external 12V 0.5A AC/DC power supplyadapter
PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -26dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber
Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet:1 GE port and 3 FE Packet Loss Ratio: <1*10E-12 latency:<1.5ms
Network Management	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
Management Function	Status monitor, Configuration management, Alarm management, Log management
LED Indicator	PWR: Power up or down OPTIN: Optical Link Status LINK:ONU Registered ETH: Link Status of Ethernet Interface LAN:Link Status of Ethernet Interface WIFI: WIFI status
Power	External 12V 1A AC/DC power supply adapter Power consumption: < 12W
Physical Specifications	Item Dimension:180mm(L) x 120mm(W) x27mm (H) Item weight:0.2kg
Environmental Specifications	Operating temperature: 0 to 50ºC Storage temperature: -40 to 85ºC Operating humidity: 10% to 90%(Non-condensing) Storage humidity: 5% to 95%(Non-condensing)

Feature:

lSupport port-based rate limitation and bandwidth control;

lIn compliant with IEEE802.3ah Standard

lUp to 20KM transmission Distance

lSupport data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.

lSupport Dynamic Bandwidth Allocation (DBA)

lSupport ONU auto-discovery/Link detection/remote upgrade of software;

lSupport VLAN division and user separation to avoid broadcast storm;

lSupport power-off alarm function ,easy for link problem detection

lSupport broadcasting storm resistance function

lSupport port isolation between different ports

lSupport ACL and SNMP to configure data packet filter flexibly

lSpecialized design for system breakdown prevention to maintain stable system

lSupport software online upgrading

lEMS network management based on SNMP ,convenient for maintenance

Packaging & Shipping

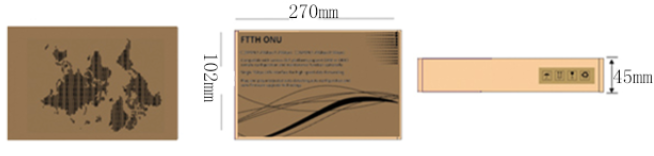

Packing: 1 pcs/box

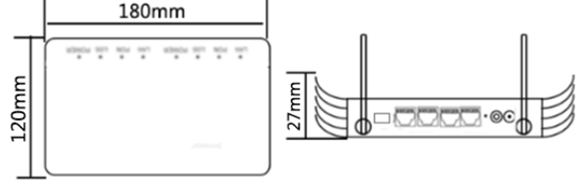

Chassis Dimension:

Certifications
