Compatible Huawei Zte dahua hik IEEE 802.3u 10/100/1000Base-TX netlink de fibr de convertidor htb 3100 converter
OFS-GWS03A/B
minimum order
1 piece
Country of Origin
Shenzhen, China
Quantity
- Model Number:OFS-GWS03A/B
- Type:10/100/1000Mbps
- Brand Name:OPTFOCUS
- Use:Optic Comunication
- Warranty Time:1 years
- Product name:10/100/1000M Media Converter
- Connector:Fiber: 1* 1000Mbps
- Forwarding Mode:Store-and-Forward
- Forwarding Rate:1488000pps/port
- Operating standard:IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
- Power:External
- Power consumption:2.5W
- LED:Power,Link/Act, TX 1000,100,FDX, Link/Act.
- KEYWORDS:netlink de fibr de convertidor
- Single-Mode Fiber:YES
- Multi-Mode Fiber:NO
- No. of Fiber:1
- Application:Optic Comunication
- Power Input:5V
- Max Capacity:10/100/1000Mbps
Product Description
netlink de fibr de convertidor

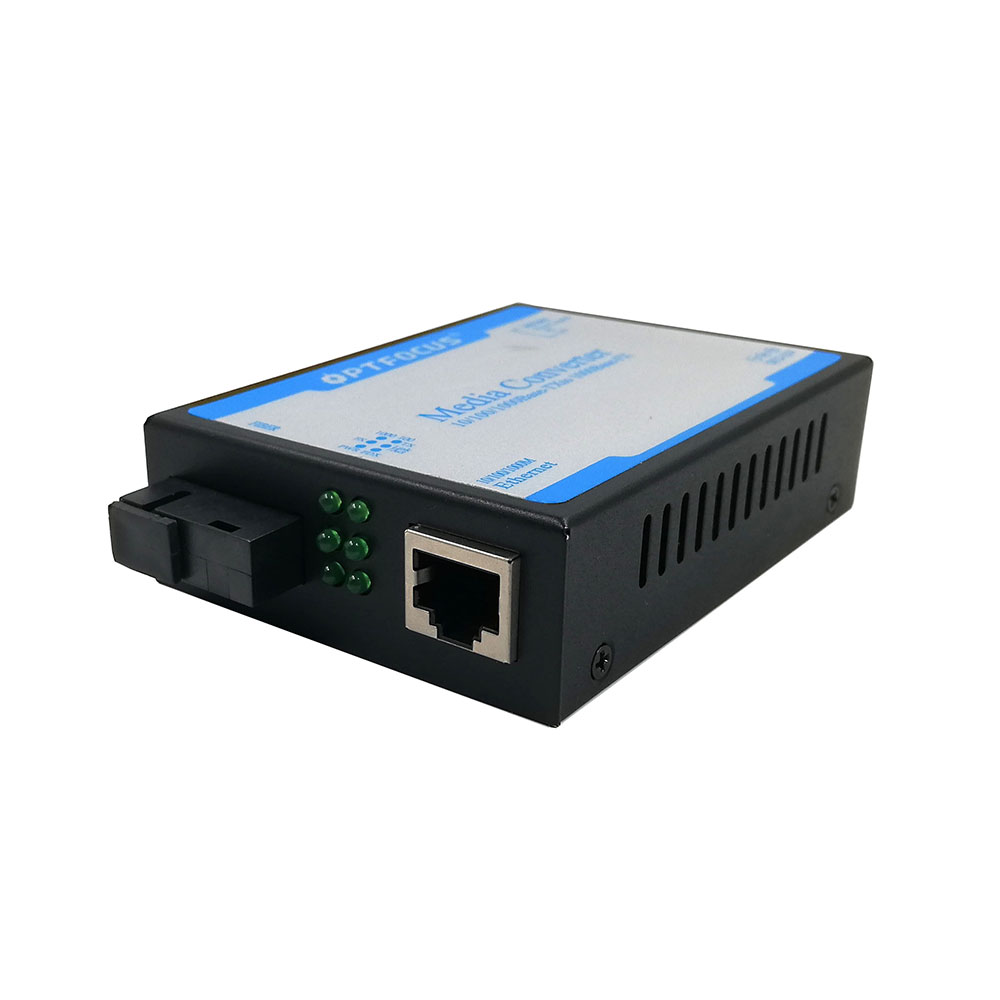

OFS-GWS03A/B Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100/1000MUTP interface (TX) and 1000M Fiber interface (FX). The traditional 10/100/1000M Fast Ethernet can be extended to the distance of 3km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Groups LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The converters can be used as a stand-alone unit or as a slide-in module to the Media Converter Chassis, RACK-14. As the other
OFS-Series media converters, they're hot swappable in MC-Chassis.
OFS-Series media converters, they're hot swappable in MC-Chassis.
Specification
Product Name | 10/100/1000M Media Converter |
Product Model | OFS-GWS03A/B |
Connector | Fiber: 1* 1000Mbps |
RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X | |
Fiber port | LC,SC,ST,FC Optional |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm（the max distance up to 2km） Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm（the max distance up to 120km） |
Forwarding Mode | Store-and-Forward |
Forwarding Rate | 1488000pps/port |
Operating standard | EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
Power | Input:AC 110~240VOutput:DC 5V（default） |
Power consumption | 2.5W |
LED | Power,Link/Act, TX 1000、100、FDX、 Link/Act. |
Working Environment | Working temperature: 0～55℃ ; Storage temperature: -20～75℃ Relative Humidity: 5%~95 %( no condensation) |

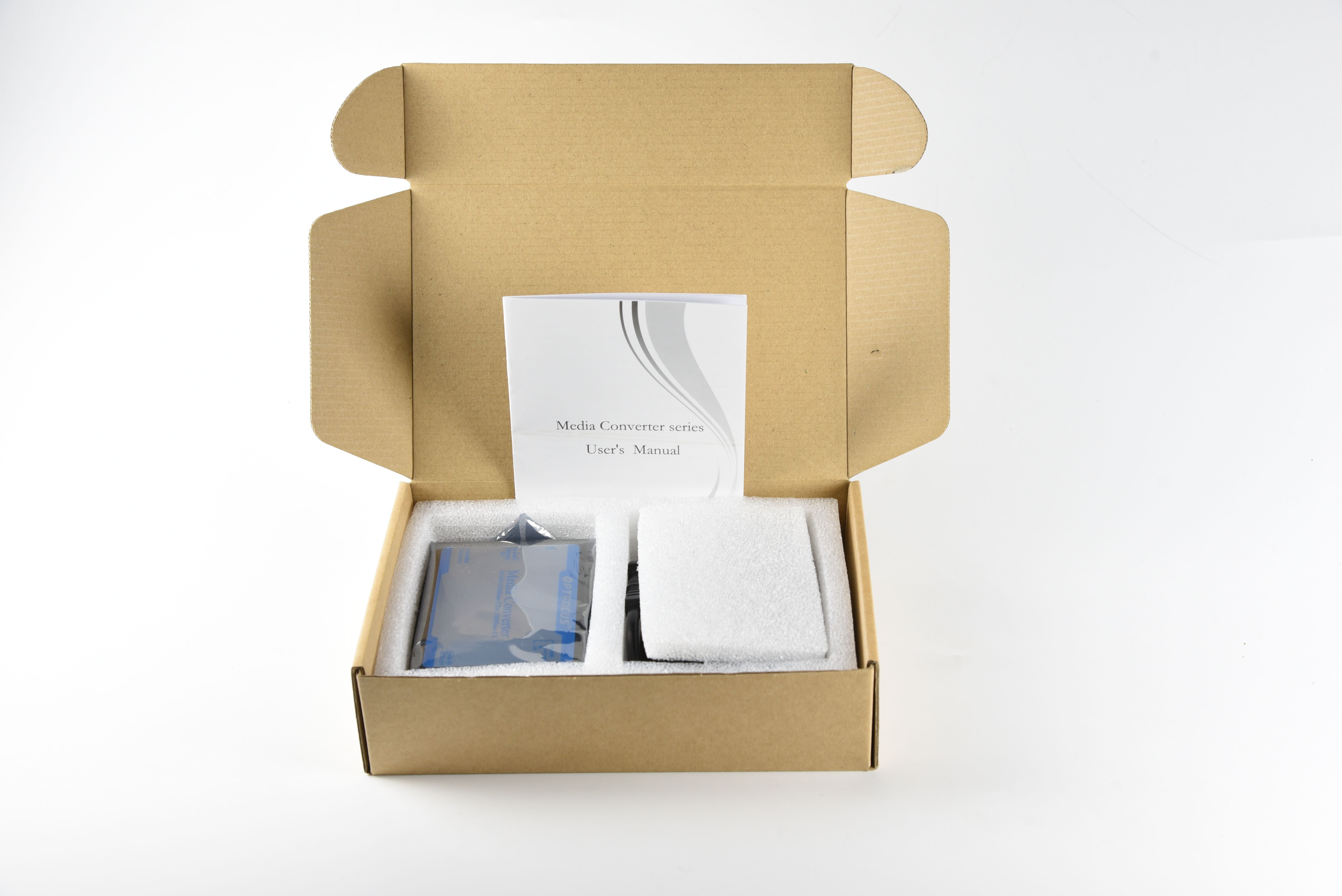

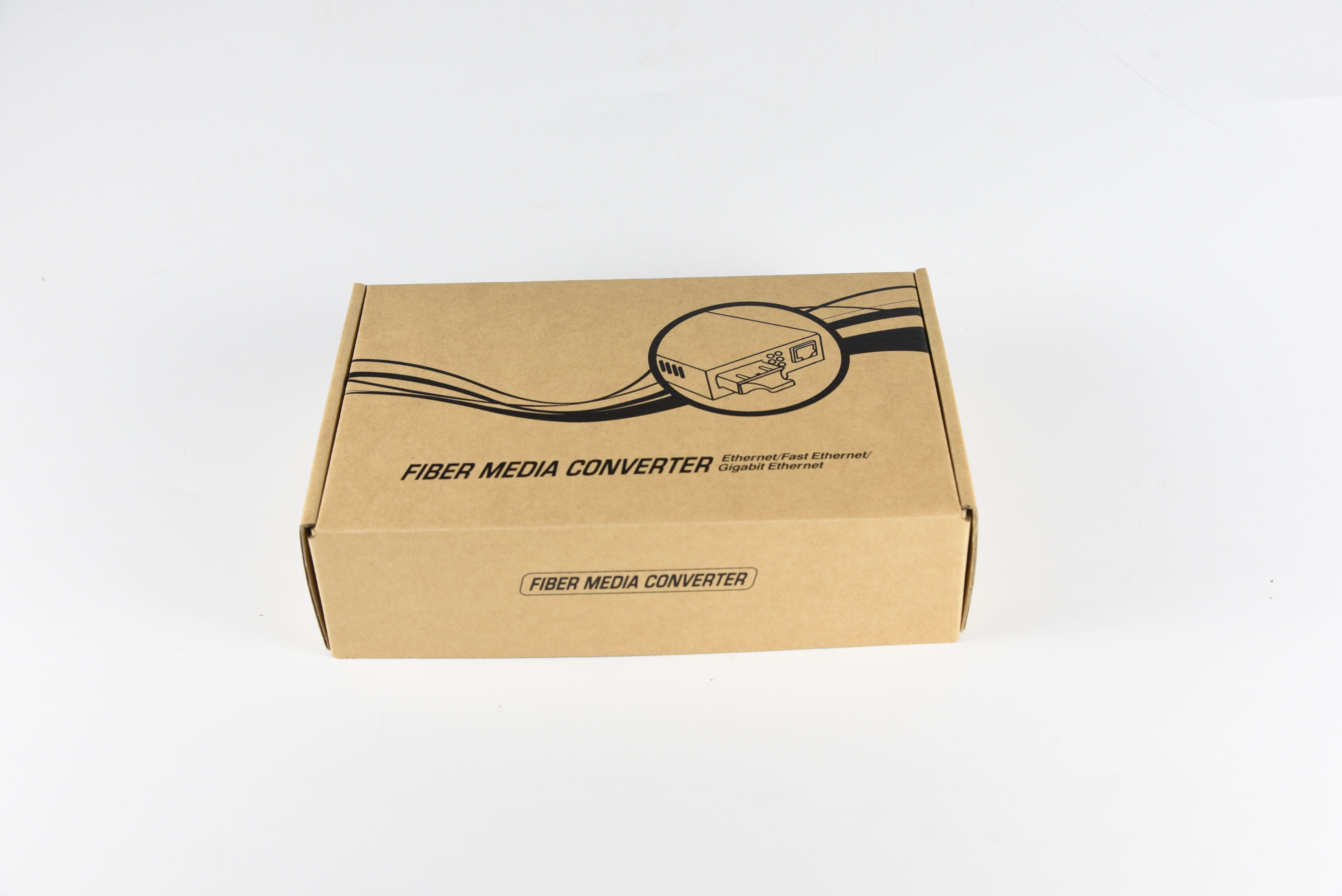

Packing & Delivery
Certifications
Recommend Products
Company Profile
Shenzhen OPTFOCUS Technology Co., Ltd
was established in 2009, which is a High -tech manufacturer enterprise with 11 years’
experience in global sales and services.
Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling
system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom
Operators and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win more market and customers.
experience in global sales and services.
Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling
system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom
Operators and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win more market and customers.
Customer Comments
