new design 1ge+3fe+wifi BOSA APC UPC 4 port ont EPON ONU wifi tv
- Model Number:OFSX624-CWU
- Type:FTTx Solutions
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTH
- Fiber Connector:Sc/APC( or SC/UPC optional)
- DC Supply Interface:Input +12V 0.5A
- Weight:0.5kg
- Humidity:10~85%(Non-Condensation)
- Compatibility:Mianstream Brand
- Wavelength(Nm):Tx 1310nm, Rx 1490nm
- Packing:20*15*8CM/0.5KG
- Chipset:RTL
- Warranty:2 Years
- keywords:epon onu wifi tv
- No. of Fiber:1

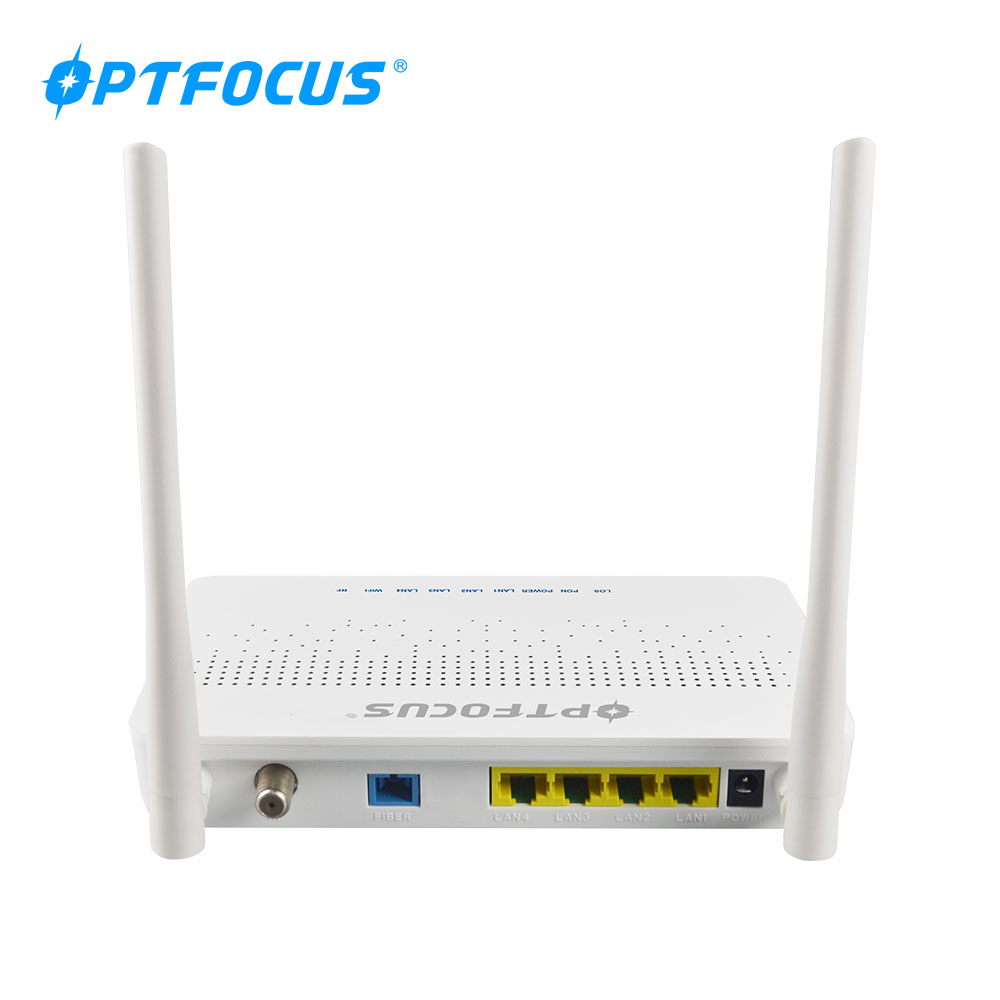

new design 1ge+3fe+wifi BOSA APC UPC 4 port ont EPON ONU wifi tv
OFSX624-CWU
1GE+3FE Ethernet ports with Wifi USB WDM CATV XPON ONU for FTTH solution
Description:
OFSX624-CWU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Basic Characteristics
| Tech parameters | description | |
| Up-link interface |
Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism | |
| Wavelength(nm) | TX 1310nm,RX 1490nm | |
| Fiber connector | SC/UPC connector(SC / APC optional) | |
| Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface | |
| Indicator LED | 9 pcs | |
| DC supply interface | input+12V 1A | |
| Power | ≤7W | |
| Operating temperature | -5~+55℃ | |
| Humidity | 10~85%(non-condensation) | |
| Storage temperature | -30~+70℃ | |
| Dimension(MM) | 188*125*35mm(mainframe) | |
| Weight | 0.5Kg(mainframe) |
WIFI CHARACTERISTICS
| Tech Features | Description |
| Antenna | 2T2R Mode 5DBI GAIN, frequency:2.4G |
| Rate | 300Mbps PHY rate |
| Encryption | WFA, WPA, WPA2, WAPI |
CATV TECHNICAL FEATURES:
| Tech features | Description |
| Optical Wavelength | 1540~1560nm |
| Optical input range | 0~-15DBm |
| Optical return loss | above 45 DB |
| Bandwidth | 45~1000MHz |
| Flatness | +- 1 DB |
| RF output level | ≥72 dBuv |
| AGC control range | 0~-14 DBm |
| RF Output return loss | ≥14 DB |
| Output impedance | 75Ω |
| CNR | ≥50 DB |
| CTB | ≥60 DB |
| CSO | ≥60 DB |
lPlug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
lCompletely compatible with both GPON and EPON automatically.
lSupport triple churning encryption request
lSupport the remote upgrade and download
lSupport status detection and fault report
lSupportTR069
lSupport to configure the work mode at the user port
lSupport MDI-MDIX automatic-detection at the user port.
lSupport data encryption and decryption
lSupport access authentication based on serial number
lSupport access authentication based on MAC address
lSupport 802.1Q VLAN
lSupport rich QinQ VLAN functions and IGMP Snooping
lSupport traffic rule to modify the related priority.
lSupport the remote reset and reboot
lSupport dying gasp outage alarm
lFully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
