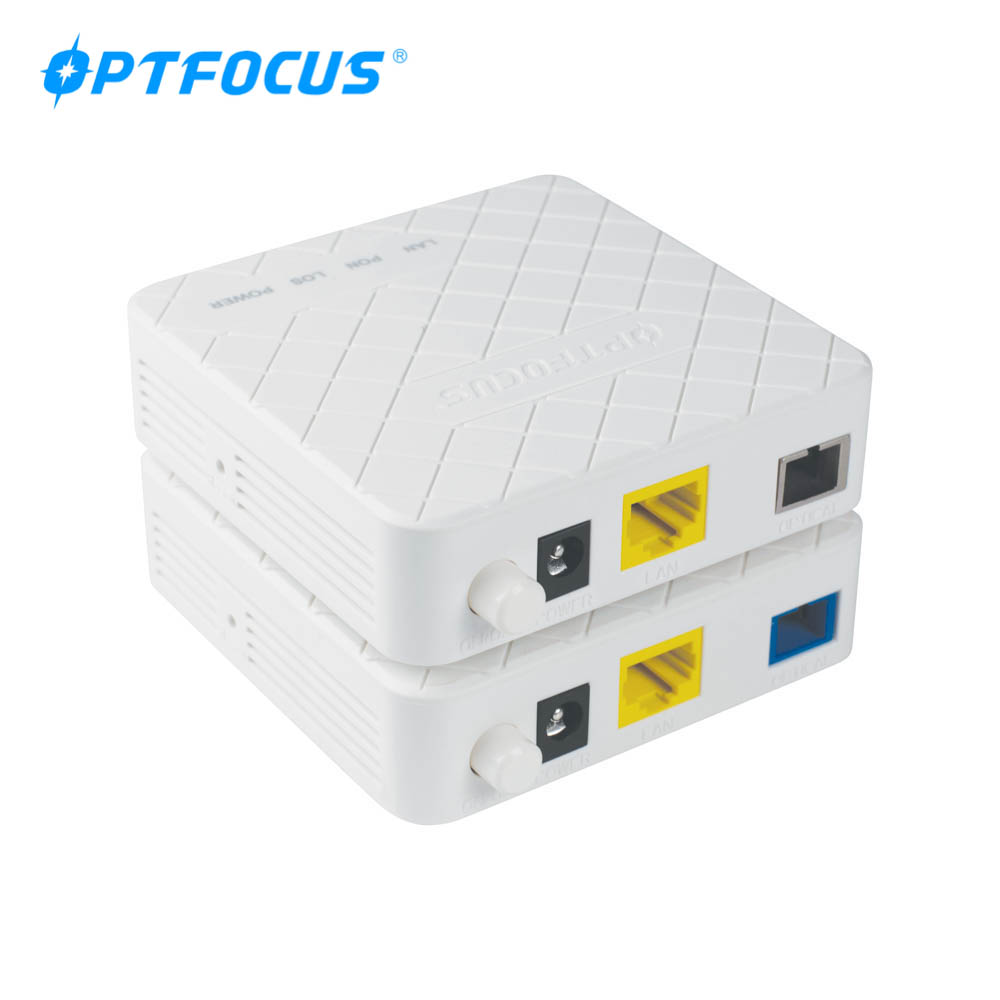

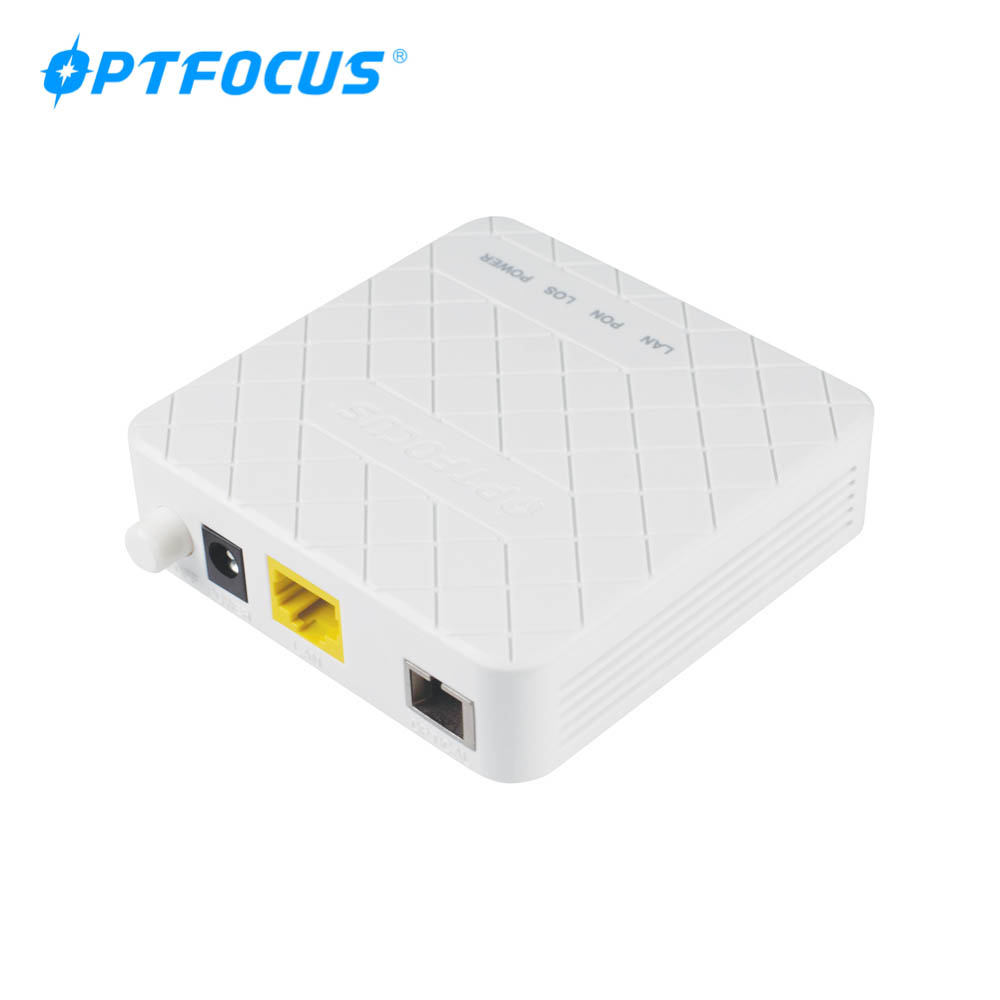

Good price 1ge epon onu 1.25g 1port epon gpon gepon olt ont compatible with fiberhome/zte/huawei

OFSX711

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFSX711
Type:ONU
Place of Origin:Guangdong, China
Brand Name:Optfocus
Use:Fiber optical equipment
Warranty Time:1 year
Network:Wireless Lan, Wired LAN
Type::FTTx Solutions
Use::FTTH

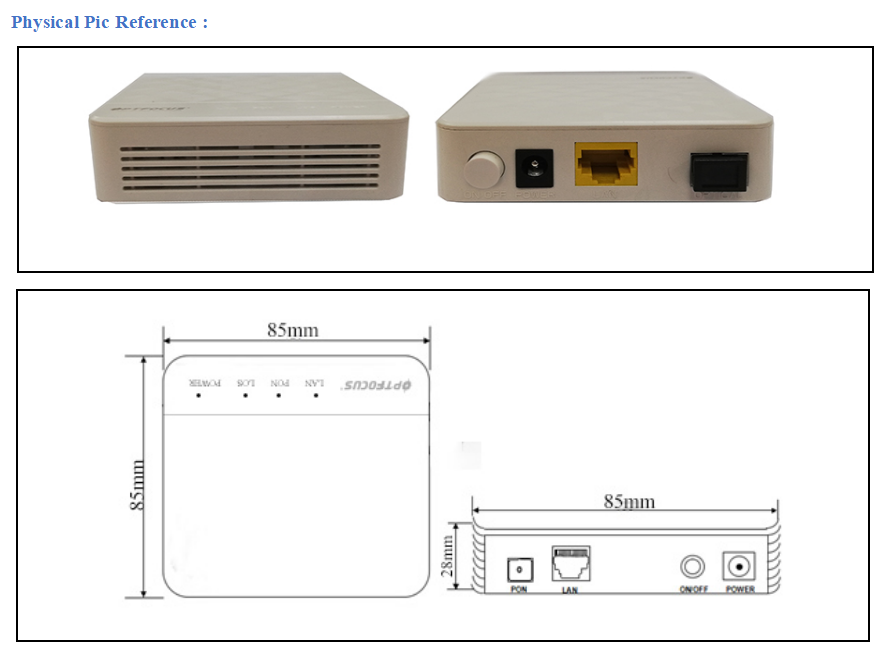

Dimensions::85*85*28mm (mainframe)
Uplink::1*PON interface
Compatible::Most brands OLT
Operating temperature::-5~+55℃
Wavelength::Tx 1310nm, Rx 1490nm
Transmission Distance::20km from OLT
Chipset::ZTE
Keywords::GPON EPON XPON ONT/ONU

Good price 1ge epon onu 1.25g 1port epon gpon gepon olt ont compatible with fiberhome/zte/huawei

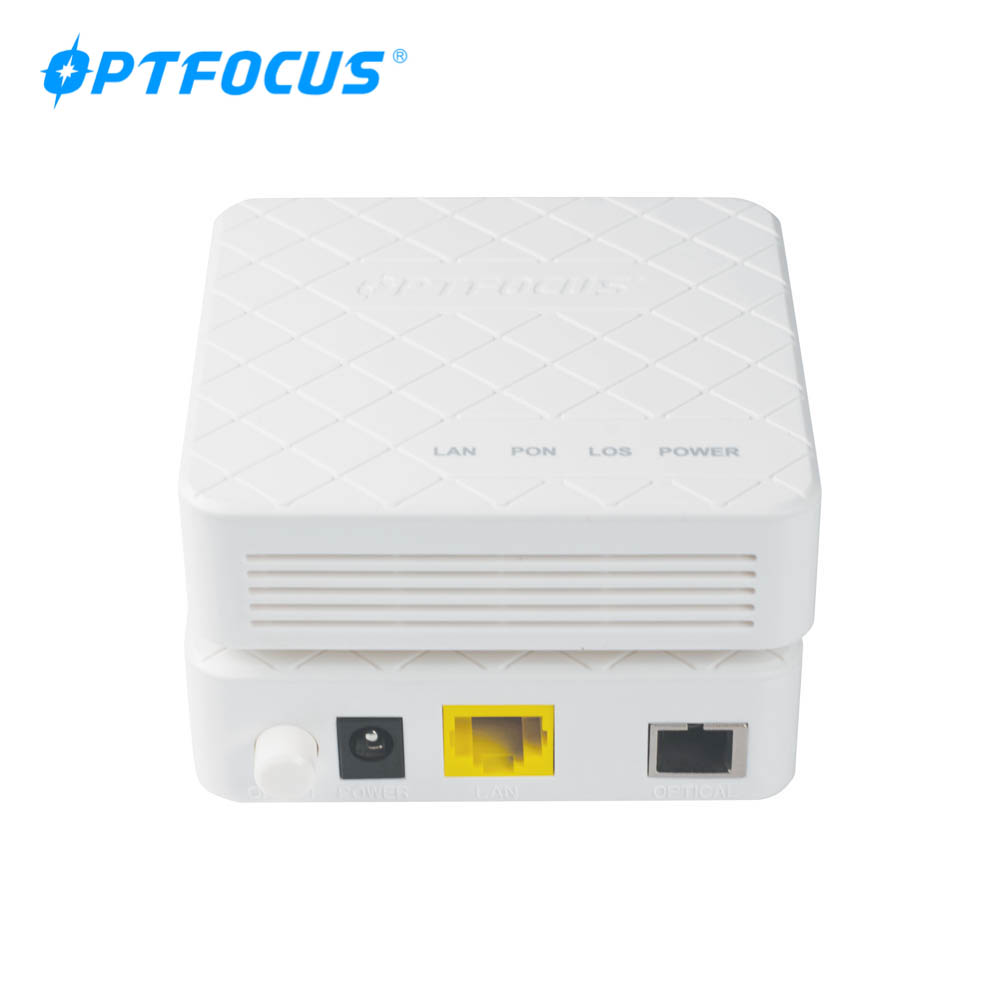

OFSX7111GE Ethernet ports XPON ONU for FTTH solution

Description:

OFSX711 XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

Basic Characteristics:

Tech parameters	description
Up-link interface	1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm)	TX 1310nm,RX 1490nm
Fiber connector	SC/UPC connector(SC / APC optional)

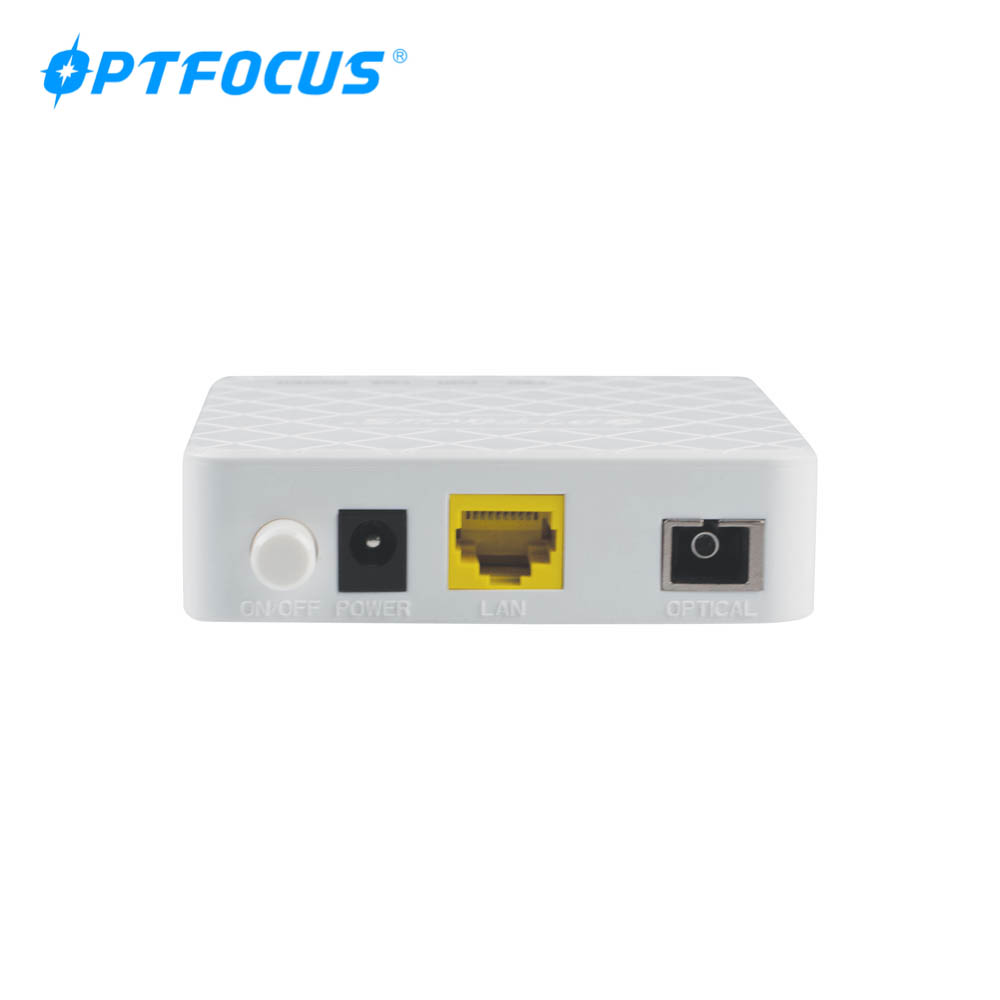

Down-link data interface	1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED	4 pcs
DC supply interface	input+12V 0.5A
Power	≤5W
Operating temperature	-5~+55℃
Humidity	5~95%(non-condensation)
Storage temperature	-30~+70℃
Dimension(MM)	12510328mm(mainframe)
Weight	0.24Kg(mainframe)

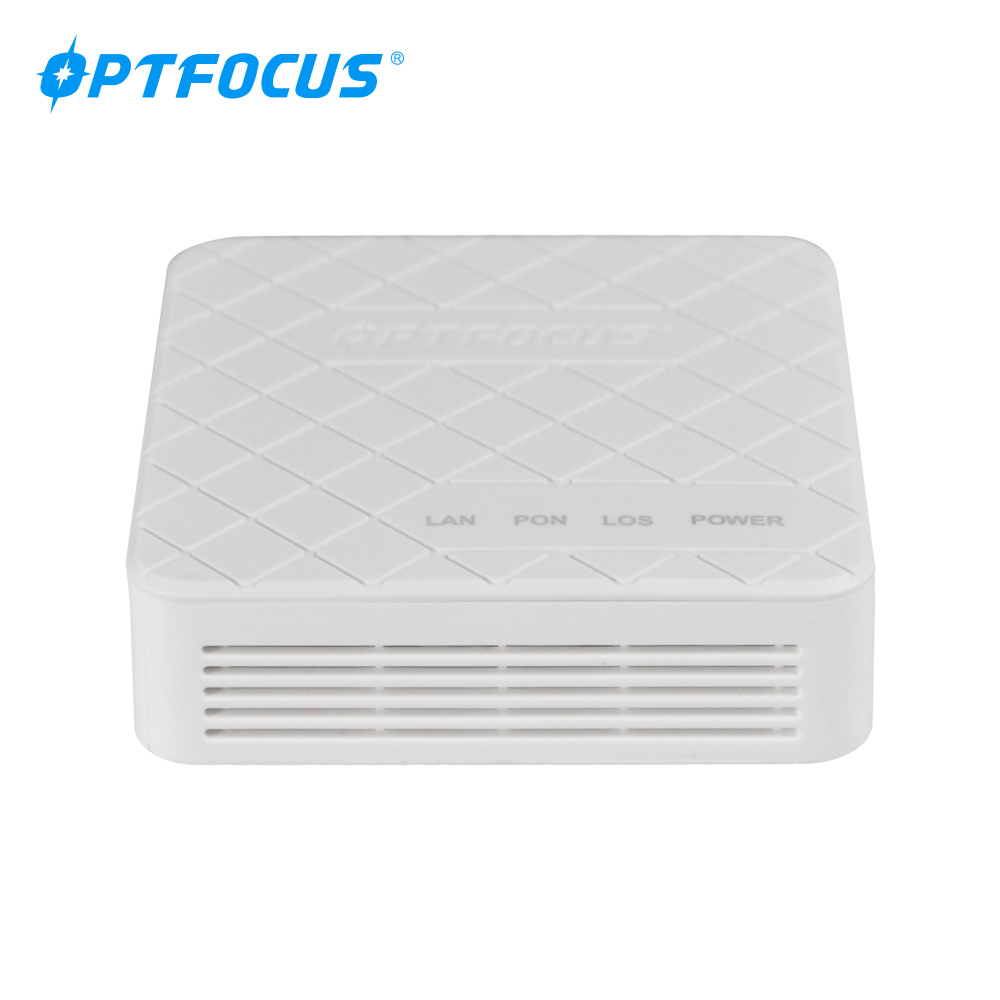

Definition of indicator LED:

symbol	color	meaning
PWR	green	ON:successfully connect with power OFF:fail to connect with power
PON	green	ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty
LAN	green	ON: Link up correctly Flicker: data is transmitting OFF: link down faulty
LOS	red	Flicker: fail to connect with PON port OFF: detected fiber to input

Feature:

lPlug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

lCompletely compatible with GPON international standard IEEE802.3ah/802.3-2005

lSupport China Telecom GPON CTC3.1 standard and expand OAM

lSupport DBA reporting mechanism request

lSupport OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah

lSupport to save configured parameters if power down

lSupport to configure the work mode at the user port

lSupport MDI-MDIX automatic-detection at the user port.

lSupport access authentication based on serial number

lSupport access authentication based on MAC address

lSupport 802.1Q VLAN

lSupport traffic rule to modify the related priority.

lSupport to restore the factory settings

lSupport the remote reset and reboot

lSupport dying gasp outage alarm

lFully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
