LTE-3680P-BC+ BH+ similar brand compatible PON SFP gepon gpon modules
OFS-OLT-ESPX20+++
minimum order
1 piece
Country of Origin
shenzhen
Quantity
- Model Number:OFS-OLT-ESPX20+++
- Type:Fiber Optic Transceivers
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTH, FTTX
- Warranty Time:1 Year
- Network:Wired LAN
- Product name:PON SFP
- Class:PX20+++
- Wavelength:TX1490/RX1310nm
- Connector Type:SC UPC
- Application:FTTX
- Frequency:1.25G
- Certification:RoHS-6, ce
- No. of Fiber:2
Product Description
OFS-OLT-ESPX20+++
GEPON OLT SFP/Tx1490/Rx1310/20km/Tx1.25G/Rx1.25G/PX20+++/0~70°C/SC Receptacle

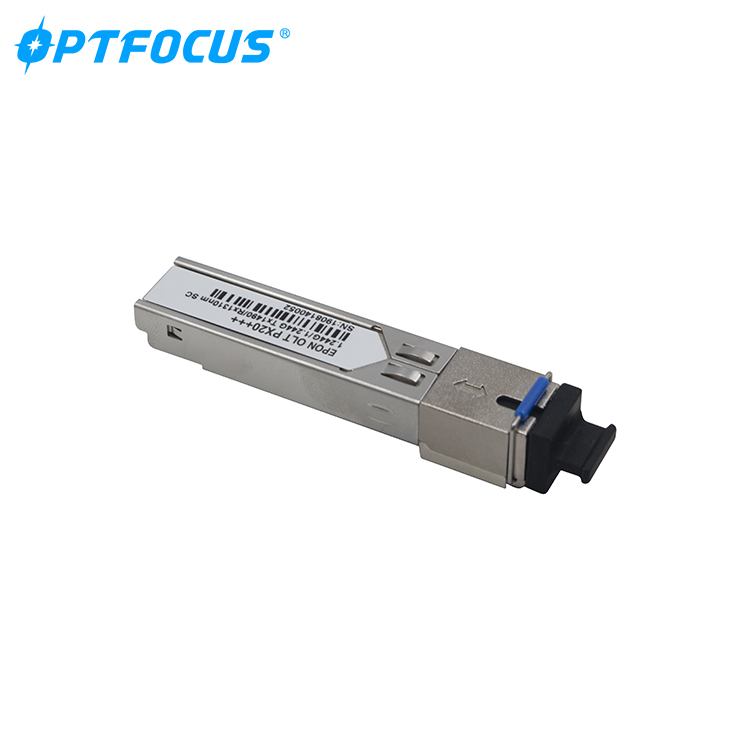

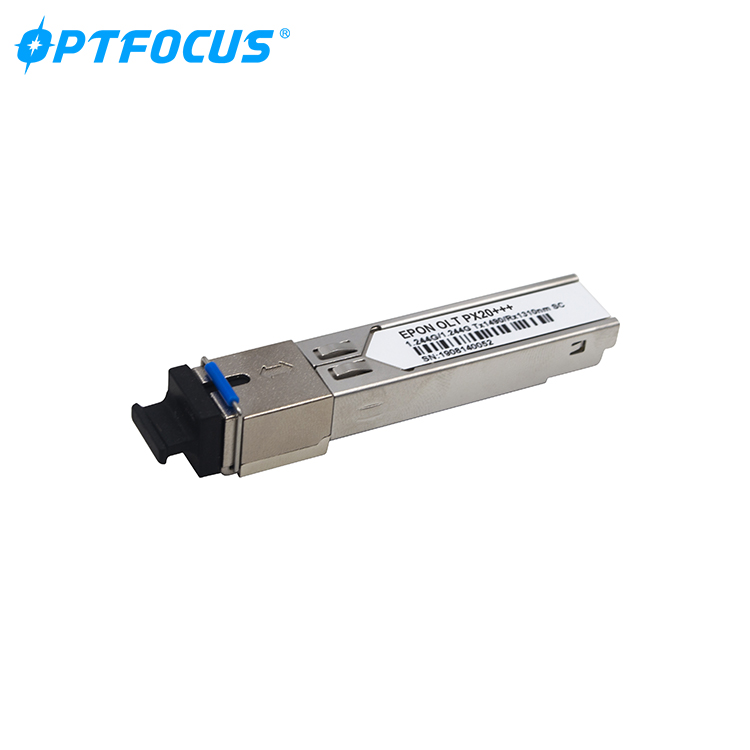

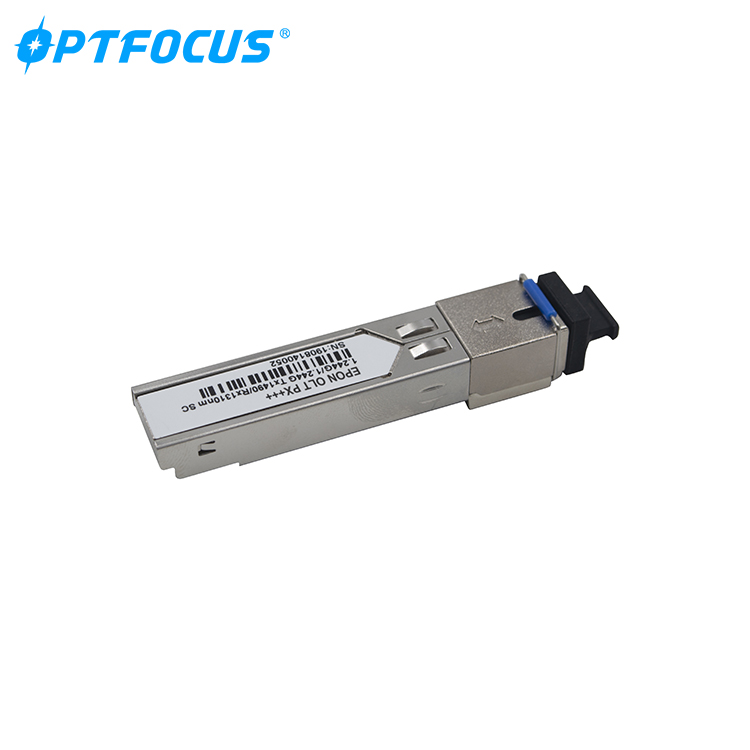

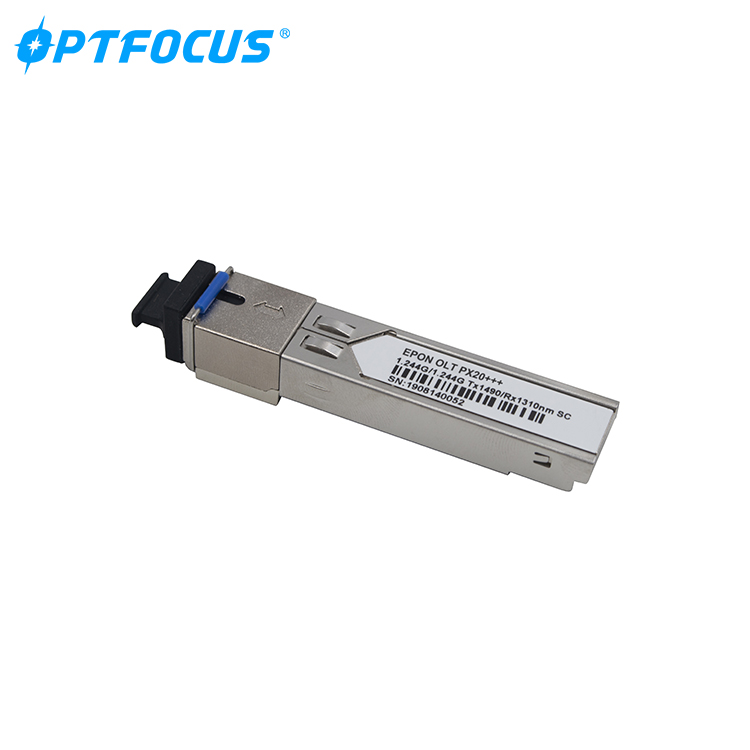

Details Images
Features
* SFP with SC/UPC ReceptacleTransceiver
* 1490 nm DFB Tx
* 1310 nm APD Rx
* Digital diagnostics SFF-8472 Compliant
* 1250 Mbps continuous mode Transmission
* 1250 Mbps Burst mode receiver Data Rate
* Provide fast RSSI function
* Operation case temperature: 0~70°C
* Complies with RoHS directive (2002/95/EC)
* 1490 nm DFB Tx
* 1310 nm APD Rx
* Digital diagnostics SFF-8472 Compliant
* 1250 Mbps continuous mode Transmission
* 1250 Mbps Burst mode receiver Data Rate
* Provide fast RSSI function
* Operation case temperature: 0~70°C
* Complies with RoHS directive (2002/95/EC)
Product Paramenters
Recommended Operating Conditions
Parameter | Symbol | Min. | Max. | Unit |
Storage Temperature | TSTG | -40 | 85 | °C |
Operating Case Temperature | TC | 0 | 70 | °C |
Power Supply Voltage | VCC | 3.1 | 3.5 | V |
Total Power Supply Current | ICC | - | 350 | mA |
Transmitter Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Units | Notes | ||||
Optical Transmitter Power | P0 | 6 | 7.5 | 11 | dBm | |||||
Optical Transmitter Power off | POFF | - | - | -39 | dBm | |||||
Output Center Wavelength | λ | 1480 | - | 1500 | nm | |||||
Output Spectrum Width | Δλ | - | - | 1.0 | nm | |||||
Side Mode Suppression Ratio | SMSR | 30 | - | - | dB | |||||
Extinction Ratio | ER | 9 | - | - | dB | |||||
Optical Rise Time | - | - | - | 260 | ps | |||||
Optical Fall Time | - | - | - | 260 | ps | |||||
Optical Eye Diagram | Compliant with IEEE Std 802.3ahTM-2004 | |||||||||
Tolerence to Tx Back Reflection | - | -15 | - | - | dB | |||||
Data Rate | - | - | 1.25 | - | Gb/s | |||||
Single Ended Data Input Voltage Swing | VPP | 200 | - | 1200 | mV | |||||
Differential Input Impedance | ZIN | 80 | 100 | 120 | ohm | |||||
Tx_fault Output Voltage- High | VOH | 2.4 | - | - | V | |||||
Tx_fault Output Voltage- Low | VOL | - | - | 0.4 | V | |||||
Tx_Dis Input Voltage- High | VIH | 2.0 | - | - | V | |||||
Tx_Dis Input Voltage- Low | VIL | - | - | 0.8 | V | |||||
Certifications
Company Profile

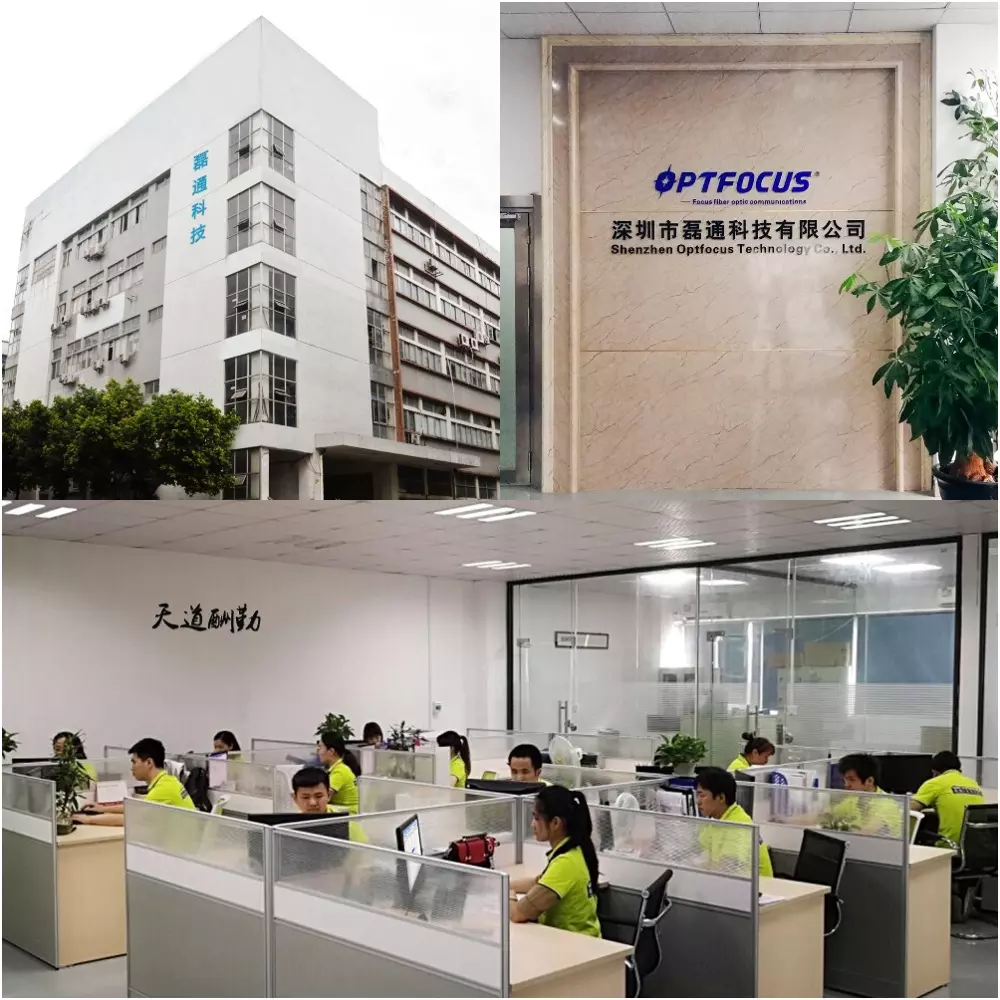

About US
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years’experience in global sales and services.
Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.
Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.

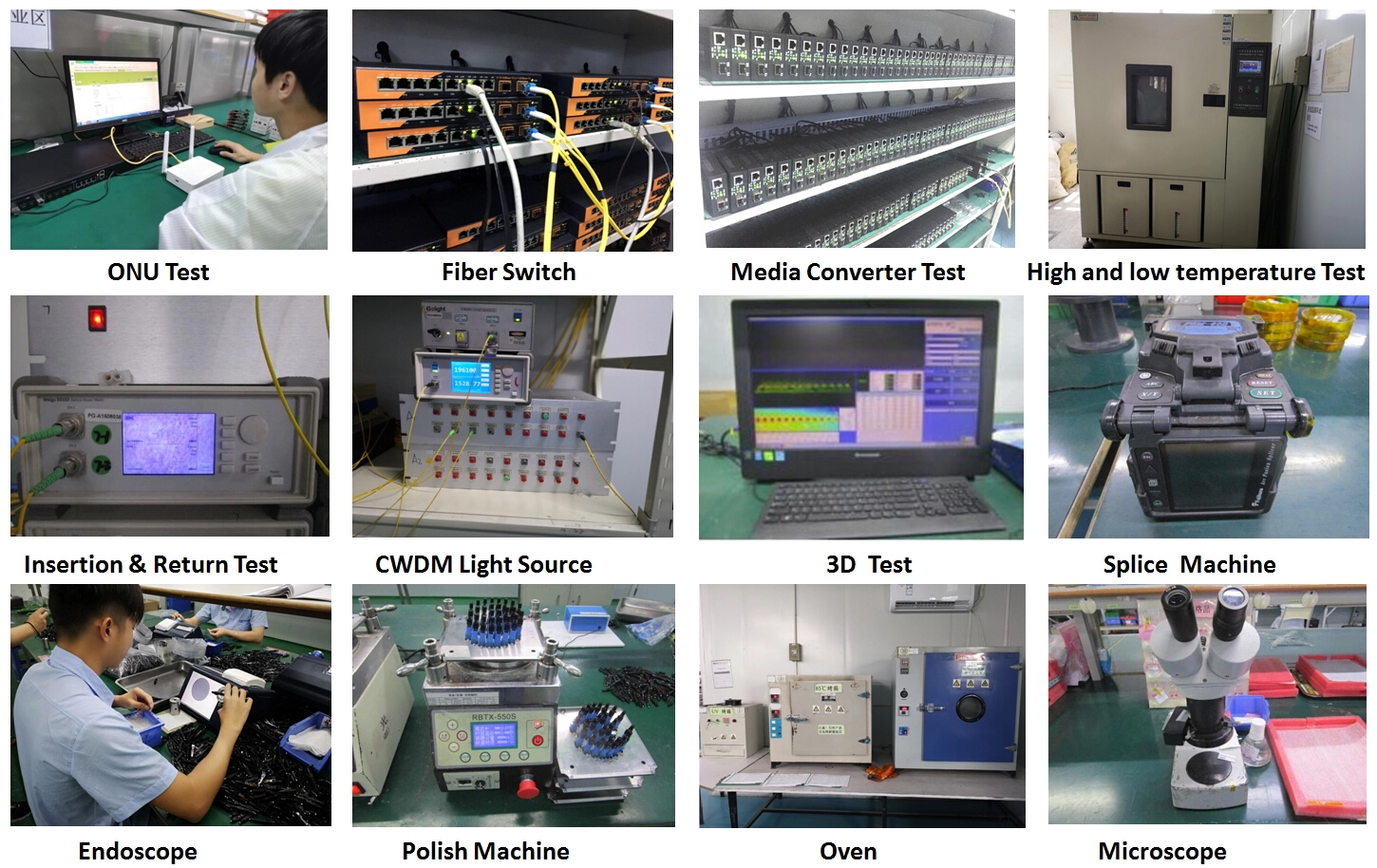

OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9
