fiber ethernet 10 100M single fiber singlemode 20km conversor de midia wdm OEM ethernet media converter
OFS-WS20A/B
minimum order
1 piece
Country of Origin
Shenzhen, China
Quantity
- Model Number:OFS-WS20A/B
- Type:10/100Mbps
- Place of Origin:China
- Brand Name:OPTFOCUS
- Use:Optic Comunication
- Warranty Time:1 years
- Product name:10/100M Media Converter
- Connector:Single Fiber: 1* 100Mbps,SC/ST/FC Optional
- Forwarding Mode:Store-and-Forward
- Forwarding Rate:148800pps/port
- Operating standard:EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
- Power:External
- Power consumption:2.5W
- Working temperature:-10~55℃
- Storage temperature:-20~75℃
- Keywords:conversor de midia wdm
- Single-Mode Fiber:YES
- Multi-Mode Fiber:NO
- No. of Fiber:1
- Application:Optic Comunication
- Power Input:5V
- Max Capacity:10/100Mbps
Product Description
netlink de fibr de convertidor

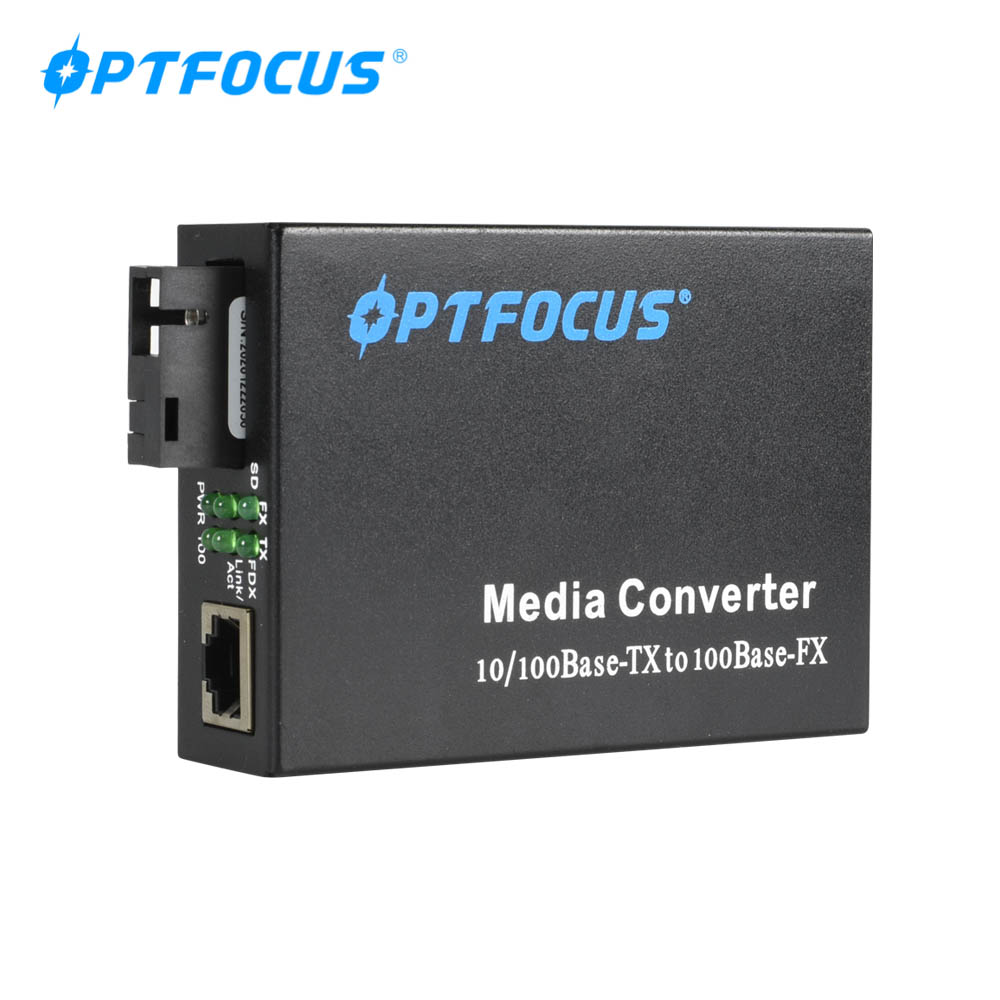

OFS-WS20A/B Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone; The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.
Specification
Product Name | 10/100M Media Converter |
Product Model | OFS-WS01/02-20 |
Connector | Single Fiber: 1* 100Mbps，SC/ST/FC Optional RJ45: 1*10/100Mbps,Auto MDI/MDI-X |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
Fiber Media | Fiber ( Multimode): 50/125, 62.5/125μm（the max distance up to 2km or 5km） Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm（the max distance up to 120km） |
Forwarding Mode | Store-and-Forward |
Forwarding Rate | 148800pps/port |
Operating standard | EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
Power | Input:AC 100~250VOutput:DC 5V 1A ，（default）。 or Input:DC:-36V~-72V；Output:DC 5V 1A 。（Optional） |
Power consumption | 2.5W |
LED | Power, FX 100、Link/Act, TX 100、FDX、 Link/Act. |
Working temperature | -10～55℃ |
