Bursting huawei ethernet industrial switch s3700 with 1-port 100Mbps SC Fiber + 4 port 10/100Mbps

OFS-PE-ISF1T4-20

minimum order

1 piece

Country of Origin

Shenzhen

Quantity

Contact Now

add to cart

Model Number:OFS-PE-ISF1T4-20
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Output Voltage:DC52V
Input Voltage:DC52V (48~57V) /Terminal block
Working temperature:-40~75℃
Warranty:5 Year
Relative Humidity:5%~95 %(no frost)
Forwarding Mode:Store-and-Forward
Bandwidth:1Gbps
Packet Buffer Memory:512K

OFS-PE-ISF1T4-20

1-port 100Mbps SC Fiber + 4 port 10/100Mbps Industrial Grade PoE Switch

Description:

Industrial PoE switch, 4 Port 10/100Mbps PoE ports and 1 port 100Mbps SC Fiber,for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 3KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.

Technical Specifications:

Product Name	4 Port 10/100M Industrial PoE Switch
Product Model	OFS-PE-ISF1T4-20
Interface	4x10/100Base-T POE port + 1x 100Mbps SC Fiber
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x; IEEE802.3af, IEEE802.3at
PoE Specification	PoE Standard: IEEE802.3af/ IEEE802.3at
	PoE ports: 4 port support PoE
	Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at)
	PoE port Auto detect AF/AT devices
	Output Voltage: DC52V
	Power Pin Assignment:1/2+;3/6-
	Power Type: End-span( Mid-span optional)
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM Single-mode: 20/40/60/80KM
Performance Specification	Bandwidth: 1Gbps Packet Buffer Memory:512K Packet Forwarding Rate:148800pps/port MAC Address Table: 1K
Forwarding Mode	Store-and-Forward
Protection	Lightening protection, IP40 protection
LED Indicators	Power: PWR; Link; PoE; Link/Act
Power Supply	Input Voltage: DC52V (48~57V) /Terminal block

Working Environment	Working temperature: -40~75℃ ; Storage temperature: -45~85℃ Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC6100-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC6100-4-3 (RS): 10V/m (80MHz-2GHz) IEC6100-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC6100-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC6100-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC6100-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail or Wall mounts
Packing List	1×Industrial PoE Switch (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit
Certification	CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B
MTBF	300,000 hours
Weight & Size	Product Weight: 0.5 KG Packing Weight: 1.1 KG Product size (L×W×H): 15.3cm×11.5cm×4.7cm Packing size(L×W×H): 21.6cm×20.6cm× 6.7 cm

Features:

l4 Port 10/100Mbps POE with Auto Uplink™ , 1 port 100Mbps SC

l4Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)

lAutomatic MAC address learning and aging

lAutomatically support IGMP (Multicasting)

l10/100Mbps Auto-negotiation , auto-MDI-MDI-X

lLED indicators for monitoring power/link/activity

lSupports 10/100Mbps-Full/Half-duplex

lSupports Wall-mount and DIN-Rail installation for lightning protection

lSupports Daisy-Chain connection

lSupports Broadcast Storm Control

lSupports Relay output for power failure

lSuper lightening protection, IP40 protection.

lExcellent heat elimination without cooling fan.

lRedundant dual DC power inputs.

lRedundant Power Inputs

lApply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

lHarsh industrial environment or higher requirement

l-40℃-85℃operatingtemperature range.

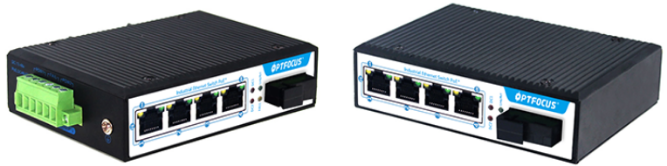

Physical Pic Reference :

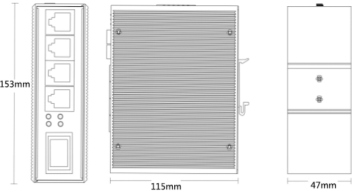

Chassis Dimension:

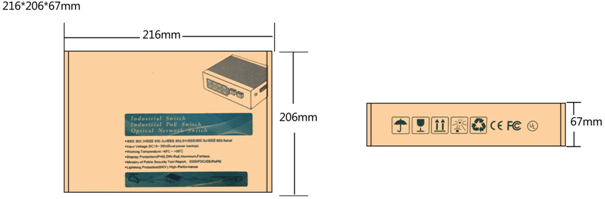

Package Dimension:

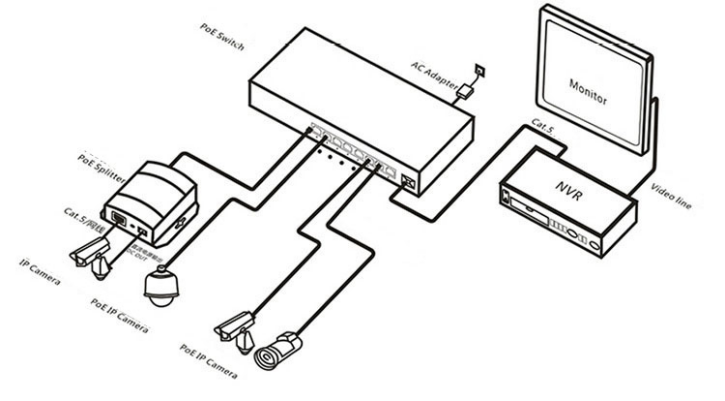

Solutions:

OrderingInformation:

model	Product description
OFS-PE-ISF1T4-20	port 10/100Mbps PoE + 1-port 100Mbps SC Fiber

Payment

Certifications

Customer Evaluation

FAQ

1. Is there a minimum order quantity?

No, you can feel free to order any quantity of any product.

2. Do your products come with warranty?

Yes,we provide 1 year warranty for all our products from the date of shipment.

3. How much charge voltage can reach?

Battery charging voltage should be 13.8V only high charging and low cutoff 10V.

4.Is your switch customizable for rack or DIN rail mountable?

Yes, of course, but we have the MOQ. Please contact with out server for details.

5.Does your network management switch support ring redundancy?

With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
