10GE SFP+ Uplink FTTH 1U 19 inch 8 port GPON EPON OLT Price With Web Nms Telnet Cli Management olt vsol gpon 16 sfp ports switch
- Model Number:ofse3516
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:Optfocus
- Use:FTTx Solutions
- Warranty Time:1 year
- Network:Wireless Lan
- Indicators::7 indicator
- Management::OAM WEB
- Interface::4 PON Port, 2SFP
- KEYWORDS::4 ports PON EPON OLT GEPON OLT
- Data exchange::3 layer switching, capacity 128Gbps
- Certification:FCC, ce, RoHS, CE FCC RoHS ISO9001:2015
- Upstream PON interface::4 EPON interface
- Farthest distance::0km between OLT and ONU
- keywords::mini epon olt
- Downstream LAN interface:4*FE/GE Ethernet
10GE SFP+ Uplink FTTH 1U 19 inch 8 port GPON EPON OLT Price With Web Nms Telnet Cli Management olt vsol gpon 16 sfp ports switch
16*EPON, 4*GE SFP, 4*GE COMBO port, 2*10GE SFP
Product Description

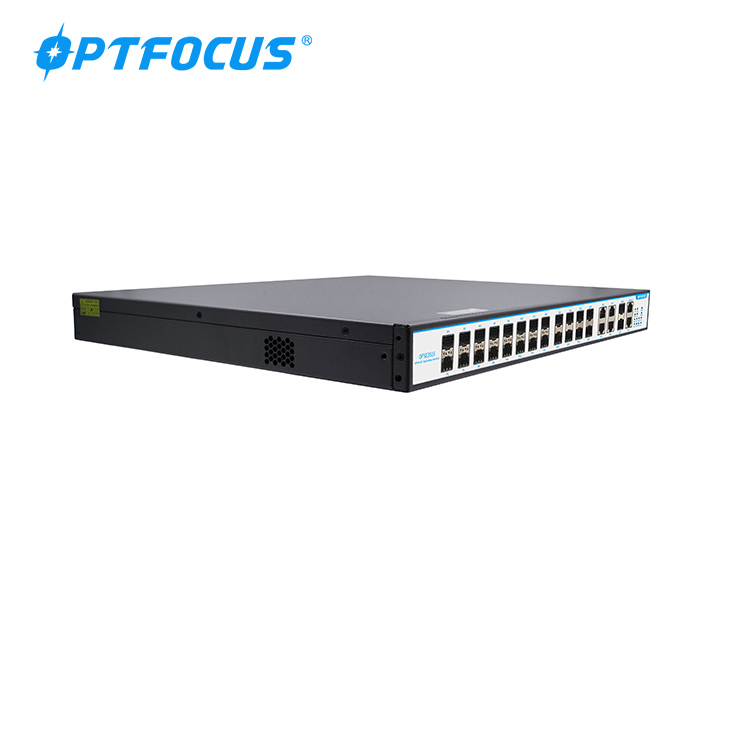

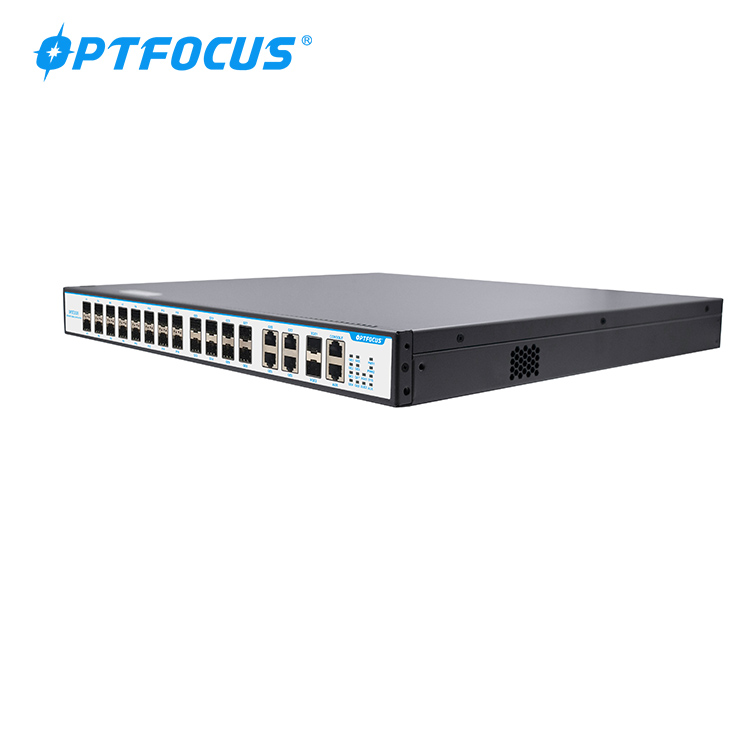

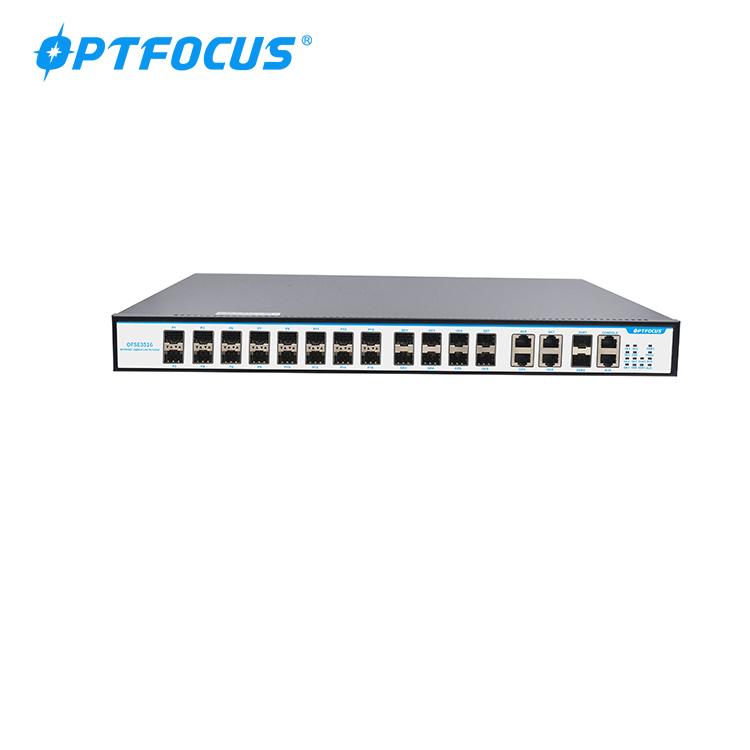

OFSE3516 is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. OFSE3516 possesses excellent openness, large capacity, high reliability, complete software function, efficient bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.
OFSE3516 provides 16 * downlink 1000M EPON ports, 8 * GE Ethernet ports and 2 * 10G uplink ports. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.
Product Specification:
Item | OFSE3516 |
128Gbps | |
95.23Mpps | |
Service Port | 16*PON, 4*GE SFP, 4*GE COMBO port, 2*10GE/GE SFP |
Redundancy Design | Pluggable double power supply, double AC, double DC and AC+DC |
Power Supply | AC:input100~240V47/63Hz DC: input36V~75V |
Power Consumption | ≤85W |
Dimensions (Width x Depth x Height) | 442mm×44mm×380mm |
Service Features:
Item | OFSE3516 | |
Maximum 20 Km PON transmission distance Each PON port supports the max. 1:64 splitting ratio Uplink and downlink triple churning encrypted function with 128Bits Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, real time upgrade PON transmit and inspect receiving optical power PON port optical power detection | ||
MAC | Port MAC Limit 16K MAC address | |
VLAN | Port-based/MAC-based/protocol/IP subnet-based QinQ and flexible QinQ (StackedVLAN) VLAN Swap and VLAN Remark PVLAN to realize port isolation and saving public-vlan resources GVRP | |
Spanning Tree | Remote loop detecting | |
Port | Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring | |
Features | User’s Security | Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binding to the port and MAC address filtering IEEE 802.1x and AAA/Radius authentication |
Device Security | Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users | |
Network Security | User-based MAC and ARP traffic examination Restrict ARP traffic of each user and force-out user with abnormal ARP traffic Dynamic ARP table-based binding IP+VLAN+MAC+Port binding L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet Port-based broadcast/multicast suppression and auto-shutdown risk port URPF to prevent IP address counterfeit and attack DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5 cryptograph authentication | |
Loop Protection | EAPS and GERP (recover-time <50ms) Loopback-detection | |
Link Protection | RSTP/MSTP (recover-time <1s) LACP (recover-time <10ms) BFD | |
Device Protection | 1+1 power hot backup | |
Network Maintenance | Port real-time, utilization and transmit/receive statistic based on Telnet RFC3176 sFlow analysis LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute | |
Device Management | CLI, Console port, Telnet and WEB SNMPv1/v2/v3 RMON (Remote Monitoring)1, 2, 3, 9 groups MIB NTP NMS network management |
