Gigabit Poe Fiber Switch 150W Vlan 250 Meters 8 Ports for Hikvision CCTV 5W 8-port 10/100/1000mbps + 2-port 1000mbps SFP Fiber
- Model Number:OFS-GSF2T8S
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Product name:8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
- Product Model:OFS-GSF2T8S
- Fiber Media:Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100KM
- Forwarding Mode:Store-and-Forward
- LED Indicators:Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8)
- Power Supply:Input: AC100 ~ 250V, Output:DC5V 2A.
- Max power:5W
- Environment temperature:0 ~ +55℃
- Storage temperature:-20 ~ +70℃
- Humidity:5% ~ 90%

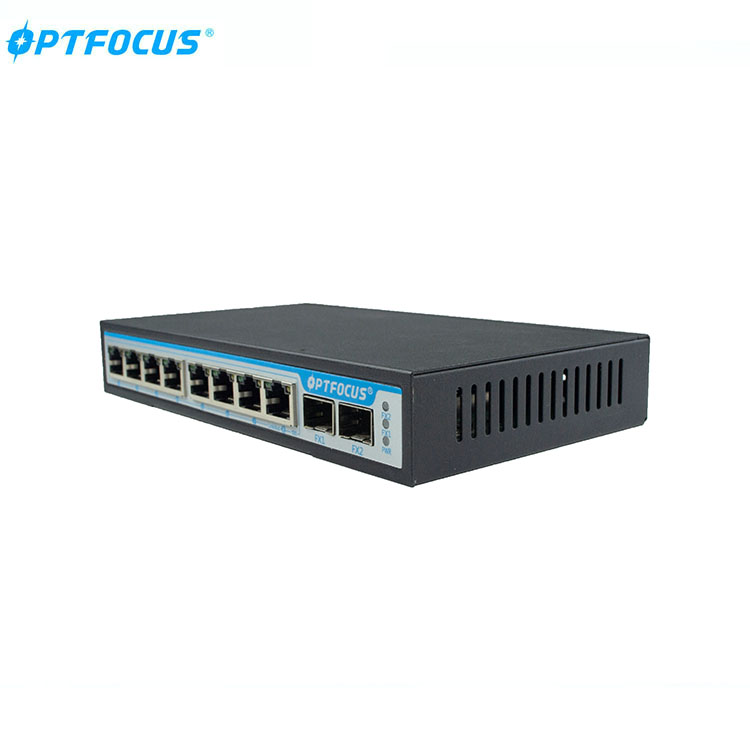

150W Vlan 250 Meters 8 ports gigabit PoE Fiber switch For Hikvision CCTV
OFS-GSF2T8S
8ports 10/100/1000M +2ports 1000M SFP Fiber Switch
OFS-GSF2T8S series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps SFP Optical fiber ports and 8*10/100/1000Mbps RJ45ports. It is designed to meet the various application needs, and provide an Ethernetnetwork communication solution with a highperformance-price ratio.
OFS-GSF2T8S’s high availability and reliability, aswell as the richsecurity features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.
Technical Specifications
| Product Name | 8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber |
| Product Model | OFS-GSF2T8S |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media | Multi-mode:550M- 2KM |
Single-mode: 20/40/60/80/100KM | |
Performance Specification | Bandwidth: 20Gbps |
Packet Forwarding Rate:1488000pps/port | |
MAC Address Table:8K | |
| Forwarding Mode | Store-and-Forward |
LED Indicators | Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8) |
Power Supply | Input: AC100 ~ 250V, Output:DC5V 2A |
Max power | 5W |
| Environment temperature | 0 ~ +55℃ |
| Storage temperature | -20 ~ +70℃ |
Humidity | 5% ~ 90% |
Features:
- 8 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
- Automatic MAC address learning and aging
- 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports10/100/1000Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation ,Optional
- Supports Broadcast Storm Control
- Excellent heat elimination without cooling fan
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City
- Harsh environment or higher requirement
- -10℃-55℃operating temperature range.

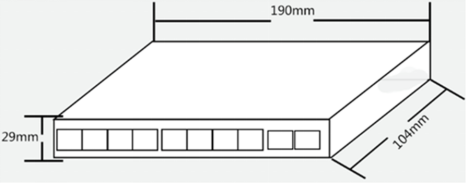

Chassis Dimension

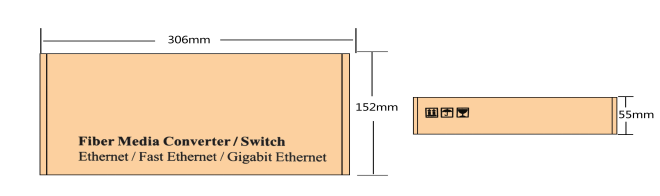

Package Dimension
More information
Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
Packing List | 1× Switch 1×User Manual/Certificate of quality/Warranty card 1×power adapter |
MTBF | 100,000 hours |
Weight & Size | Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H):190mm× 104mm× 29mm Packing size(L×W×H): 306mm×152 mm× 55mm |
Warranty | 1-years |
OrderingInformation:
model | Product description |
OFS-GSF2T8S | 8* 10/100/1000Base-T RJ45,2* 1000M fiber SFP ports, without SFP module,external PS |
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years’ experience in global sales and services. Our company focus on professional R & D, production and sales of xPON access equipments ,FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win more market and customers.
Company History:
2009, Established with Fiber media converters production line.
2010, Developed Fiber optical switches, Annual capacity about 12000units.
2015, Expand R&D investment. Relocated the factory. Increased splitter and fast connector.
2017, Access to PON products, Increased indoor and outdoor cable and MPO fiber patch cord.
2012, Explore POE switches and industrial switches. Annual capacity reach 20million units.
Advantage of our company :
- National High-tech enterprise certification;
- Fiber Optical Innovative & production team Over 10 years;
- Fiber optical active and passive components production workshop;
- Strict quality management system;
- Professional One stop supply & service;
- OEM&ODM available;
- Reliable and Timely customer services.

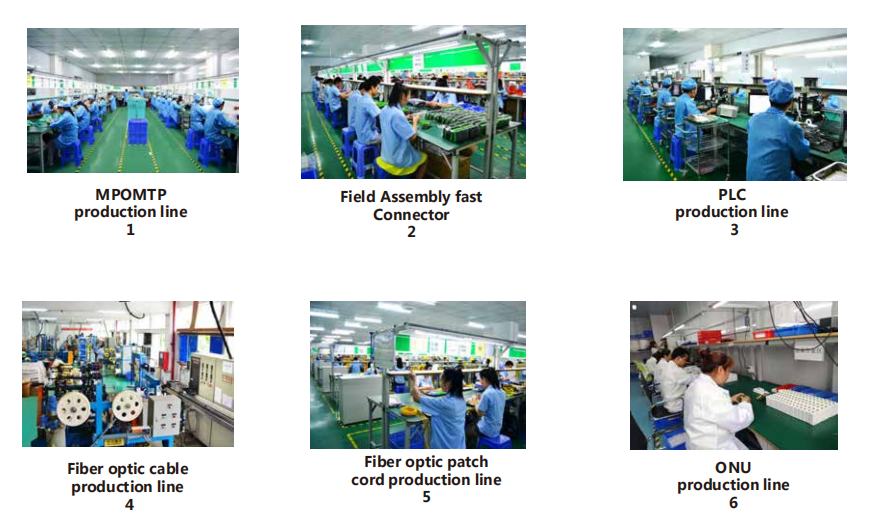

Production Line

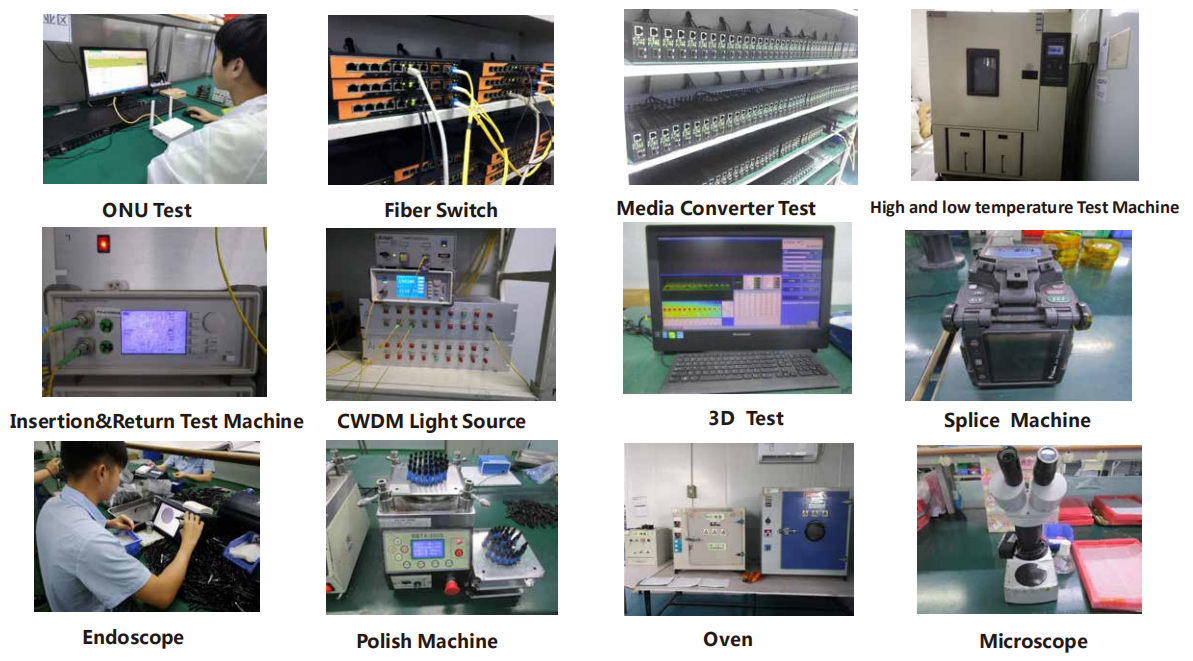

Test Instruments
