Huawei Sfp Module Optic Transceiver FTTH CE FCC Rohs ISO9001 LC SC FC ST 0 to 70 Degree Sfp 1.25g 1310nm 10km -40 to +85 Degree
OFSB-5312-20SD, 1.25G CWDM SFP Transceiver Module with DDM
minimum order
1 piece
Country of Origin
Shenzhen China
Quantity
- Model Number:OFSB-5312-20SD, 1.25G CWDM SFP Transceiver Module with DDM
- Type:Fiber Optic Transceivers
- Place of Origin:Guangdong, China, Guangdong, China
- Brand Name:OPTFOCUS, OPTFOCUS or OEM
- Certification:CE FCC RoHS ISO9001
- connector type:LC SC FC ST
- Wavelength:1270~1610nm
- Compatible:Cisco, Arista Networks, Brocade, HP, Dell, H3C, Huawei, or Custom
- Commericial grade:0 to 70 degree
- Industry grade:-40 to +85 degree
- Keywords:sfp 1.25g 1310nm 10km
- No. of Fiber:1.
- Use:FTTH
Product Description
Product Feature
*Dual data-rate of 1.25Gbps/1.063Gbps operation
*1550nm DFB laser and PIN photodetector for 20km transmission
*1550nm DFB laser and PIN photodetector for 20km transmission
*Compliant with SFP MSA and SFF-8472 with simplex LC
*Receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
*Compatible with SONET OC-24-LR-1
*Compatible with RoHS
*+3.3V single power supply
*Operating case temperature: standard : 0 to +70°C
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
*Compatible with SONET OC-24-LR-1
*Compatible with RoHS
*+3.3V single power supply
*Operating case temperature: standard : 0 to +70°C
1.25Gbps SFP Bi-Directional Transceiver, 20km Reach
1550nm TX / 1310 nm RX
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km
transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

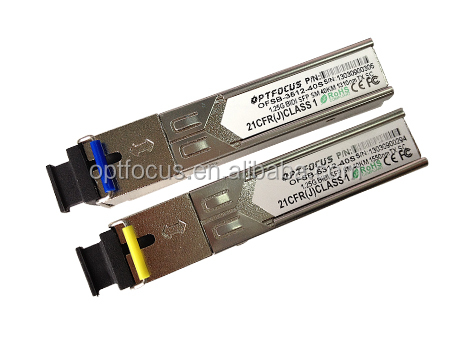

Product Image

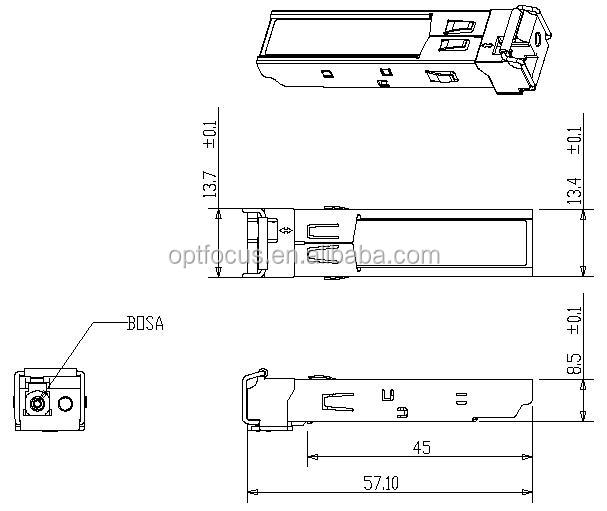

Mechanical Dimensions
Applications
*Gigabit Ethernet
*Fiber Channel
*Switch to Switch interface
*Switched backplane applications
*Router/Server interface
*Other optical transmission systems
*Fiber Channel
*Switch to Switch interface
*Switched backplane applications
*Router/Server interface
*Other optical transmission systems
Digital Diagnostic Memory Map
The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire
serial interface (SCL, SDA).
The diagnostic information with internal calibration or external calibration all are implemented, including received power
monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.
serial interface (SCL, SDA).
The diagnostic information with internal calibration or external calibration all are implemented, including received power
monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.
Certifications

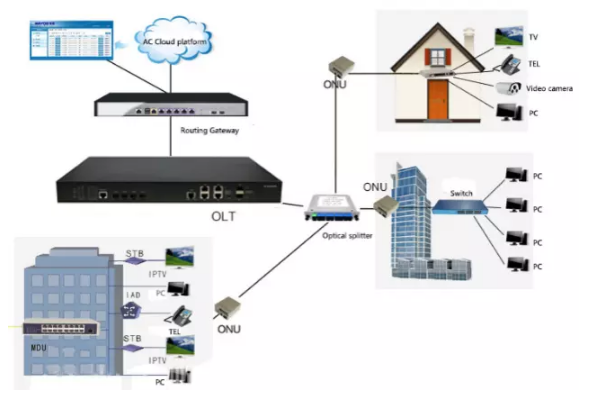

Product Usage
Related Products
Packing&Shipping

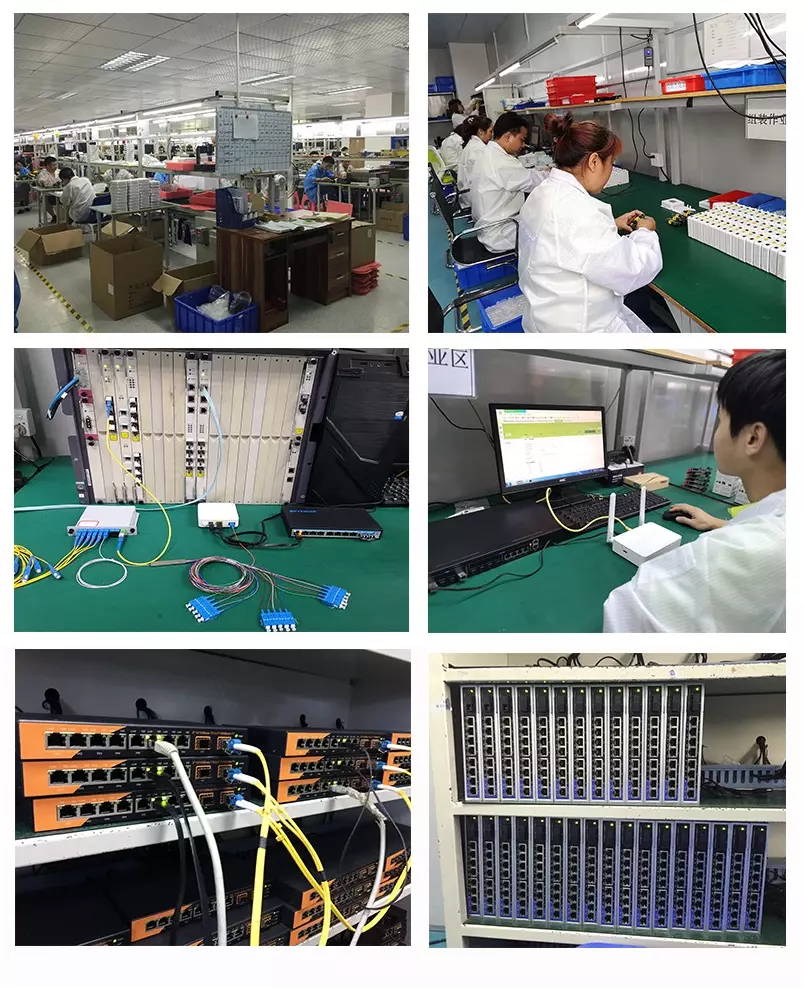

Company Introduction
