Qsfp-40g-aoc1m 3m 5m 10meter 850nm Qsfp+ Active Transceiver Optical Cable Sfp Aoc Compatible With Huawei Zte Hp Switch

OFS-AOC-QSFP-1M

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFS-AOC-QSFP-1M
Type:SFP Modules
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Use:10Gbs~40Gbs Ethernet
Warranty Time:1Year
Network:Wireless Lan, Wired LAN, Ip, wifi
Date Rate:40G
Product name:40g AOC sfp
Diameter:3mm
Warranty:1 Year
Channels:4
Cable Type:Round OFNP-rated
Wavelength Range:820-880nm
Compliant:SFF-8436
Power supply voltage:3.3V
Operating temperature:0°C to +70°C

Qsfp-40g-aoc1m 3m 5m 10meter 850nm Qsfp+ Active Transceiver Optical Cable Sfp Aoc Compatible With Huawei Zte Hp Switch

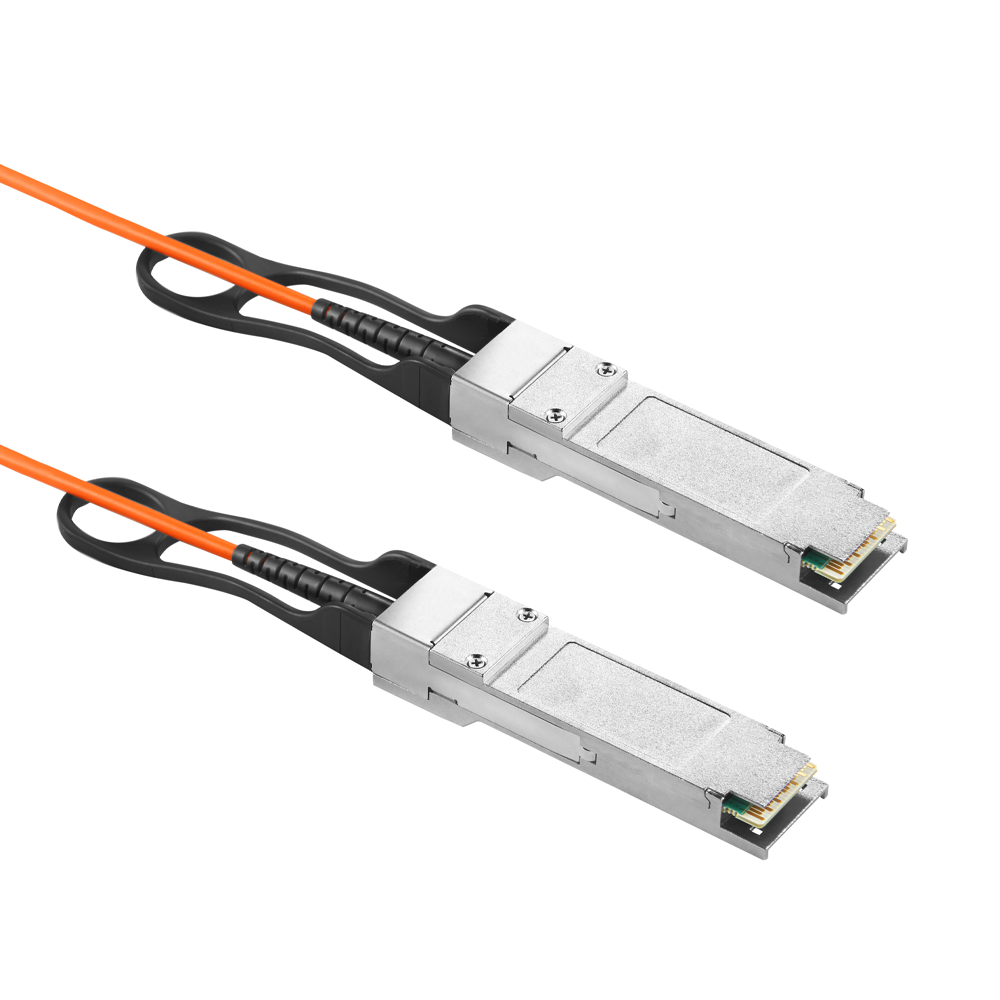

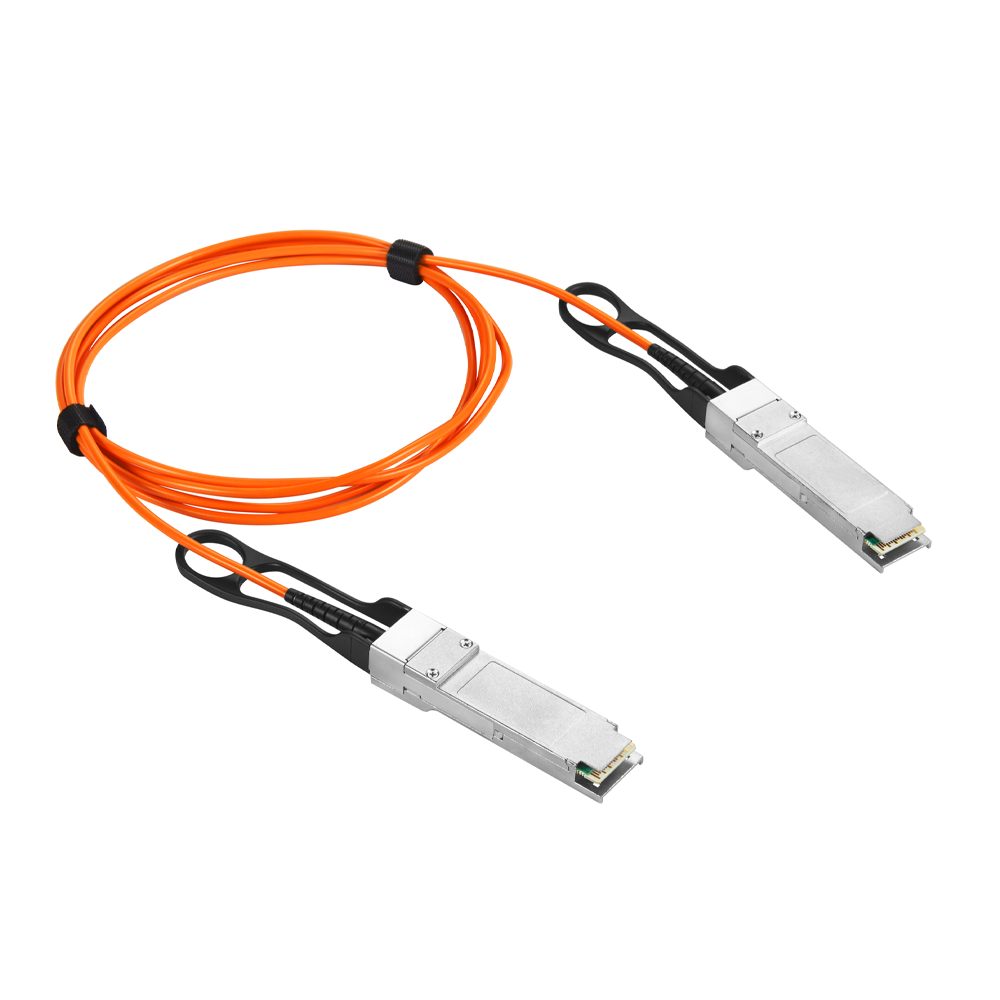

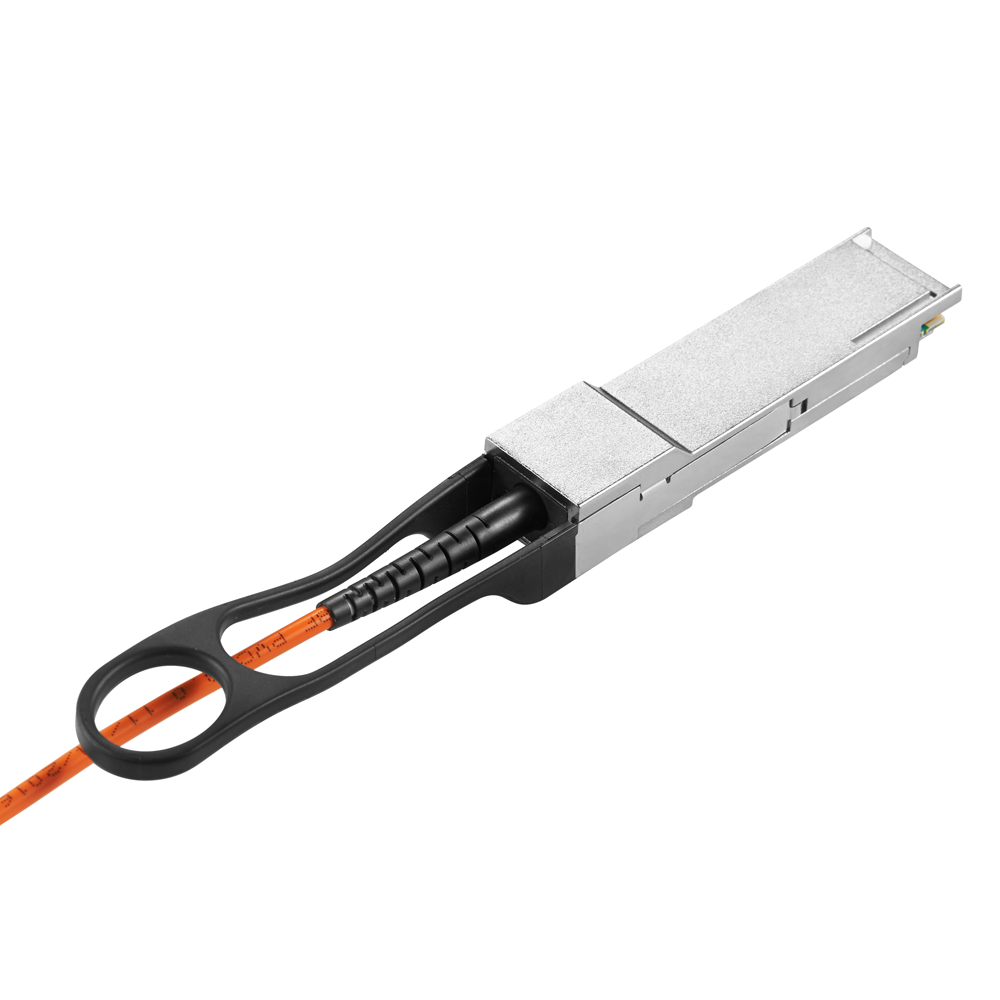

40G QSFP Active Optical Cable

Description

40Gb/s QSFP+ AOC (Active Optical Cables) has four channels, each channel has a transmission rate of up to 10Gb/s, and the aggregate rate is up to 40Gb/s. Its low power consumption, low bit error rate, easy management, and high performance are widely used in medium and short-distance high-speed interconnection of networkcards, switches, servers, supercomputers, and storage networks.

2Features:

4 channels 850nm VCSEL and PIN

Electrical interface compliant to SFF-8436

Support 40GE data rate

Hot Pluggable QSFP form factor

Built-in digital diagnostic functions

Operating case temperature 0°C to +70°C

3.3V power supply voltage

Round OFNP-rated cable

3Applications :

10Gbs~40Gbs Ethernet

Data storage and communications industry

Servers and data storage devices

Switch/router/HBA, etc.

Parameter	Value	Units
Diameter	3	mm
Minimum bend radius	30	mm
Length tolerance	Length< 1 m: +5 /-0	cm
	1 m ≤length ≤ 4.5 m: +15 / -0	cm
	5 m ≤length ≤ 14.5 m: +30 / -0	cm
	Length≥15.0 m +2% / -0	m

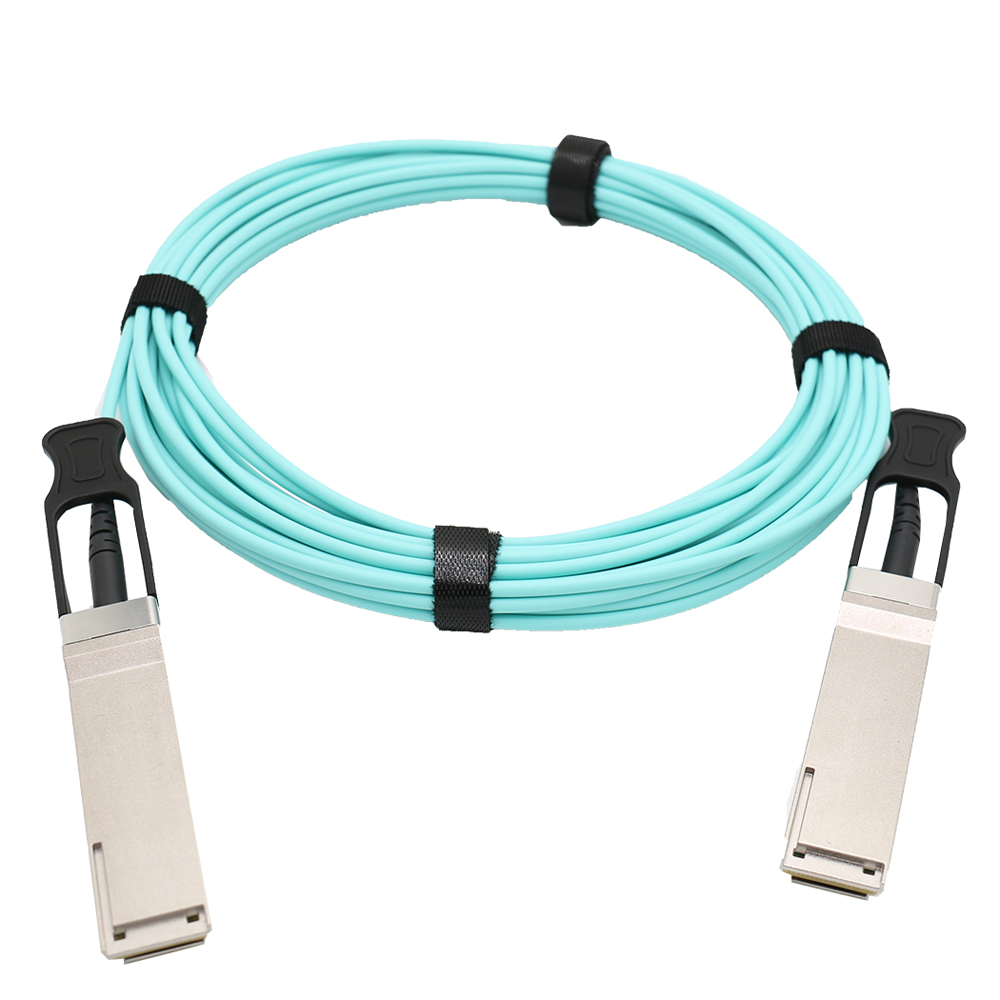

Cable color	Aqua(OM3),Megenta(OM4)

Pls feel free to contact us any time,we will offer best price and best quality products.Thank you very much for you contacting.

Compay Profile

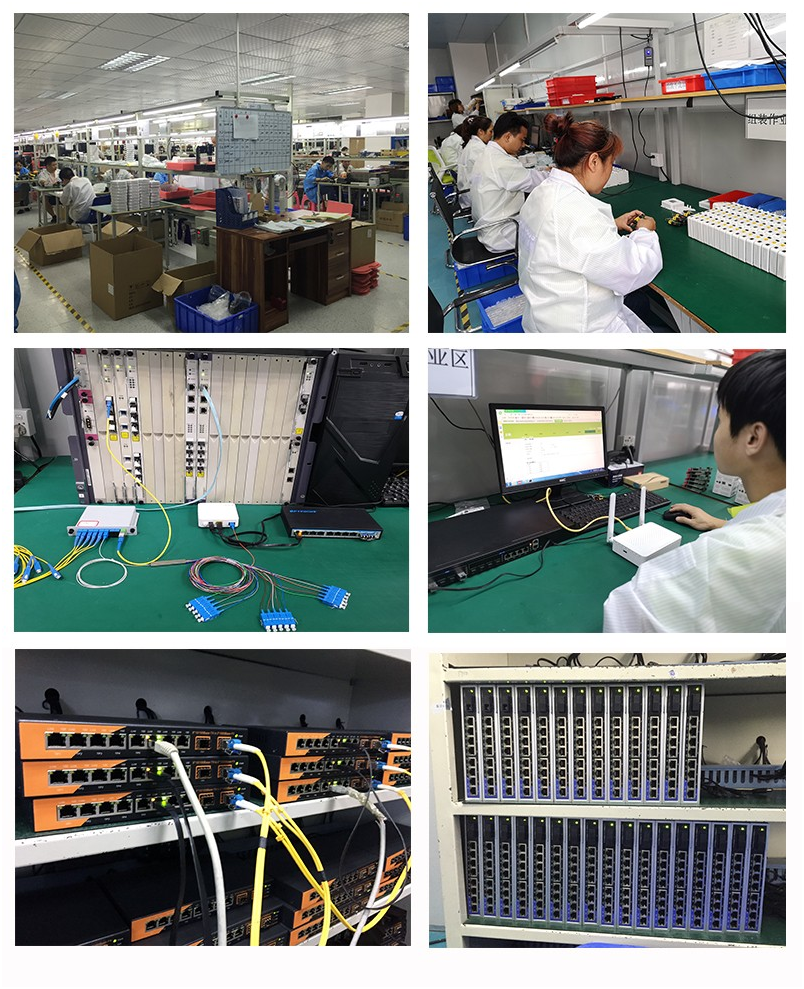

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a National High-tech Enterprise integrating with R&D, manufacturing, marketing and service to our worldwide partners and customers.

OPTFOCUS with more than 13 years’s experience focus on high-performance fiber optical communication solutions&products,network security monitoring transmission solutions& products.FTTH/FTTx Access solutions&products.
