Oem/odm 10gbase sfp to sfp optical active Aoc Om3 Mm 1m (3ft) 3m 5m 10m Optical Fibre Cable For Data Center Routers
- Model Number:OFS-AOC-10G-MM3-1M
- Type:SFP Modules
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:10 Gigabit Ethernet
- Warranty Time:1Year
- Network:Wireless Lan, Wired LAN, Ip
- Diameter:3mm
- Date Rate:10G
- Keywords:10g AOC sfp
- Warranty:1 Year
- Maximum link length:150m on OM2 and 300m on OM3

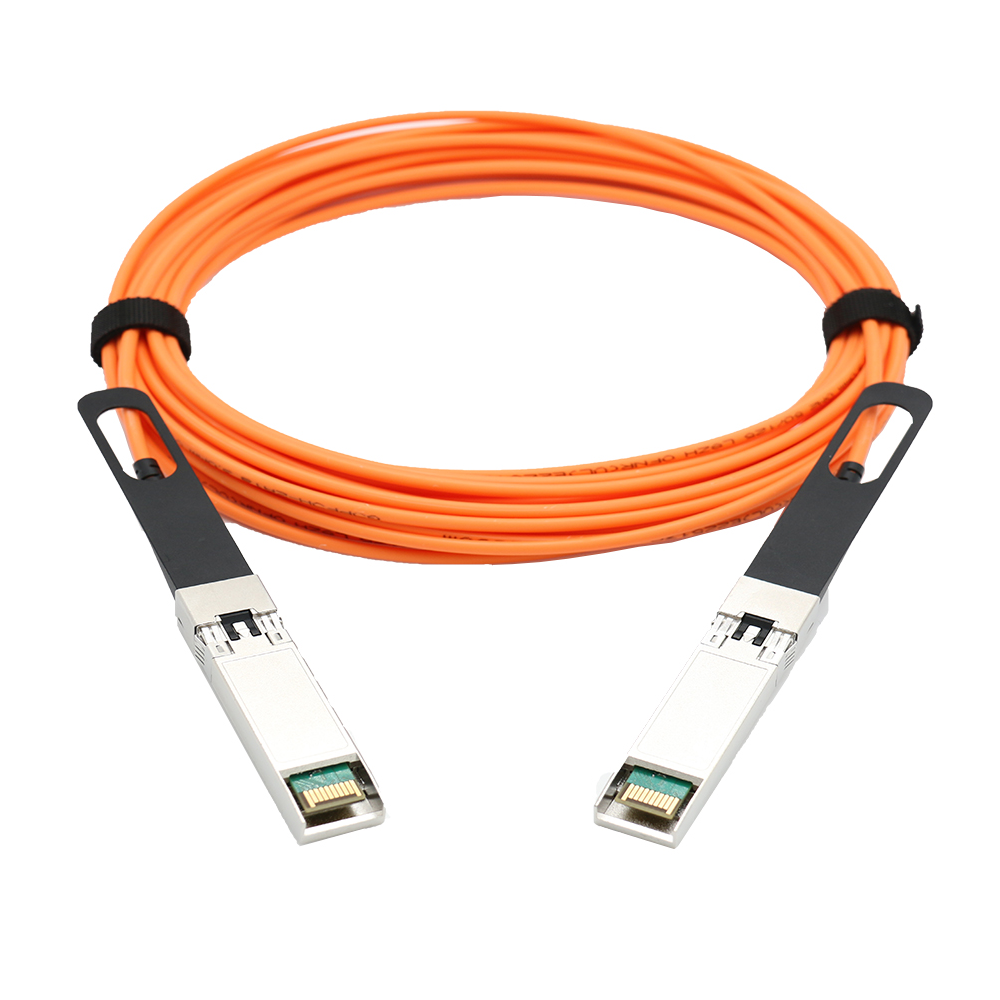

- Cable color:Aqua(OM3);Orange(OM2)
- Fiber Type:MMF
- Wavelength Range:820-880nm
- Compliant:SFF-8431
- Features:High-performance

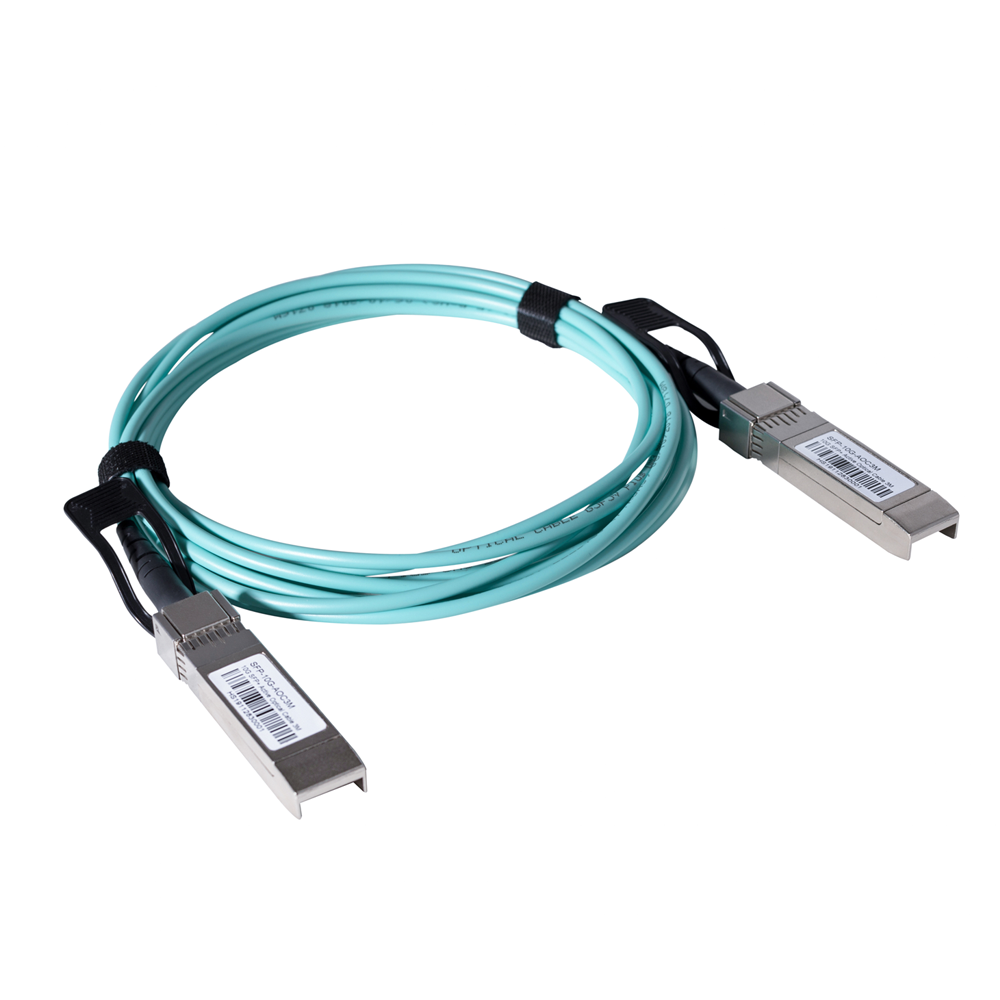

High Reliability 10gbit/s 1m 3m Sfp+ To Sfp+ 10g Aoc 100m Sfp Fiber Optic Transceiver Cables Active Optical Cable
10G SFP+ Active Optical Cable Specification
Description
10G SFP active optical cable (AOC) components are supported by active circuits, which have a longer transmission distance than passive or active SFP+ copper cables. SFP+AOC cable provides high-performance small form-factor pluggable (SFP+) interface, which is a cost-effective solution for data center, storage and short-range data applications.
10G SFP active opticalcableproviding improved signal integrity, longer distances, superior electromagnetic immunity and better bit error rate performance.
2Features:
Electrical interface compliant to SFF-8431
850nm VCSEL laser and PIN photo-detector
Maximum link length of 150m on OM2 MMF and 300m on OM3 MMF
Digital diagnostics functions are available via the I2C interface
RoHS compliant
Hot Pluggable
3Applications :
l10 Gigcabit Ethernet
lInfiniBand QDR, SDR, DDR
lServers, switches, storage and host card adapters
Parameter | Value | Units |
Diameter | 3 | mm |
Minimum bend radius | 30 | mm |
Length tolerance | Length< 1 m: +5 /-0 | cm |
1 m ≤length ≤ 4.5 m: +15 / -0 | cm | |
5 m ≤length ≤ 14.5 m: +30 / -0 | cm | |
Length≥15.0 m +2% / -0 | m | |
Cable color | Aqua(OM3);Orange(OM2) | |
