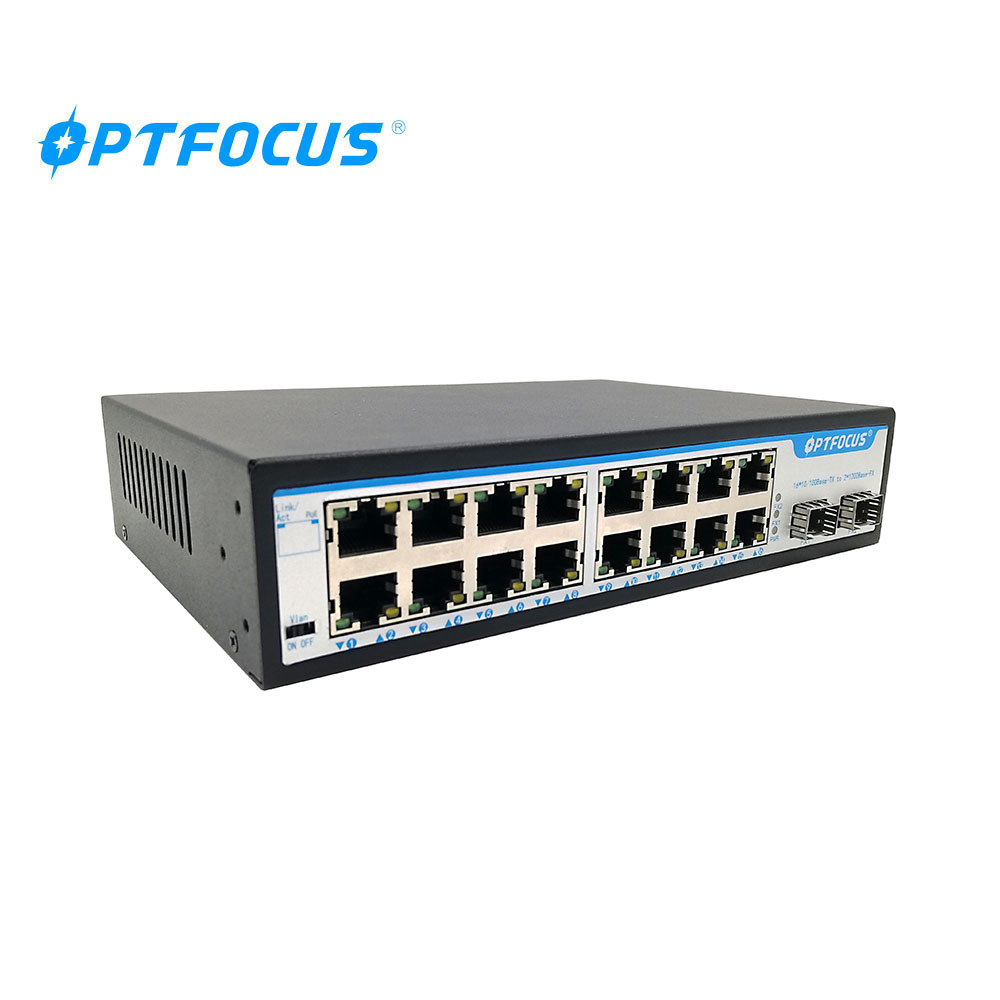

Full Gigabit 16 port Poe Switch support IEEE802.3af/at IP cameras and Wireless AP 48V active network switch
- Model Number:OFS-PE-DT16GT2
- Type:Fiber Switch
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:Data Center, fiber optic network
- Warranty Time:1 Year
- Network:Wireless Lan, Ip, POE
- Product Name:Gigabit fiber switch /Slot
- Fiber port:LC,SC,ST,FC Optional
- Network Media:1000BASE-TX: Cat6 or later UTP(≤100 meter)
- Connector:8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber Slot
- Fiber Media:Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100/120KM
- Forwarding Mode:Store-and-Forward
- Power Supply:Input: AC100 ~ 250V, Output:DC12~15V.
- Environment temperature:0 ~ +55℃
- Transmission Distance:20km
Full Gigabit 16 port Poe Switch support IEEE802.3af/at IP cameras and Wireless AP 48V active network switch
This series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps Optical fiber ports and 16*10/100/1000MbpsRJ45 ports.
It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
It is high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.
Features
Ø16port 10/100Mbps with Auto Uplink™, 2 port 1000Mbps Fiber Slot
ØAutomatic MAC address learning and aging
Ø10/100 Mbps Auto-negotiation , auto-MDI-MDI-X
ØLED indicators for monitoring power/link/activity
ØSupports10/100 Mbps-Full/Half-duplex
ØExcellent heat elimination without cooling fan.
ØApply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
ØSupport dual power redundancy(optional)
ØThe built-in 12V lead acid battery charging circuit. (optional)
Technical parameter list
| Product Name | 16-port 10/100Mbps + 2-port 1000Mbps Fiber Slot |
| Product Model | OFS-PE-DT16GT2 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Fiber port | LC,SC,ST,FC Optional |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100/120KM |
| Performance Specification | Bandwidth: 20Gbps Packet Forwarding Rate:1488000pps/port MAC Address Table:4K |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8) |
| Power Supply | Input: AC100 ~ 250V, Output:DC12~15V. |
| Max power | 7W |
| Environment temperature | 0 ~ +55℃ |
| Storage temperature | -20 ~ +70℃ |
| Humidity | 5% ~ 90% |
Packaging & Shipping
What kind of packaging and shipping do you provide?
Professional Packaging
Fast & Safety Shipping——Worldwide
Standard Export carton
1.Inner: Neutral brown carton or box
2. Outer: Internationally standard package carton or box with several lays and thin plastic film surround the carton or box
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx,
Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.
Production Workshop

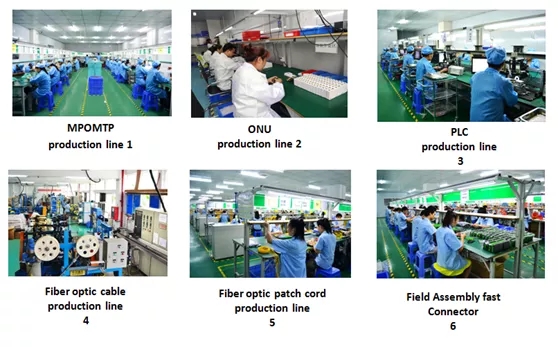

Production Lines

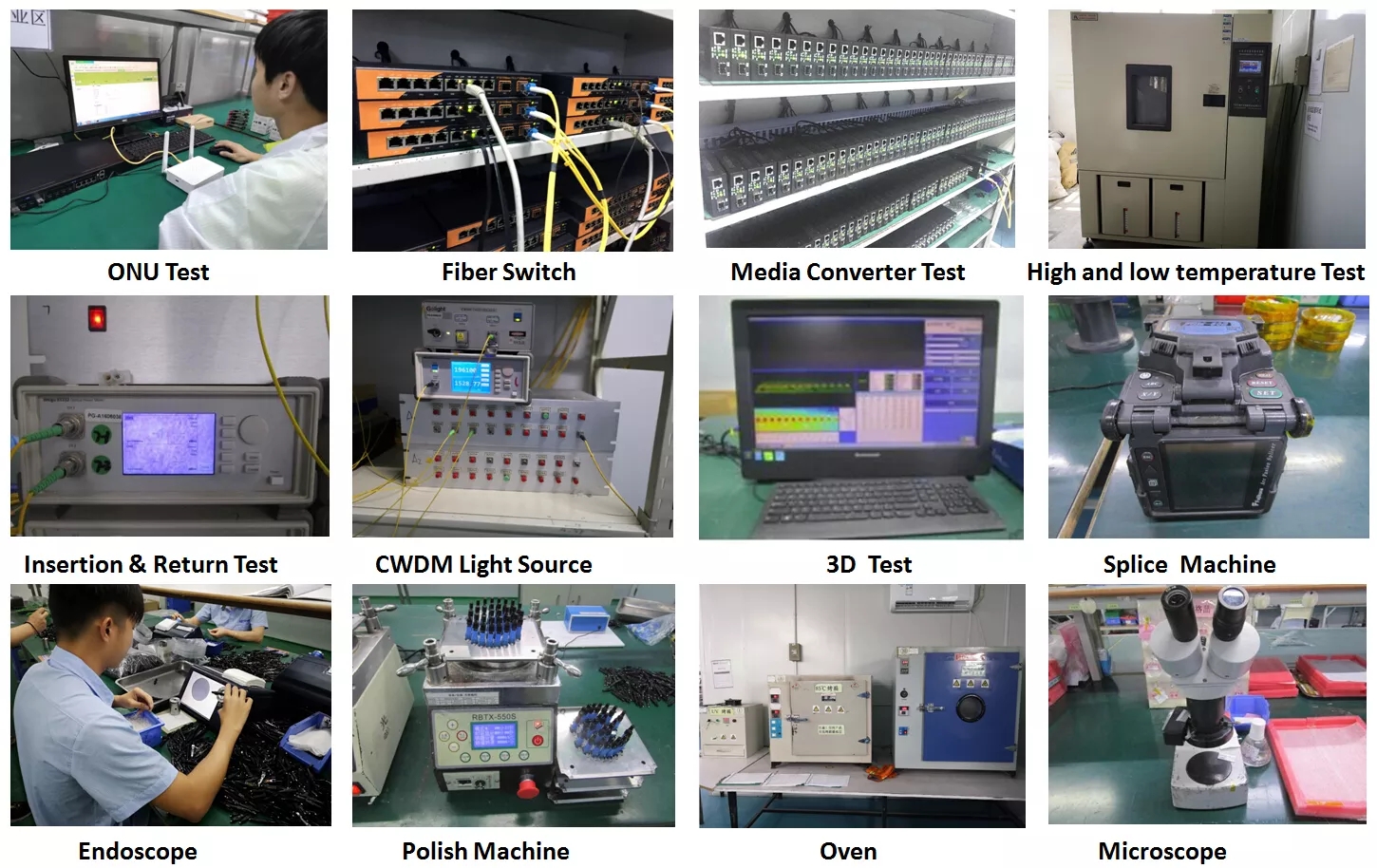

Products Test Machine
