8 Port PoE Switch with 2 Uplink Ports 120W 8 10/100Mbps 120W Extend VLAN Mode 802.3af Standard Fanless
8 Port 10/100M POE Switch(8+2 CH)
◆ 8*10/100mbps POE port,2*10/100mbps UP-Link port
◆ 100m Transmission Distance,250m after use extend function
◆ Compatible with IEEE802.3AF/AT
◆ Whole Power:120W(52V2.3A)
◆ All port supported by MDI/MDIX auto flip and self negotiation
◆ Supply8pcs 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
◆ Add high level lightning protection device, up to 6000V.
◆ Each port max. power supply reached 30W.
◆ Low heat design, safe and reliable, high stability

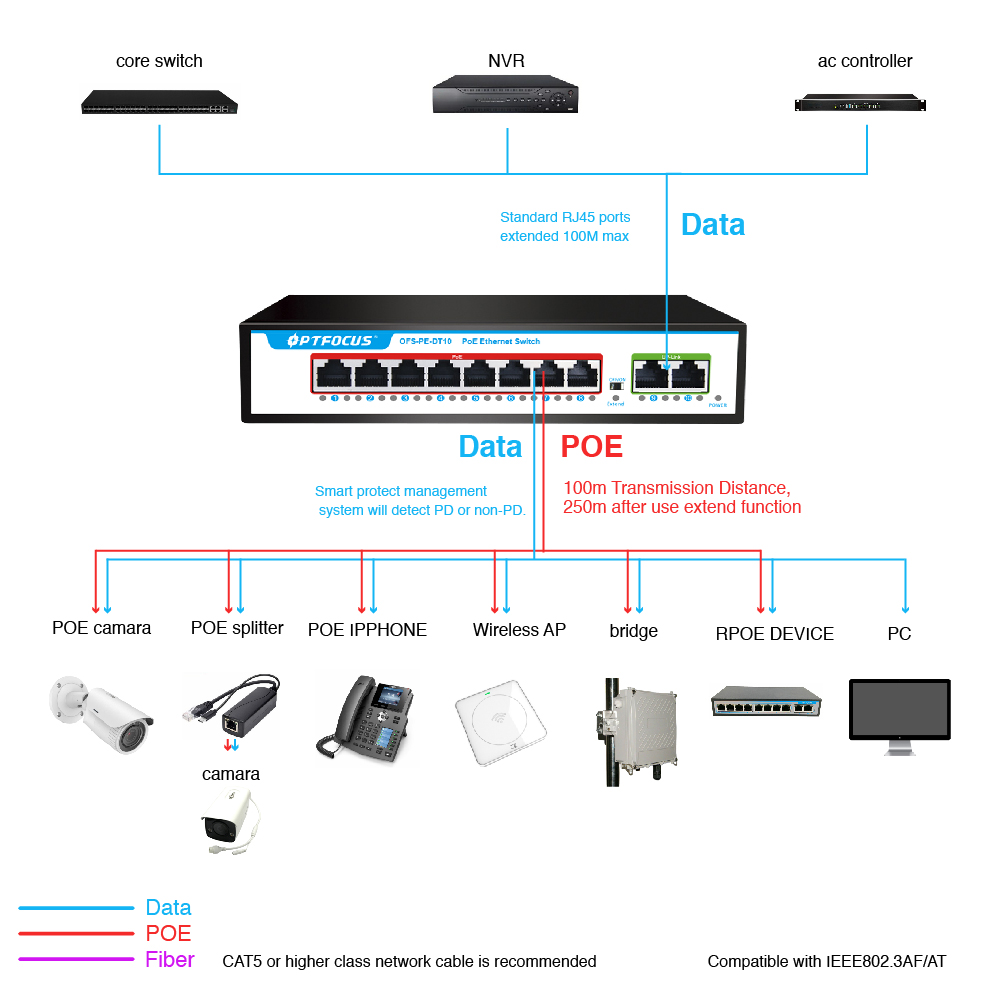

Application:² Wireless Access Point² IP Camera
Extra Features:
◆ Manual reset changed to automatic reset，No power cuts are needed to change network speeds.
◆ Low-voltage detection, step by step to rise, give buffer, prevent burning equipment.
Product Description:
It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.
Welcome to contact our sales team and they will offer you a professional introduction about our products!
Technical Specification:
| Product Name | 8 Port 10/100M ACTIVEPOE Switch(8+2) |
| Product Model | OFS-PE-DT10 |
| DATA PIN | 1/2+,3/6- |
| Power Supply Type | Build in , 1/2+,3/6- |
| PoEOutput Power | 15.4W/30W |
| Connector | 8*10/100mbps POE port,2*10/100mbps UP-Link port |
| Network Medium | Cat5 (UTP) or more |
| Technology | |
| Network Standards | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
| PoE power | 30W per port(IEEE802.3af/at). Wiring: Data & power provided over pairs 1/2 and 3/6 |
| Processing types | Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
| Address database Table Size | 1KMAC address |
| Buffer memory | 48Kb embedded memory per unit |
| Backboard Bandwidth | 2G |
| Network Latency | Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
| Power | |
| Input | 52V DC input |
| PoE power consumption | 15.4W per port(IEEE802.af) |
| Overload current protection | Present |
| Mechanical | |
| Casing | Metal |
| Installation | Desktop/Rack mounting |
| Interface | |
| LED Indicators | System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
| Environment specification | |
| Operating temperature | -10-55℃(32-104℉) |
| Storage temperature | -40-70℃(14-158℉) |
| Operating humidity | 90% maximum relative humidity, non-condensing |
| Storage humidity | 95% maximum relative humidity, non-condensing |
| Regulatory Approval | |
| ISO | Manufactured in ISO9001 facility |
| Safety | CE/CCC |
| Warranty | 2 years |

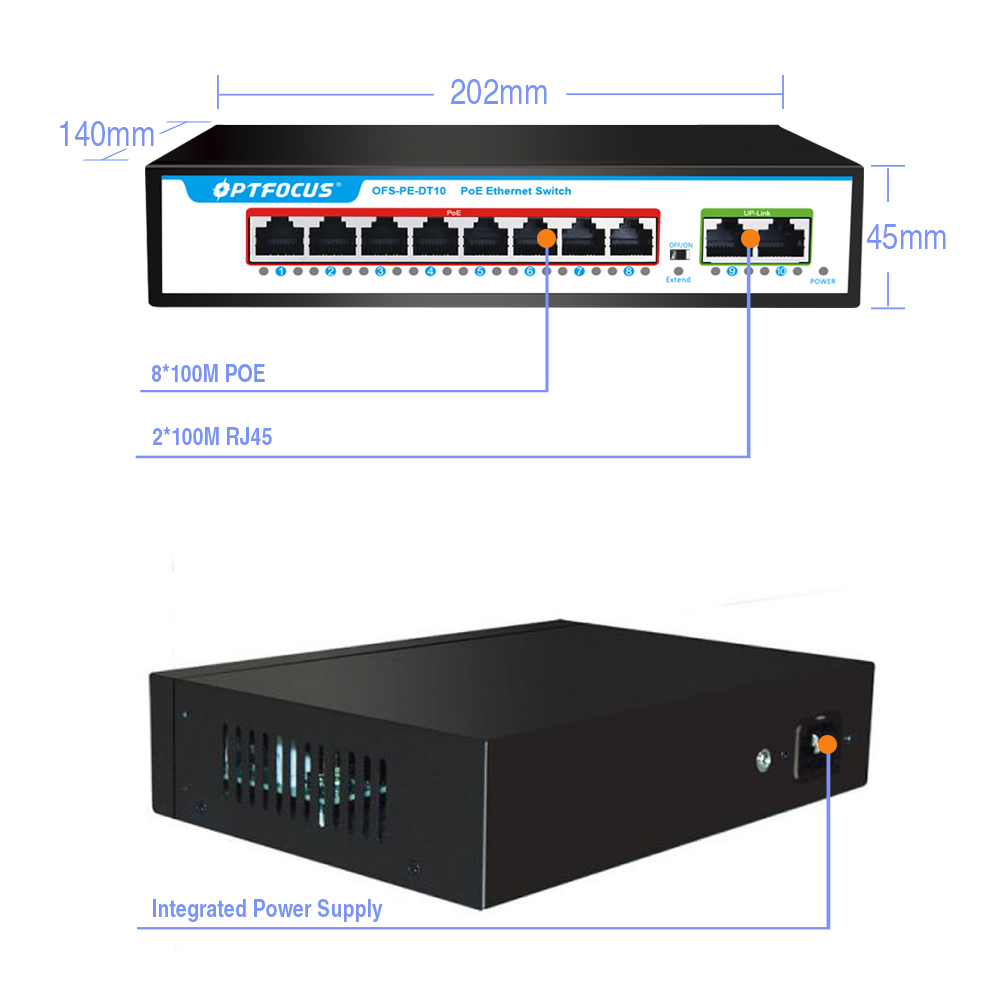

| Dimensions | 202*140*45mm(L*W*H) |
| Weight | 1.1Kg |
Delivery:
Company Information：
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.
Advantage of our company :
1 National High-tech enterprise certification;
2 Fiber Optical Innovative &production team Over 10 years;
3 Fiber optical active and passive components production Workshop;
4 Strict quality management system;
5 Professional One stop supply & service;
6 OEM&ODM available;
7 Reliable and Timely customer services.
Why choose Optfocus?
Quality system of ISO900,CE,FCC,ROHS registration
Manufacture system
R&D system
Purchasing system
Prompt delivery and remarkable services
Reasonable prices
Accept orders according to customer's demands
Rich experience of OEM & ODM co-operation
Shipment,payment and delivery
Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications *Router/Server interface
Other optical transmission systems
Standard Application
ATM SDH PDH SONET Network
Data Communication Network
Telecom Communication Network

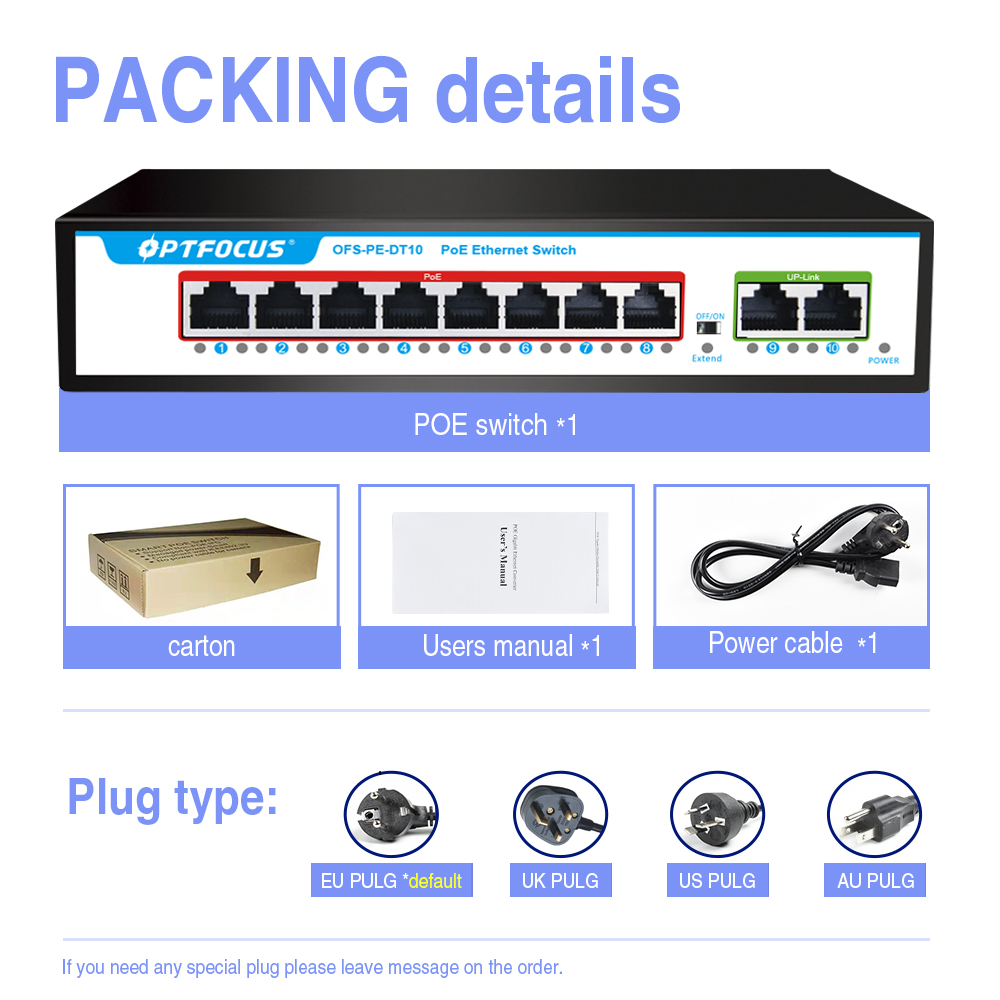

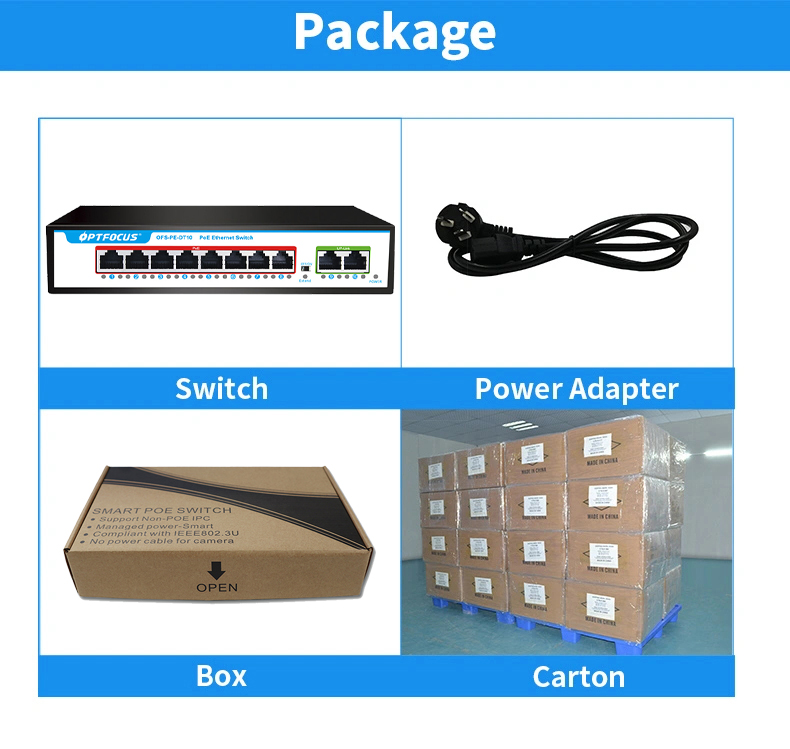

module/plastic bubble bag+Carton
