10G SFP Module 850/1310/1550nm 10km 20km 40km 60km Communication Equipment gbic optical transceiver sfp compatible
OFSP-8510G-03L
minimum order
1 piece
Country of Origin
Shenzhen
Quantity
- Model Number:OFSP-8510G-03L
- Type:Fiber Optic Transceivers, SFP+ 10G
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTX
- No. of Fiber:2.
- Application:(Data Center), FTTH FTTB FTTX Network
- Product name:Fiber Optical Transciever
- Wavelength:850nm/1310nm/1550nm
- Connector:LC UPC
- Distance:300m
Product Description
cisco compatible optical transceiver Sfp-10g-sr sfp module 10g 850nm 300m
OPTFOCUS SFP+ transceiver are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and
1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae
and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet.
1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae
and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-SW/SR/LR/ER, 1000 Base-SX Ethernet.
Features
* Compliant to SFP+ Electrical MSA SFF-8431
* Compliant to SFP+ Mechanical MSA SFF-8432
* Multi rate of up to 11.3Gb/s
* 10G Ethernet compliance
* Transmission distance up to 80km (SM fiber)
* Low power consumption
* 0C to +70C case operating temperature range
* Laser Class 1 IEC / CDRH compliant
* RoHS 6/6 compliant
* Compliant with product safety standards
* Compliant to SFP+ Mechanical MSA SFF-8432
* Multi rate of up to 11.3Gb/s
* 10G Ethernet compliance
* Transmission distance up to 80km (SM fiber)
* Low power consumption
* 0C to +70C case operating temperature range
* Laser Class 1 IEC / CDRH compliant
* RoHS 6/6 compliant
* Compliant with product safety standards

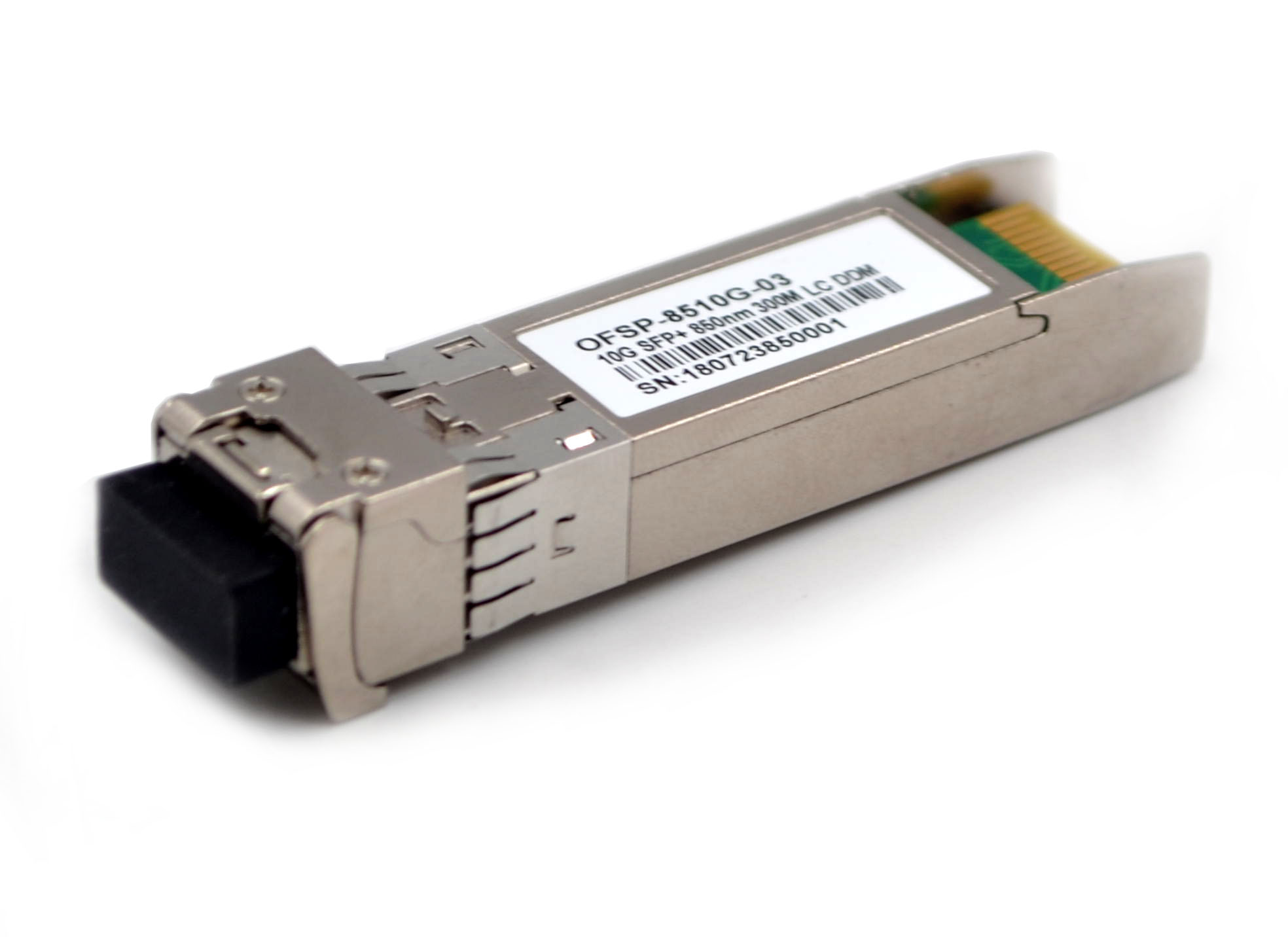

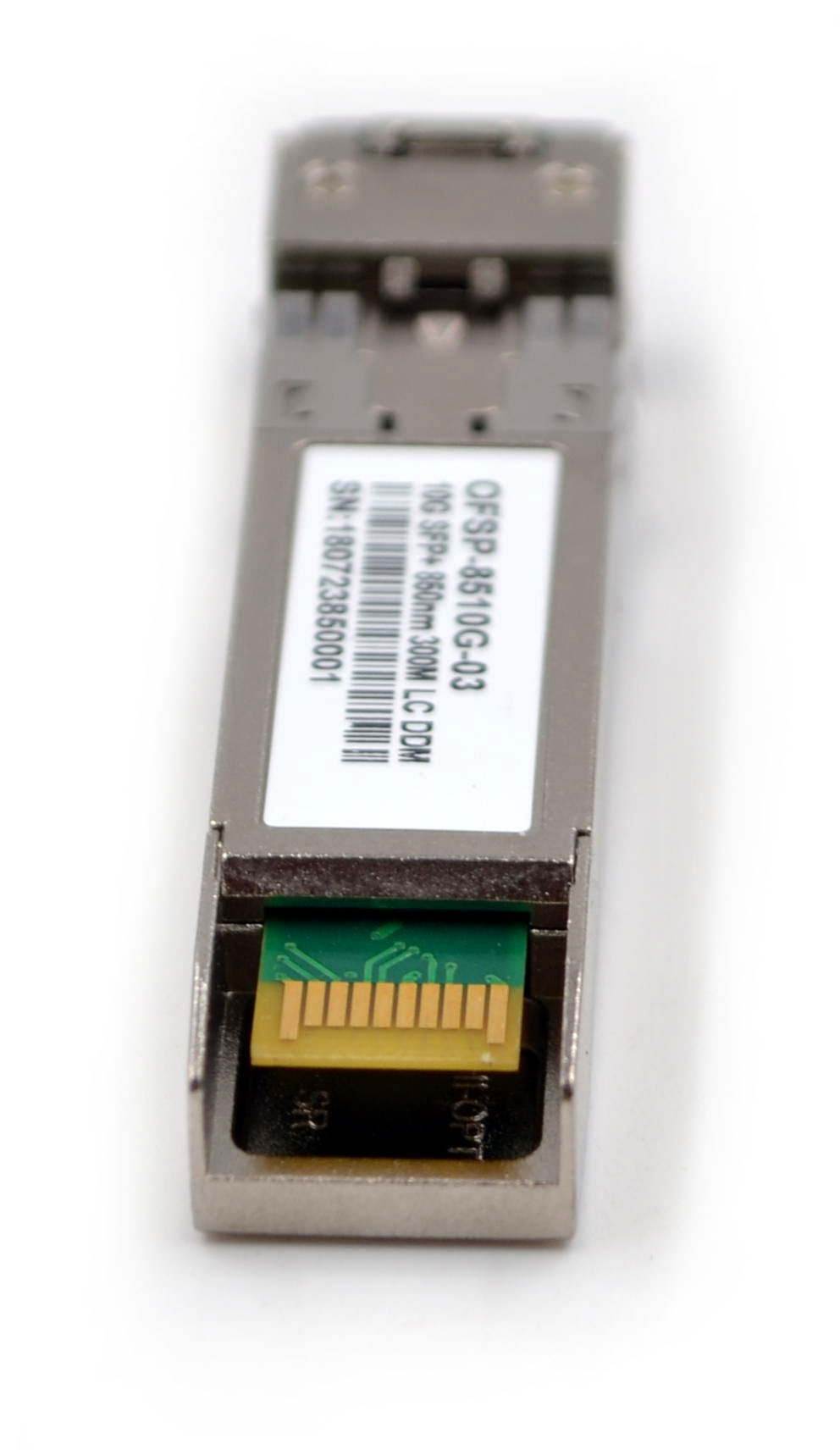

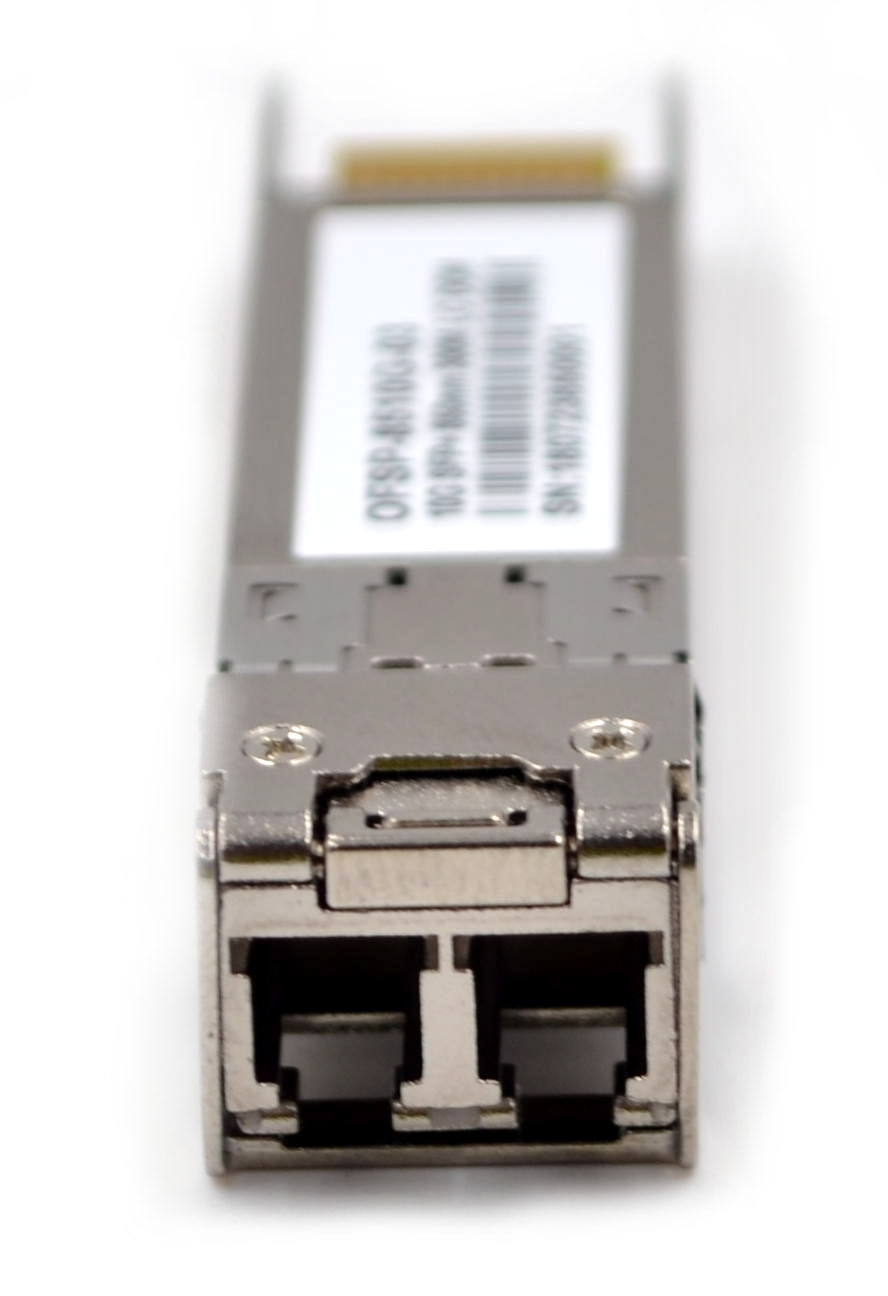

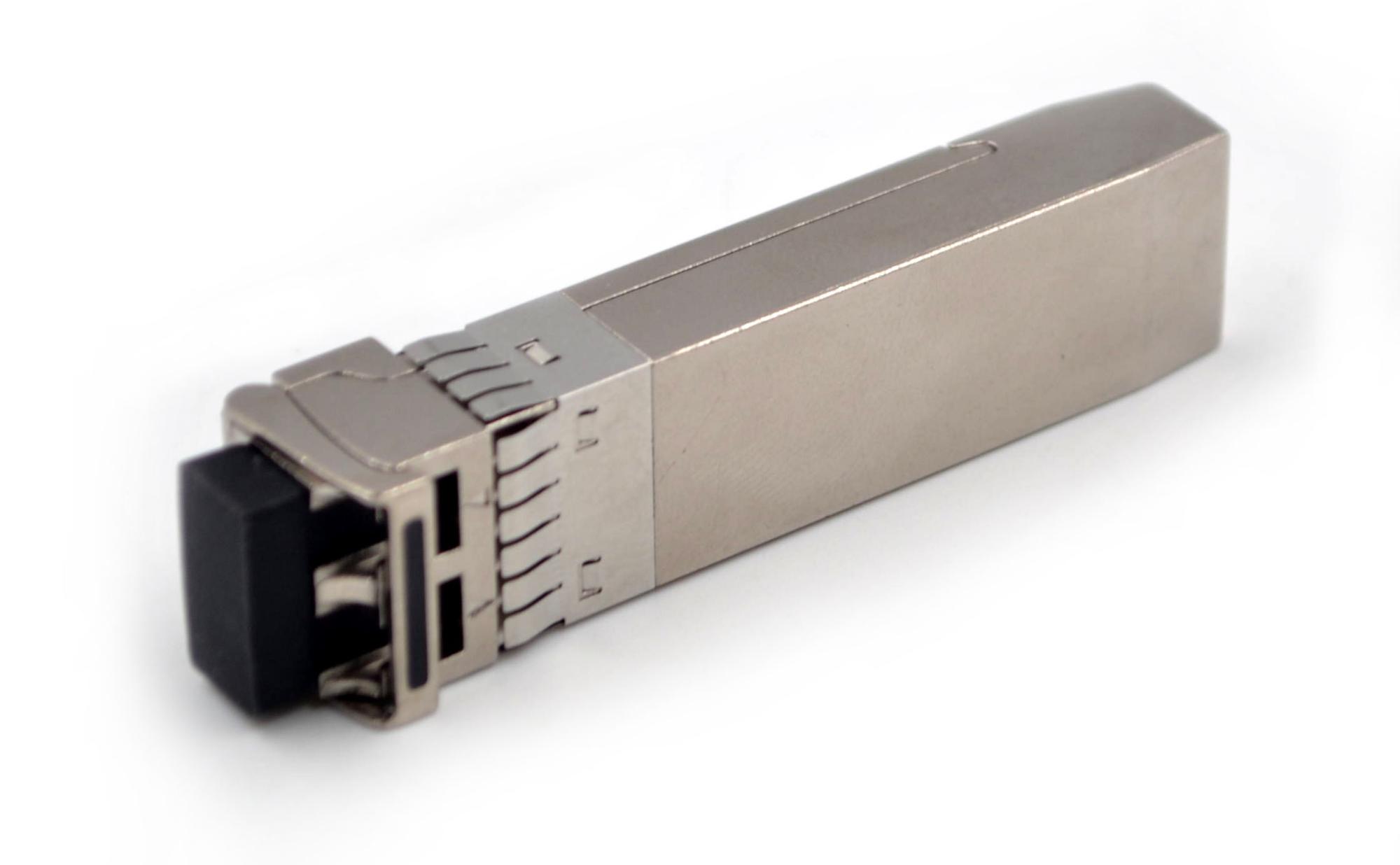

Details Images
Product Paramenters
* 10GBASE-SR, LR, ER, at 10.31Gbps
* 10GBASE-LW at 9.95Gbps
* 1000 Base-LX Ethernet
* 8XFC at 8.5Gbps
* 4XFC at 4.25Gpbs
* 2XFC at 2.125Gpbs
* 1xFC at 1.0625Gbps
* Other optical links
* 10GBASE-LW at 9.95Gbps
* 1000 Base-LX Ethernet
* 8XFC at 8.5Gbps
* 4XFC at 4.25Gpbs
* 2XFC at 2.125Gpbs
* 1xFC at 1.0625Gbps
* Other optical links
Order Information | ||||||||
P/N | Data Rate | Distance | LD | PD | ||||
OFSP-8510G-03 | 10Gbps | 300m | 850nm VSCEL | PIN | ||||
OFSP-1310G-2 | 10Gbps | 2km | 1310nm FP | PIN | ||||
OFSP-1310G-10 | 10Gbps | 10km | 1310nm DFB | PIN | ||||
OFSP-1510G-40 | 10Gbps | 40km | Cooled EML | PIN | ||||
OFSP-1510G-80 | 10Gbps | 80km | Cooled EML | APD | ||||
Product packaging
Company Profile
Who we are
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years’experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.
OPTFOCUS manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.
Our high quality products and outstanding service will help you win more market and customer!
Our Advantages
Advantages
* NationalHigh-tech enterprise certification；
* Fiber Optical Innovative &production team Over 10 years;
* Fiber optical active and passive components production Workshop;
* Strict quality management system;
* Professional One stop supply&service;
* OEM&ODM available;
* Reliable and Timely customer services;
* Fiber Optical Innovative &production team Over 10 years;
* Fiber optical active and passive components production Workshop;
* Strict quality management system;
* Professional One stop supply&service;
* OEM&ODM available;
* Reliable and Timely customer services;
Exhibition
