Low Price 25gbit/s 3m Sfp To Sfp+ Active Optical Cable Om3 /om4 Mm 1m 3m 10m For Data Center Routers 25g Sfp28 Aoc Sfp

OFS-AOC-SFP28-1M

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFS-AOC-SFP28-1M
Type:SFP Modules
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Use:Servers, switches, storage and host card adapters
Warranty Time:1Year
Network:Wireless Lan, Wired LAN, Ip, wifi
Support:Hot Pluggable
Keywords:25g AOC sfp
Diameter:3mm
Date Rate:25G
Warranty:1 Year
Fiber Type:MMF
Wavelength Range:850nm
Cable color:Aqua(OM3),Megenta(OM4)
Maximum link length:70m on OM3 and 100m on OM4
Compliant:SFF-8431

Low Price 25gbit/s 3m Sfp To Sfp+ Active Optical Cable Om3 /om4 Mm 1m 3m 10m For Data Center Routers 25g Sfp28 Aoc Sfp

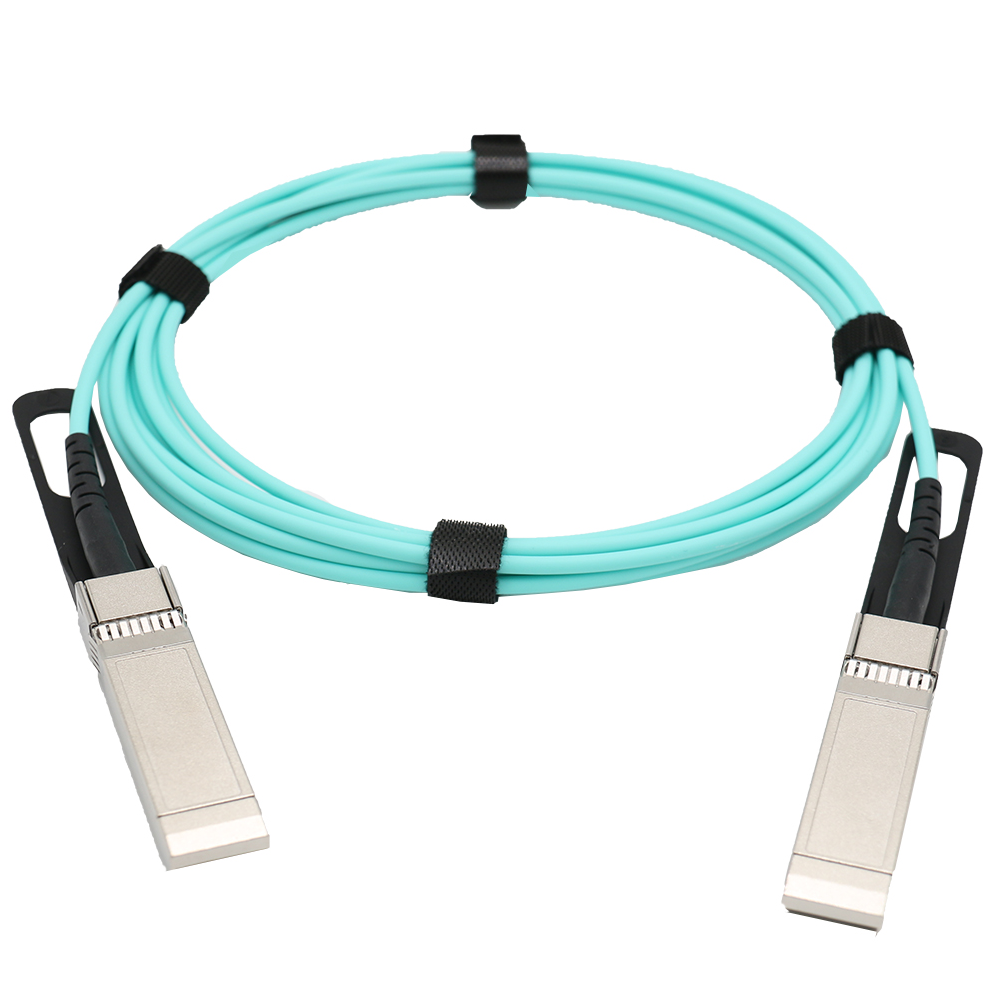

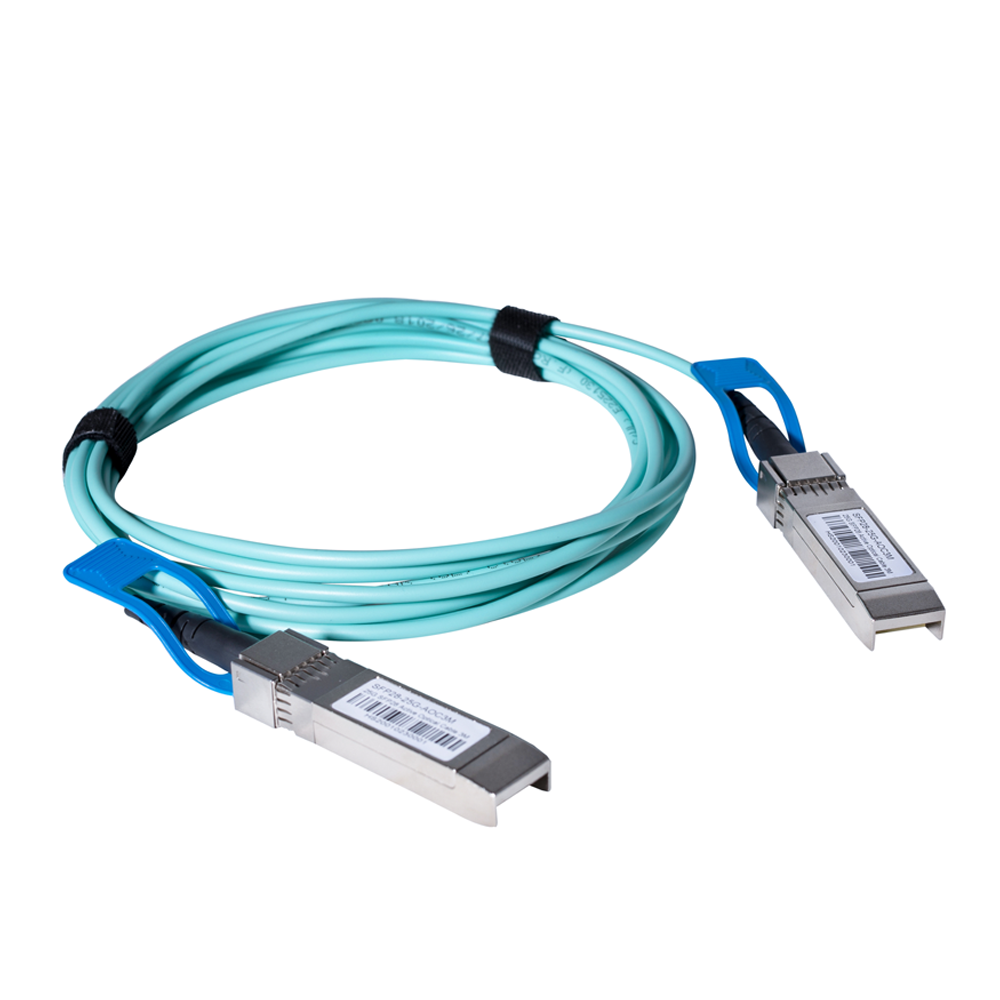

25G SFP28 Active Optical Cable

Description

25G SFP28 active optical cable (AOC) components are supported by active circuits, which have a longer transmission distance than passive or active SFP28 copper cables. It is specially designed for high-speed, short-range data links via optical fiber lines. SFP28 AOC provides signal integrity, longer distance, superior electromagnetic immunity and better bit error rate. It is a cost-effective solution for data center/storage and all short-range data applications.

2 Features:

Electrical interface compliant to SFF-8431

850nm VCSEL laser and PIN photo-detector

Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

Digital diagnostics functions are available via the I2C interface

RoHS compliant

Hot Pluggable

3Applications :

25GBASE-SR Ethernet

InfiniBand QDR, SDR, DDR

Servers, switches, storage and host card adapters

Parameter	Value	Units
Diameter	3	mm
Minimum bend radius	30	mm
Length tolerance	Length< 1 m: +5 /-0	cm
	1 m ≤length ≤ 4.5 m: +15 / -0	cm
	5 m ≤length ≤ 14.5 m: +30 / -0	cm
	Length≥15.0 m +2% / -0	m
Cable color	Aqua(OM3),Megenta(OM4)

Pls feel free to contact us any time,we will offer best price and best quality products.Thank you very much for you inquiry.

Compay Profile

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a National High-tech Enterprise integrating with R&D, manufacturing, marketing and service to our worldwide partners and customers.

OPTFOCUS with more than 13 years’s experience focus on high-performance fiber optical communication solutions&products,network security monitoring transmission solutions& products.FTTH/FTTx Access solutions&products.
