40g Qsfp+ To 4x10g Sfp+ Aoc Breakout Cables 1m 3m 5m 100m Ddm Om3 Fiber Active Optical Transceiver Sfp Aoc Cable
- Model Number:OFS-AOC-QSFP+-4F-1M
- Type:SFP Modules
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:40 Gigabit Ethernet
- Warranty Time:1Year
- Network:Wireless Lan, Wired LAN, Ip, wifi
- Date Rate:40G
- Product name:40G QSFP+ to 4x10g SFP+
- Diameter:3mm
- Warranty:1 Year
- Channels:4 full-duplex
- Cable Type:OM3,OM4
- Wavelength Range:850nm
- Compliant:SFF-8436 and SFF-8431
- Power supply voltage:3.3V
- Operating temperature:0°C to +70°C
40g Qsfp+ To 4x10g Sfp+ Aoc Breakout Cables 1m 3m 5m 100m Ddm Om3 Fiber Active Optical Transceiver Sfp Aoc Cable

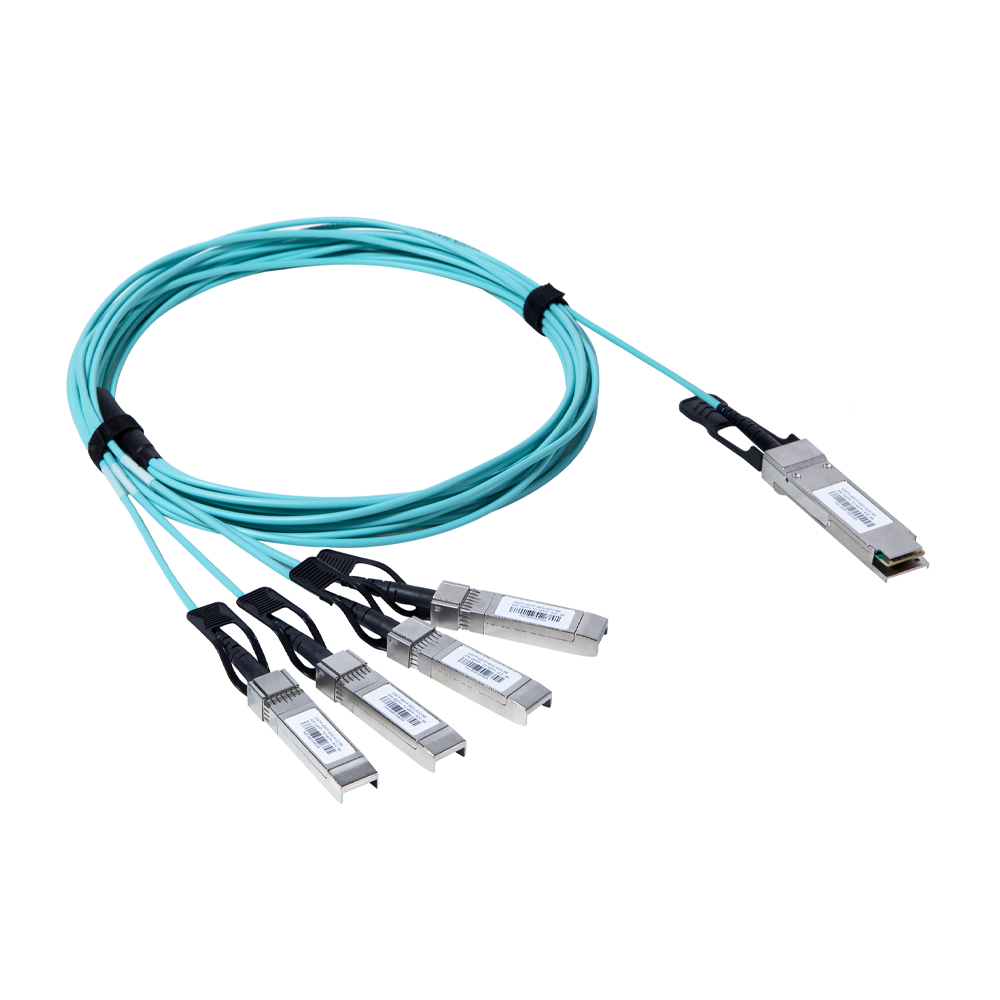

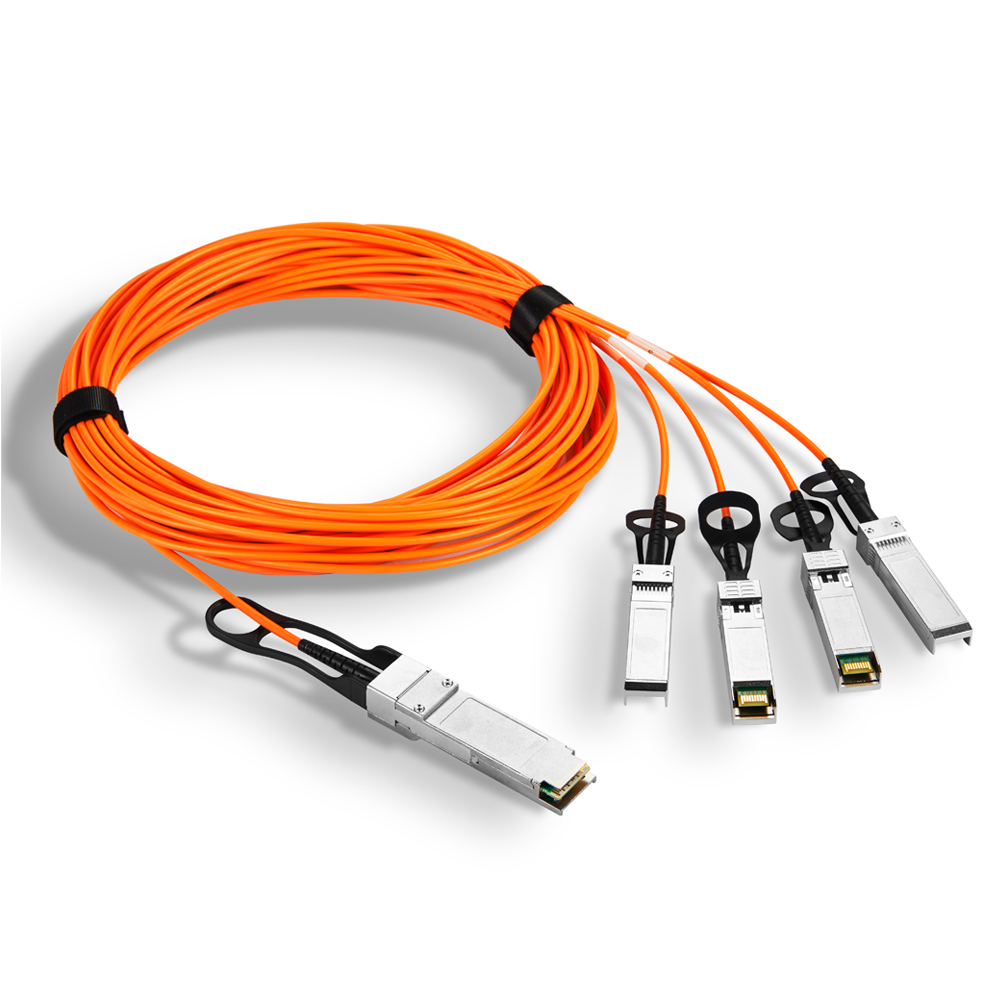

40G QSFP to 4xSFP+ breakoutActive Optical Cable
Description
40G QSFP to 4xSFP+ active optical cable is a high-performance, low-power, long-distance interconnection solution that supports 40G.
40G QSFP to 4xSFP+ is a combination of 4 full-duplex channels, each of which can transmit data at a rate of up to 10GB/s, providing an aggregation rate of 40GB/s.
40G QSFP to 4xSFP+ active optical cable (AOC) can be used as an alternative to QSFP passive and active copper cables.
2Features:
Electrical interface compliant to QSFP+ connector
(SFF-8436) and SFP+ connectors (SFF-8431)
Hot Pluggable
850nm VCSEL transmitter, PIN photo-detector receiver
Operating case temperature: 0 to 70℃
3.3V power supply voltage
All-metal housing for superior EMI performance
3Applications
40 Gigabit Ethernet
Fibre Channel Applications
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters
4.1Product length tolerance
Cable Length(Unit: m) | Tolerant(Unit: cm) |
<1.0 | +5/-0 |
1.0~4.5 | +15/-0 |
5.0~14.5 | +30/-0 |
≥15.0 | +2%/-0 |
4.2Nominal length of product tapping cable
Total Length X (Unit: m) | Breakout Point Measured from QSFP LQ (Unit: m) | Breakout Point Measured from SFP LS(Unit: m) |
1 | 0.3 | 0.7 |
2 | 0.6 | 1.4 |
3 | 1 | 2 |
5 | 2 | 3 |
7 | 4 | 3 |
10 | 7 | 3 |
15 | 12 | 3 |
20 | 17 | 3 |
25 | 22 | 3 |
30 | 27 | 3 |
40 | 37 | 3 |
50 | 47 | 3 |
Compay Profile
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a National High-tech Enterprise integrating with R&D, manufacturing, marketing and service to our worldwide partners and customers.
OPTFOCUS with more than 13 years’s experience focus on high-performance fiber optical communication solutions&products,network security monitoring transmission solutions& products.FTTH/FTTx Access solutions&products.
