Optfocus Triple Play Factory Low Price GPON OLT Network PON WDM 1550 CATV 4 8 16 32 Output Port Mini EDFA

• Model Number:OFS-A6102
• Type:optical amplifier EDFA
• Place of Origin:Guangdong, China
• Brand Name:Optfocus
• Use:FTTH
• Warranty Time:1 year
• Network:Wireless Lan, Wired LAN
• Model Number::OFS-A6102
• Item name::1550nm CATV Optical Amplifier EDFA
• Wavelength(nm)::1540~1560
• Optical return loss (dB)::>45
• Bias oscillation dispersion(PS)::<0.5
• Input power::-5dbm~+10dbm

Optfocus Triple Play Factory Price GPON OLT Network PON WDM 1550 CATV EDFA 4 8 16 32 Output Port

1.Overview

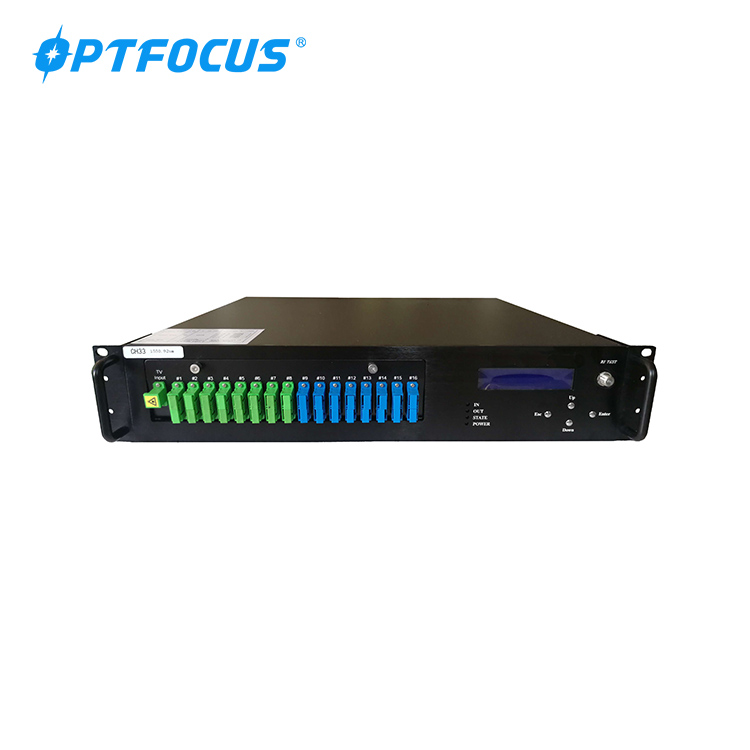

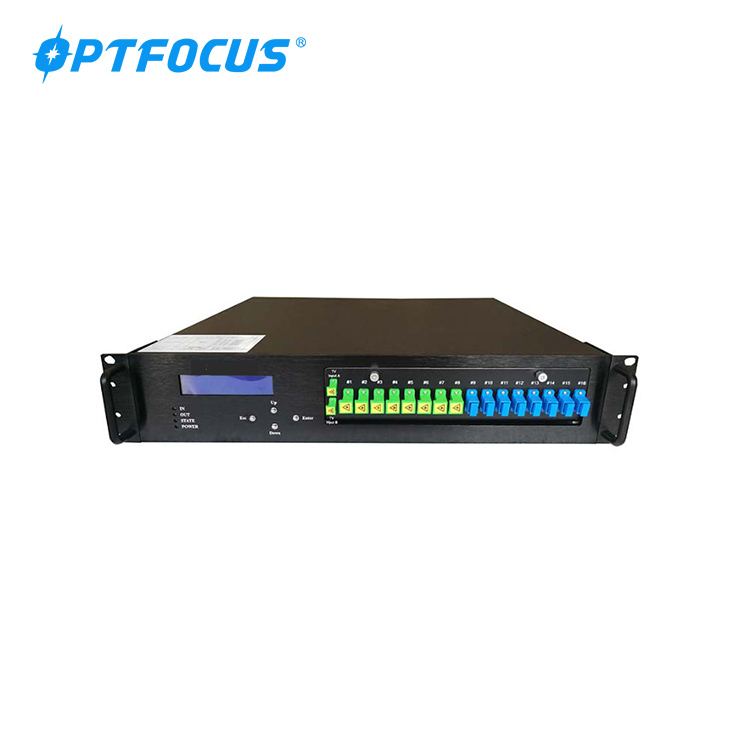

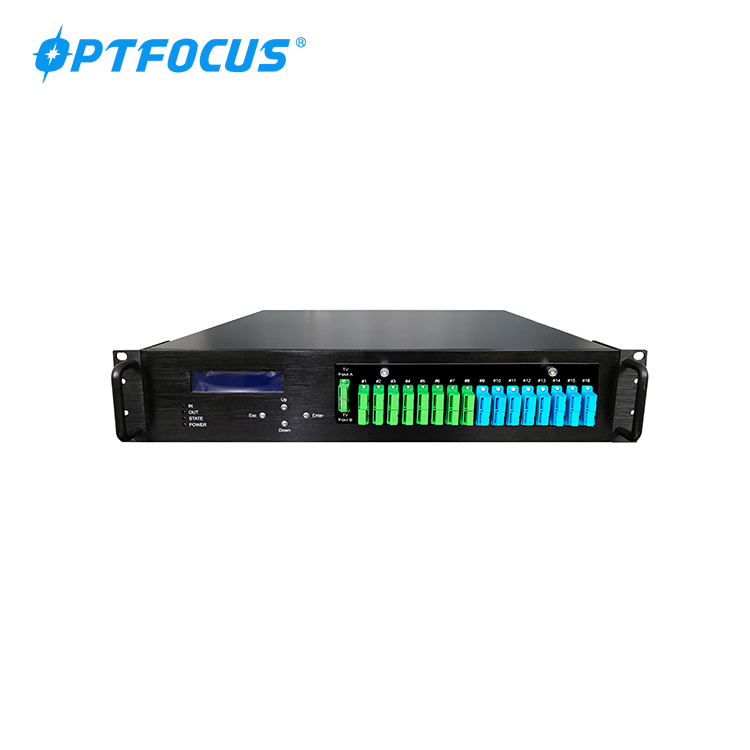

The OFS-A6102 series Ytterbium and Erbium Doped Fiber Amplifiers (YEDFA) are designed for using in CATV,FTTX and HFC application. It is optimized for 1550nm wavelength and is packaged in a 2U 19 inch rack housing. The product is flexible enough to perform all the requirements of CATV,FTTX and HFC applications. The device chooses a high performance PUMP laser and circuit (include ACC and APC) and optical output power is adjustable and flexible for network link loss budget. The OFS-A6102 series products also provide monitors and associated alarms for all vital characteristics. The status and management of the device can be monitored and managed either from the LCD front panel display &Web or remotely via Ethernet based-SNMP NMS. The device also support multiple optical output by build-in PLC splitter, which minimizes the investment cost.

2.Features

ØStandard 19 inch 2U Rack YEDFA

Ø8/16/32 output ports optional

ØOutput powers rang from 8/16/32*16, 8/16/32*19, 8/16/32*22dBm

ØOutput optical power adjustable -3~0dB

ØWide input dynamic range(0 to +10dBm)

ØHigh Isolation input & output(30dB for max)

ØWeb browser management

ØAutomatic Power Control (APC) or Automatic Current Control (ACC)

ØLCD front panel display for local monitor

ØRemote management via SNMP (Ethernet Interface)

1.Parameters
