Netlink Free Video to Media Converter 1 Port Media Converter 100M duplex Ethernet Media Converter

OFS-DS-20

minimum order

1 piece

Country of Origin

SHENZHEN,GUANGZHOU,HONGKONG

Quantity

Contact Now

add to cart

Model Number:OFS-DS-20
Type:FTTx Solutions
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS
Product Name:10/100M Media Converter
Connector:dual fiber
Packet Forwarding Rate:148800 pps/port
Forwarding Mode:Store-and-Forward
LED Indicators:Power: PWR;FX Link/Act; TP 1000(1-8); TP Link/Act(1-8)
Power Supply:AC100~250V, DC5V 1A
Power Comsumption:2.5W
Working temperature::-10 ~ +55℃
Storage Temperature:-20 ~ +70℃
Relative Humidity:5%~95 %( no condensation)

Netlink Free Video to Media Converter 1 Port Media Converter 100M duplex Ethernet Media Converter

Product Description

LFP & Jumbo Frame Support 10/100M Ethernet Fiber Media Converter

OFS-DS-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.

The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.

Technical Specification

Product Name		10/100M Media Converter
Product Model		OFS-DS-20
Connector		Dual Fiber: 1* 100Mbps,SC/ST/FC Optional
		RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media		10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media		Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode		Store-and-Forward
Forwarding Rate:		148800pps/port
Operating standard		EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power	external	Input:AC 100~250VOutput:DC 5V 1A ,(default). or Input:DC:-36V~-72V;Output:DC 5V 1A .(Optional)
		USB power supply(Optional).
Power consumption		2.5W
LED		Power, FX 100,Link/Act, TX 100,FDX, Link/Act.
Working Environment		Working temperature: -10~55℃ ; Storage temperature: -20~75℃ Relative Humidity: 5%~95 %( no condensation)

Feature

1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps fiber
Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Standard
Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
UTP port supports MDI / MDI-X auto crossover.
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Data Transfer Rate:
- TP: 10/100Mbps - FX: 100Mbps
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
LED indicators: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act
Supports link fault pass through function.
Design of internal or external power supply for selection by end-users
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

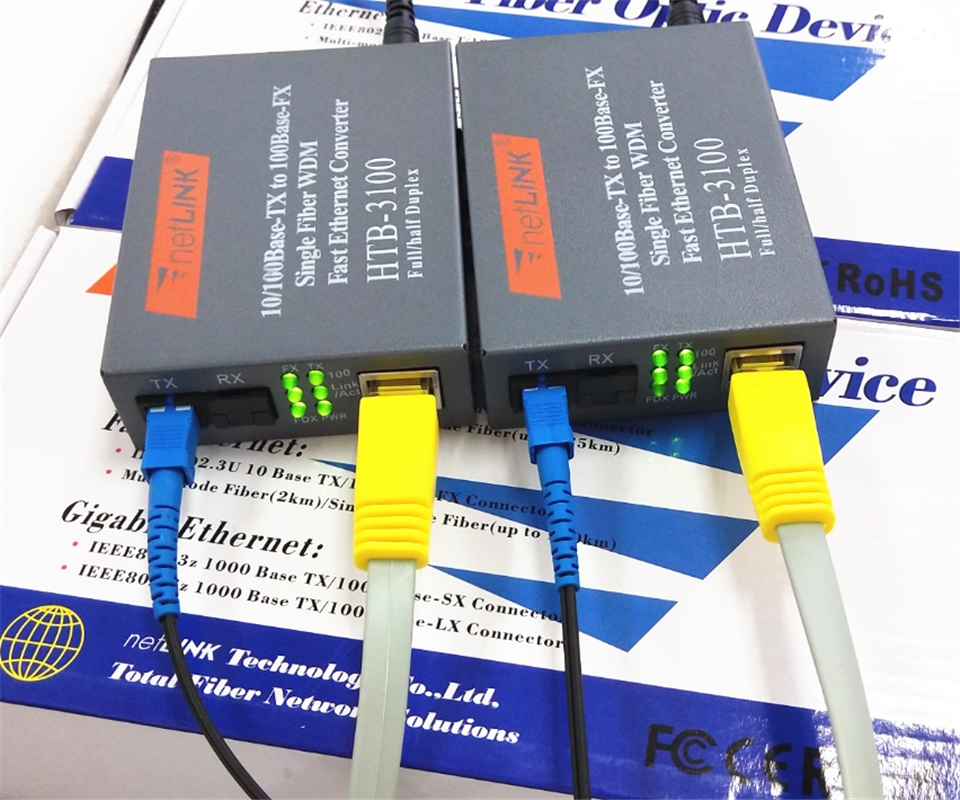

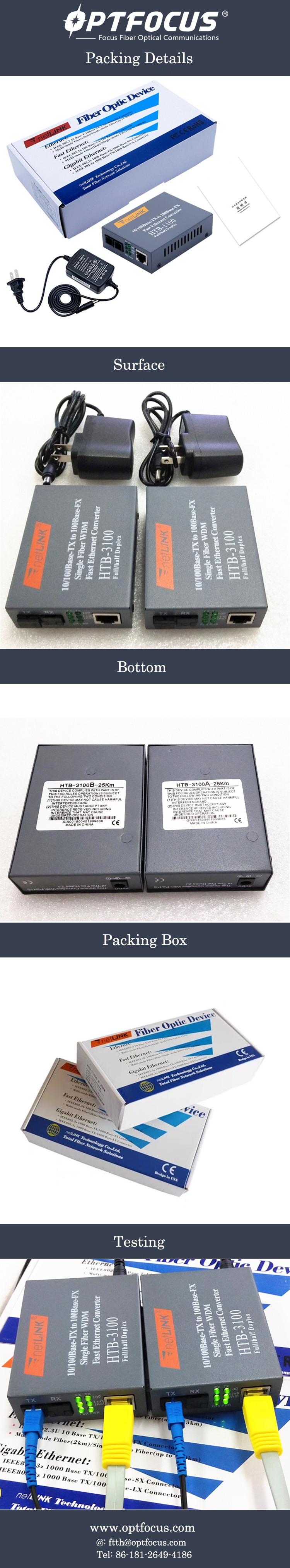

Products Details

1 PCS/Box, 40Boxes/CTN, 48*43*38CM, 16.5KG/CTN

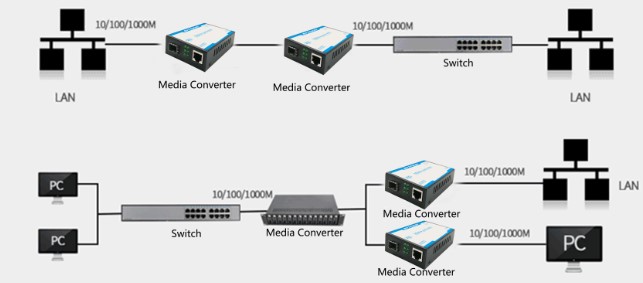

Solution

Quick view

Notification:

About purchasing and shipping:

1) Products are in stock. Contact us and you will buy and ship directly.
2) Shipping cost is depend on address and nation. Please contact us to check the further cost.
3)40PCS/CTN (Neutral type). Purchase order NO MOQ
4) Shipping is clearly through express. There will be a little bit delay of status updating. Please be patient. Deliver time is about 5-10 workdays.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.

About products and service:

1) Products NO MOQ. we support OEM & ODMservices
2) Power adaptor originally: EU.Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
3) Warranty: 1 year.

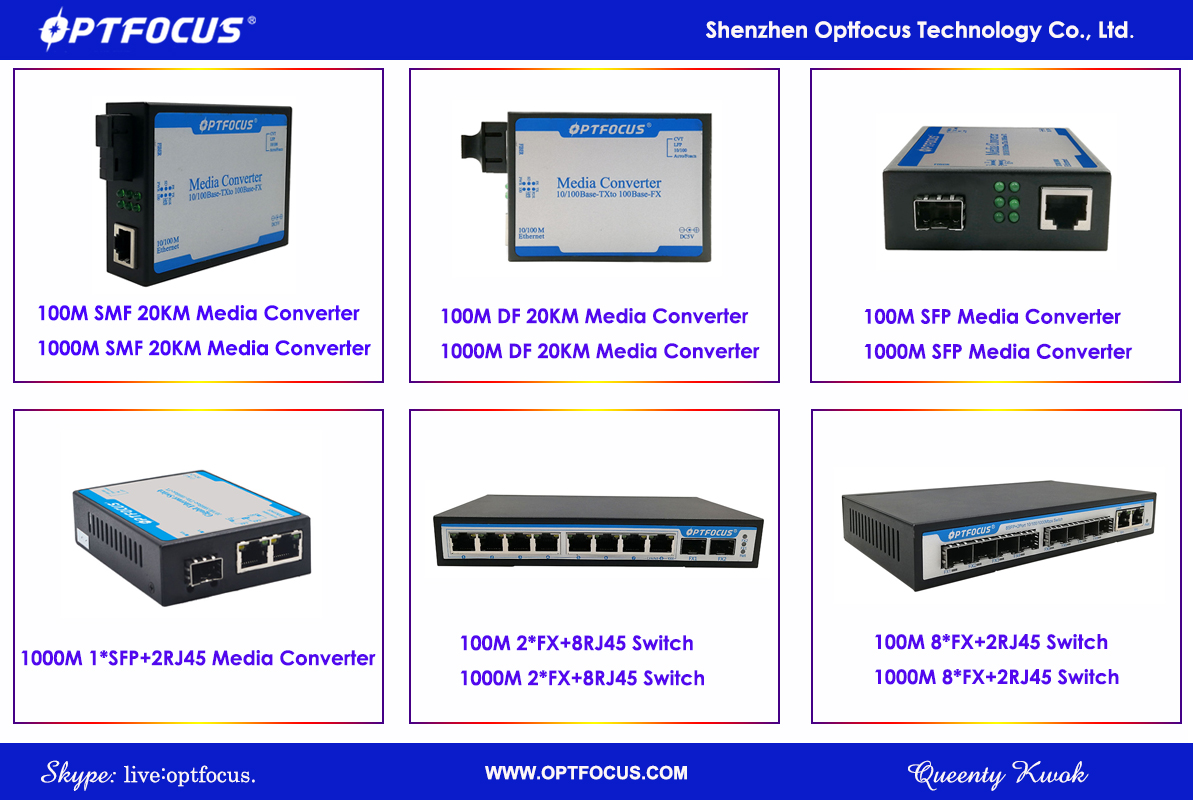

Related Products

Order information

Model	Product description
OFS-DM-2	10/100M multimode Converter, dual fiber,the max optical fiber distance up to 2 or 5 km,external PS
OFS-DS-20	10/100M singlemode Converter, dual fiber,optical wavelength 1310nm,SC,20km,external PS
OFS-DS-XX	10/100M singlemode Converter, dual fiber,max optical fiber distance from 20 to 120 km, “xx” for the amount of distance,external PS
