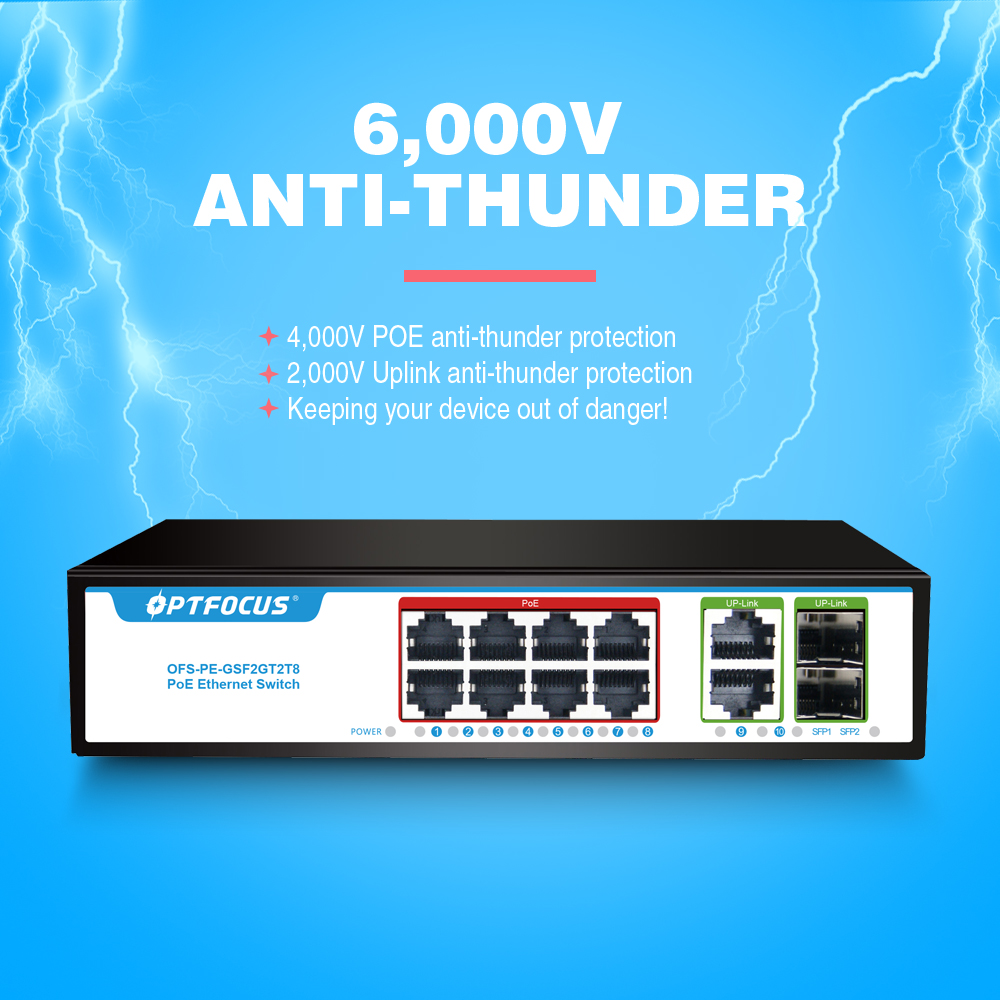

Factory OEM/ODM POE Switch 4 8 16 24 port 10/100M ethernet fiber switch POE gigabit with 2 SFP ports
- Private Mold:Yes
- Products Status:Stock
- Ports:12
- Transmission Rate:10/100/1000Mbps
- Function:POE, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:120W
- Brand Name:OPTFOCUS
- Model Number:OFS-PE-GSF2GT2T8
- Place of Origin:Guangdong, China
- Product name:12 Port POE Switch
- Connector Type:8*10/100/1000mbps POE port,2*1000mbps Uplink RJ45 port,2*1000mpbs SFP
- PoE Output Power:15.4W/30W
- Network Medium:Cat5 (UTP) or more
- Data Rate:1000M
- Backboard Bandwidth:20Gpbs Full duplex
- Installation:Wall mounting/ Desktop
- Color:Black
- Casing:Metal
- Certification:CE
Factory OEM/ODM POE Switch 4 8 16 24 port 10/100M ethernet fiber switch POE gigabit with 2 SFP ports
Description
The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

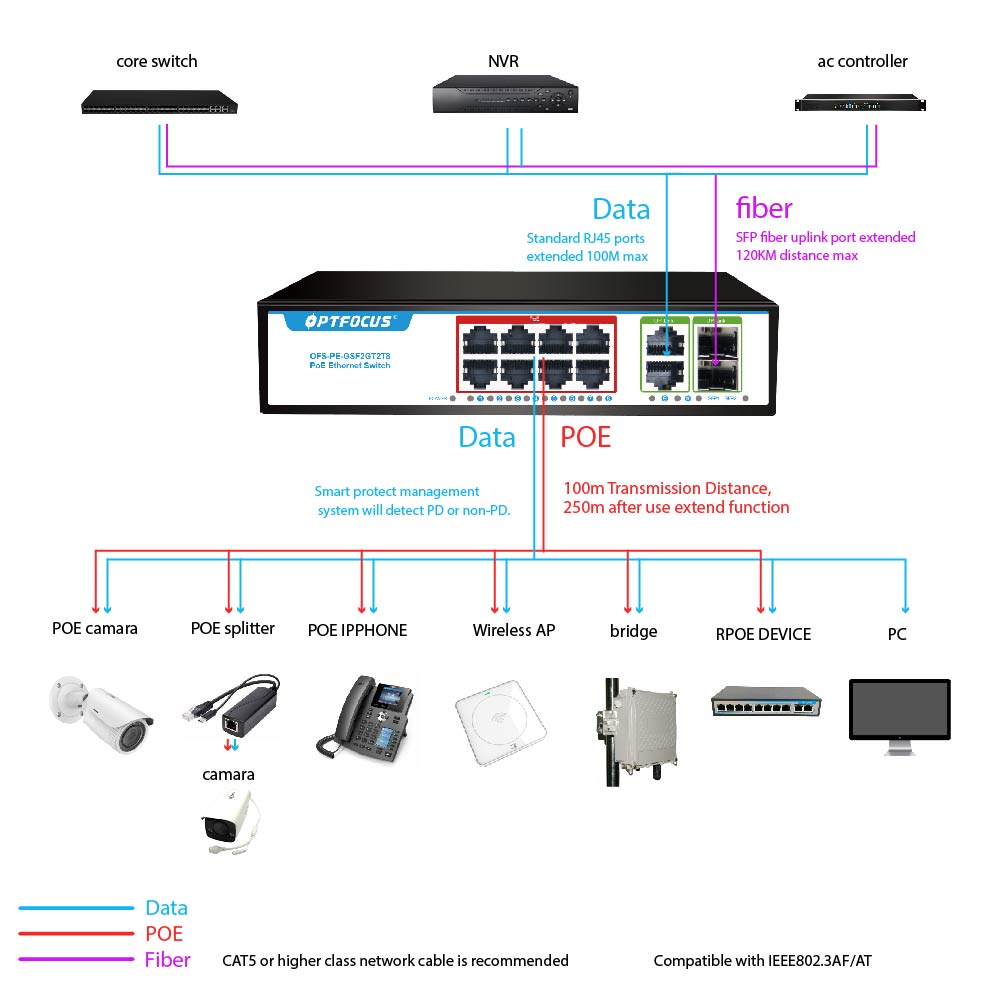

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.
Features
8*10/100/1000mbps POE port,UP-Link2*1000mRJ45port+2*1000m SFP
100m Transmission Distance,1-8 port support VLAN mode
Compatible with IEEE802.3AF/AT
The specification of the built-in power supply: 120W(52V2.3A) Full duplex
All port supported by MDI/MDIX auto flip and self negotiation
Supply8pcs 10/100/1000Mpbs adaptive high speed forwarding data packetnon-lost port.
Each port max. power supply reached 30W.
Low heat design, safe and reliable, high stability
Application: Wireless Access Point² IP Camera
IP Phone Computer Networks
Technical parameter list
Connector | 8*10/100/1000mbps POE port,2*1000mbps UplinkRJ45port,2*1000mpbs SFP |
Power Supply Type | Build In, 1/2+,3/6- |
PoEOutput Power | 15.4W/30W |
DATA PIN | 1/2+3/6- ,4/5+ 7/8- |
Network Medium | Cat5 (UTP) or more |
Network Standards | IEEE 802.3i 10BASE-TIEEE 802.3u 100BASE-TX IEEE 802.3x Flow ControlIEEE 802.3af Power over Ethernet |
PoE power | Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
Processing types | Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
Address database Table Size | 8KMAC address |
Buffer memory | 48Kb embedded memory per unit |
Backboard Bandwidth | 20Gpbs Full duplex |
Network Latency | Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
Input | 110V-240V |

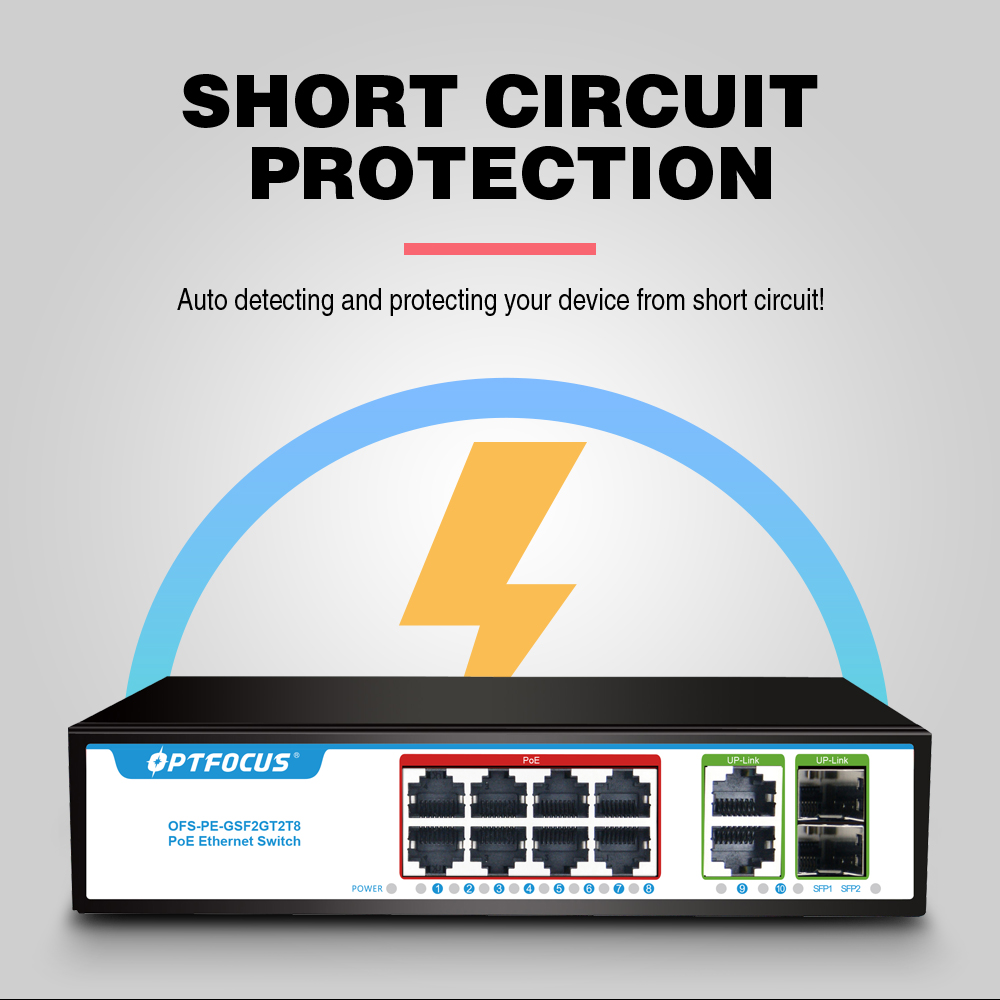

Overload current protection | Present |
Casing | Metal |
Installation | Wallmounting/ Desktop |
LED Indicators | System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
Operating temperature | -10-55℃(32-104℉) |
Storage temperature | -40-70℃(14-158℉) |
Operating humidity | 90% maximum relative humidity, non-condensing |
Storage humidity | 95% maximum relative humidity, non-condensing |
ISO | Manufactured in ISO9001 facility |
Safety | CE |

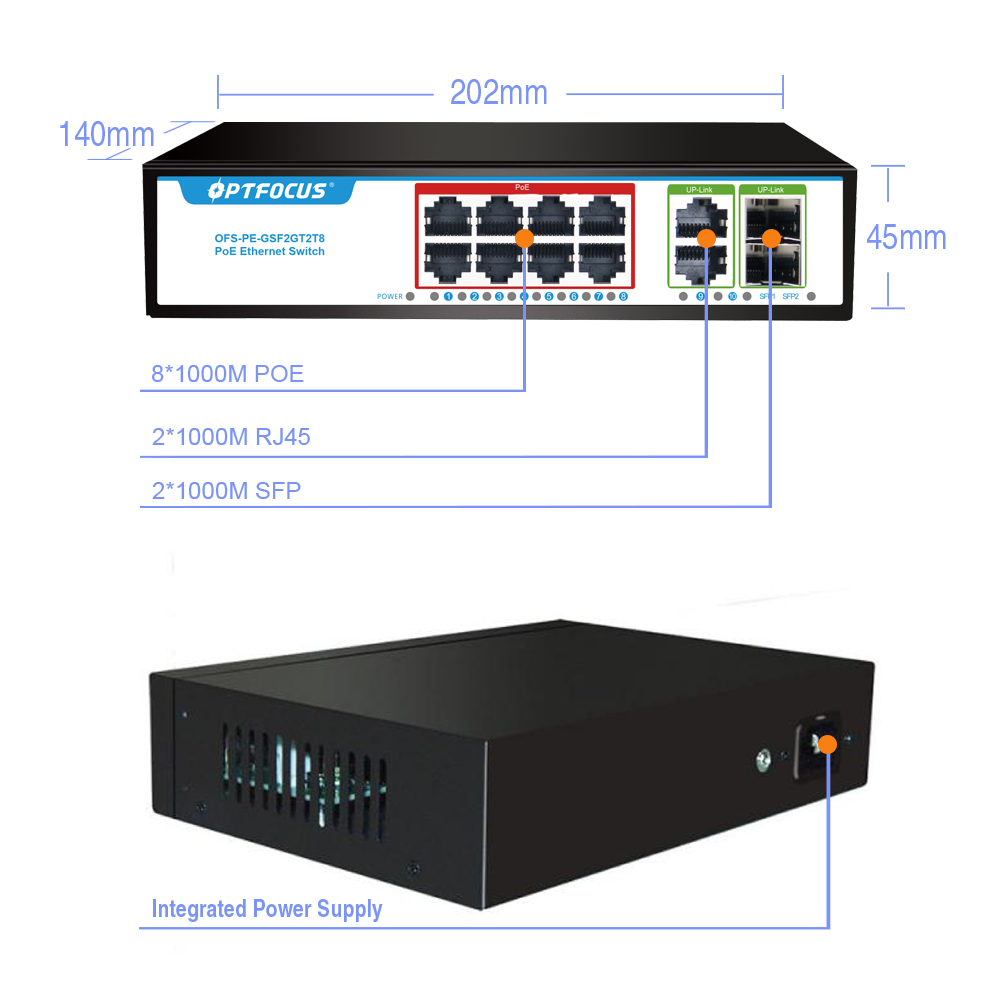

Dimensions | 202*140*45mm (L*W*H) |
Weight | N.W:0.9Kg G.W:1.1Kg |
