optical communication equipment fiber switch sc 1.25G fibera switch for cctv optical fiber switch
OFS-GSF1T8-20A
minimum order
1 piece
Quantity
- Model Number:OFS-GSF1T8-20A
- Type:Fiber Switch
- Place of Origin:Chongqing, China
- Brand Name:OPTFOCUS
- Use:FTTH/FTTB/FTTC
- Warranty Time:1 year
- Network:boardband
- Keyword:Fiber Optical Switch
- Fiber Port:SFP/Single/Dual Fiber optional
- Distance:20KM
- Wavelength:Tx1310nm Rx1550nm
- Power supply:12V DC
- Forwarding Mode:Store-and-Forward
- Environment temperature:0 ~ +55℃
- Storage temperature:-20 ~ +70℃
- MAC Address Table:4K
- keywords:optical fiber switch
- Certification:ce
Product Description
OFS-GSF1T8-20A/B Serial
OFS-GSF1T8AB-20 series is a Layer 2 + Optical Ethernet switch with 1*1000Mbps Optical fiber ports and 8*10/100/1000Mbps RJ45
ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high
performance-price ratio.
OFS-GSF1T8AB-20’s high availability and reliability, as well as the rich security features, makes it ideal for secure data
transmission.for connecting with devices like computer, switch, hub, server, etc.
ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high
performance-price ratio.
OFS-GSF1T8AB-20’s high availability and reliability, as well as the rich security features, makes it ideal for secure data
transmission.for connecting with devices like computer, switch, hub, server, etc.
Features

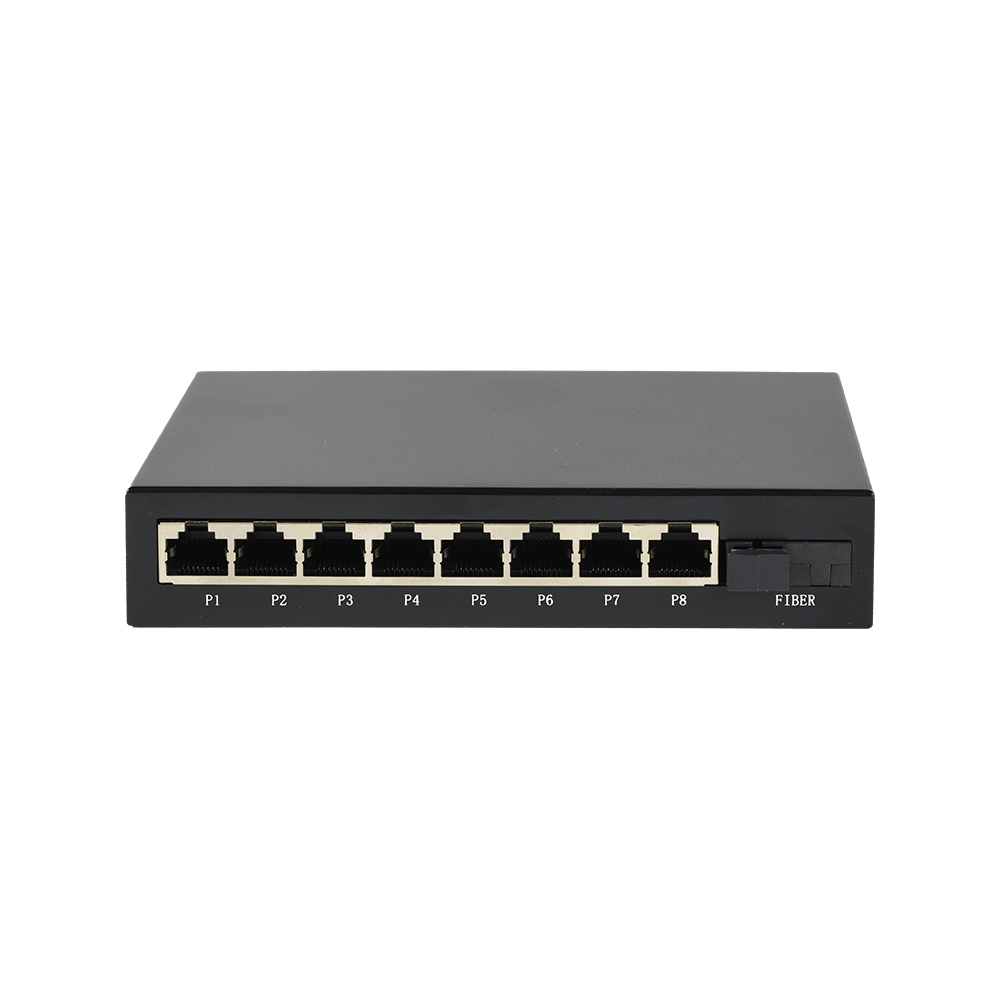

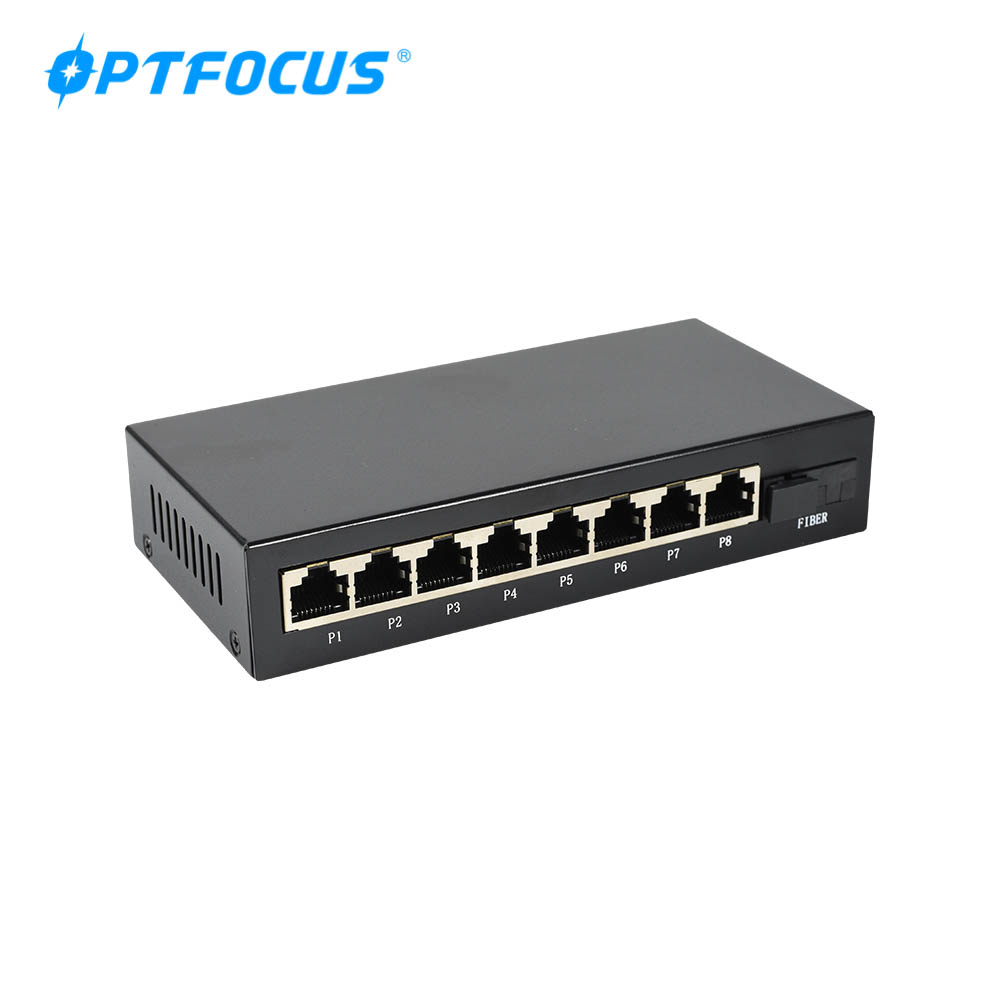

* 8 port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps Fiber Slot
* Automatic MAC address learning and aging
* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
* LED indicators for monitoring power/link/activity
* Supports10/100/1000Mbps-Full/Half-duplex
* Excellent heat elimination without cooling fan.
* Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
* Support dual power redundancy(optional)
* The built-in 12V lead acid battery charging circuit. (optional)
* Automatic MAC address learning and aging
* 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
* LED indicators for monitoring power/link/activity
* Supports10/100/1000Mbps-Full/Half-duplex
* Excellent heat elimination without cooling fan.
* Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
* Support dual power redundancy(optional)
* The built-in 12V lead acid battery charging circuit. (optional)
Specification
Product Name | 8-port 10/100/1000Mbps + 1-port 1000Mbps Fiber Slot |
Product Model | OFS-GSF1T8AB-20 |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
Fiber port | LC,SC,ST,FC Optional |
Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Fiber Media | Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100/120KM |
Performance Specification | Bandwidth: 20Gbps Packet Forwarding Rate:1488000pps/port MAC Address Table:4K |
Forwarding Mode | Store-and-Forward |

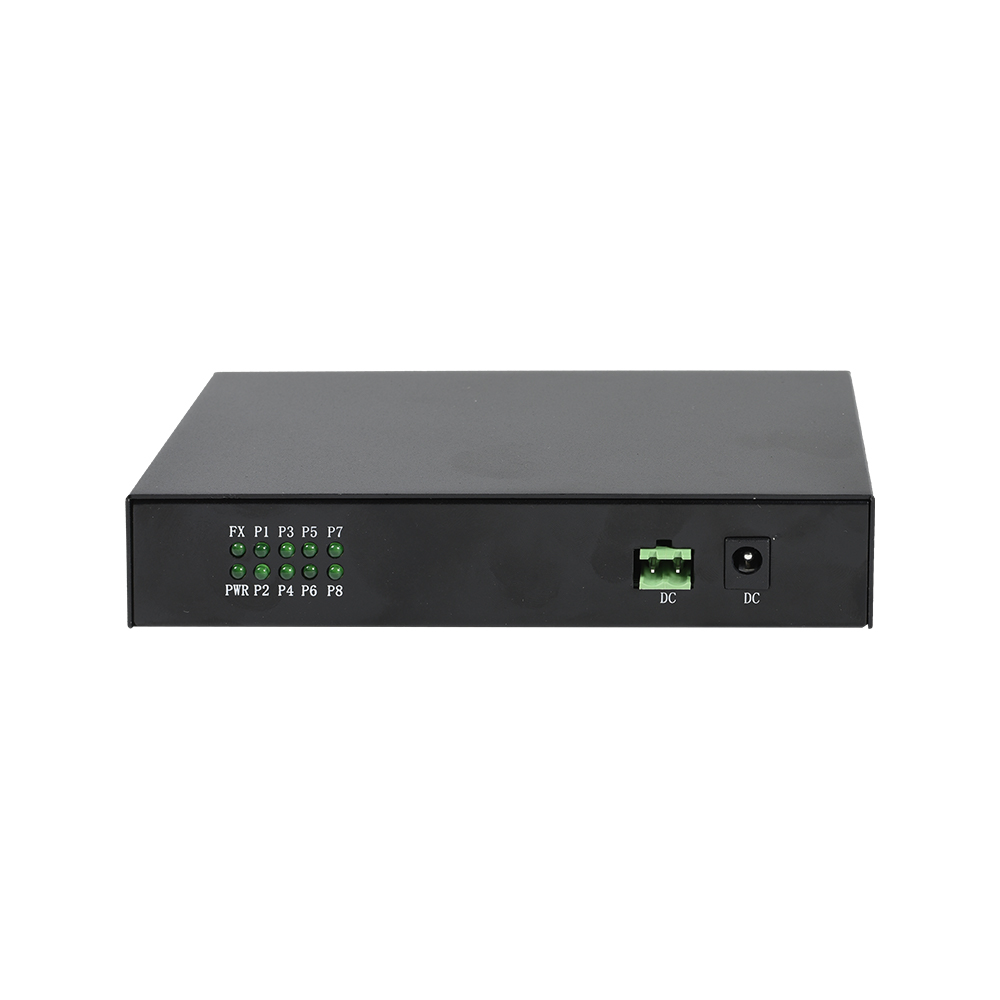

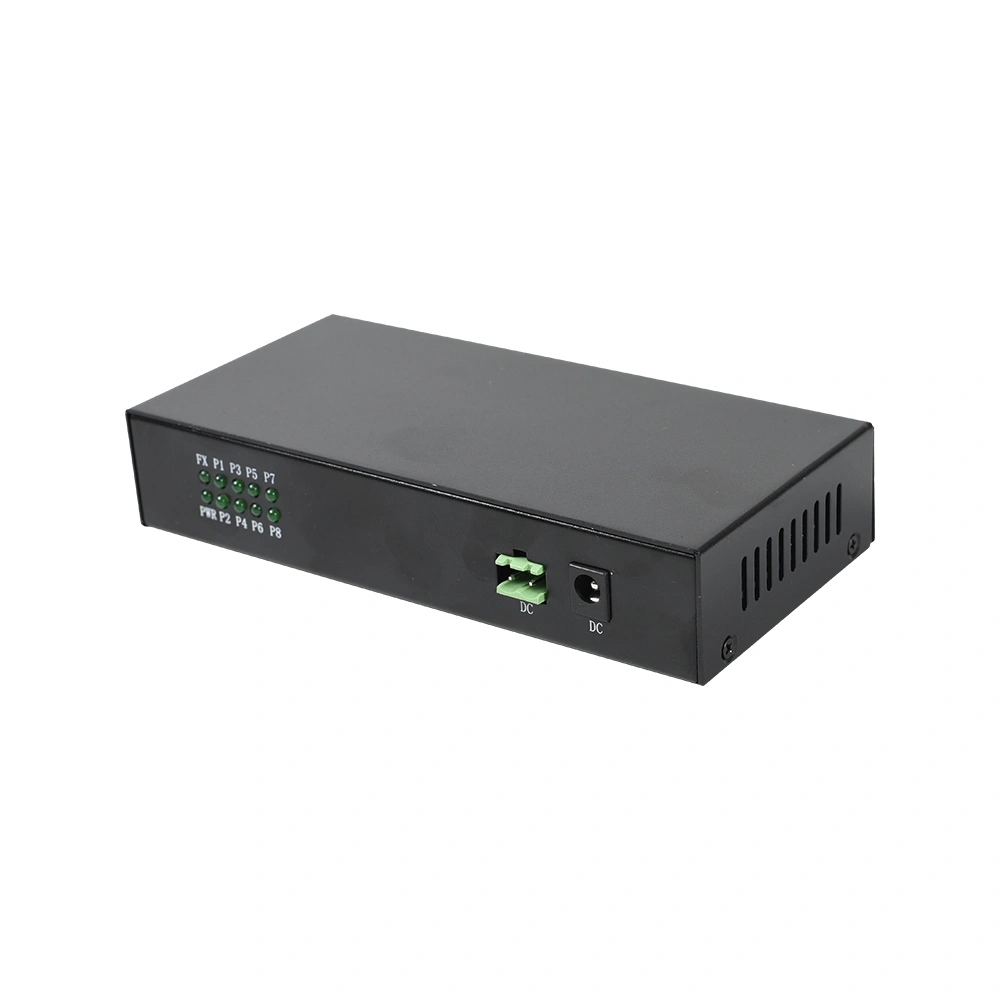

LED Indicators | Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8) |
Power Supply | Input: AC100 ～ 250V, Output:DC12~15V. |
Max power | 7W |
Environment temperature | 0 ～ +55℃ |
Storage temperature | -20 ～ +70℃ |
Humidity | 5% ～ 90% |
