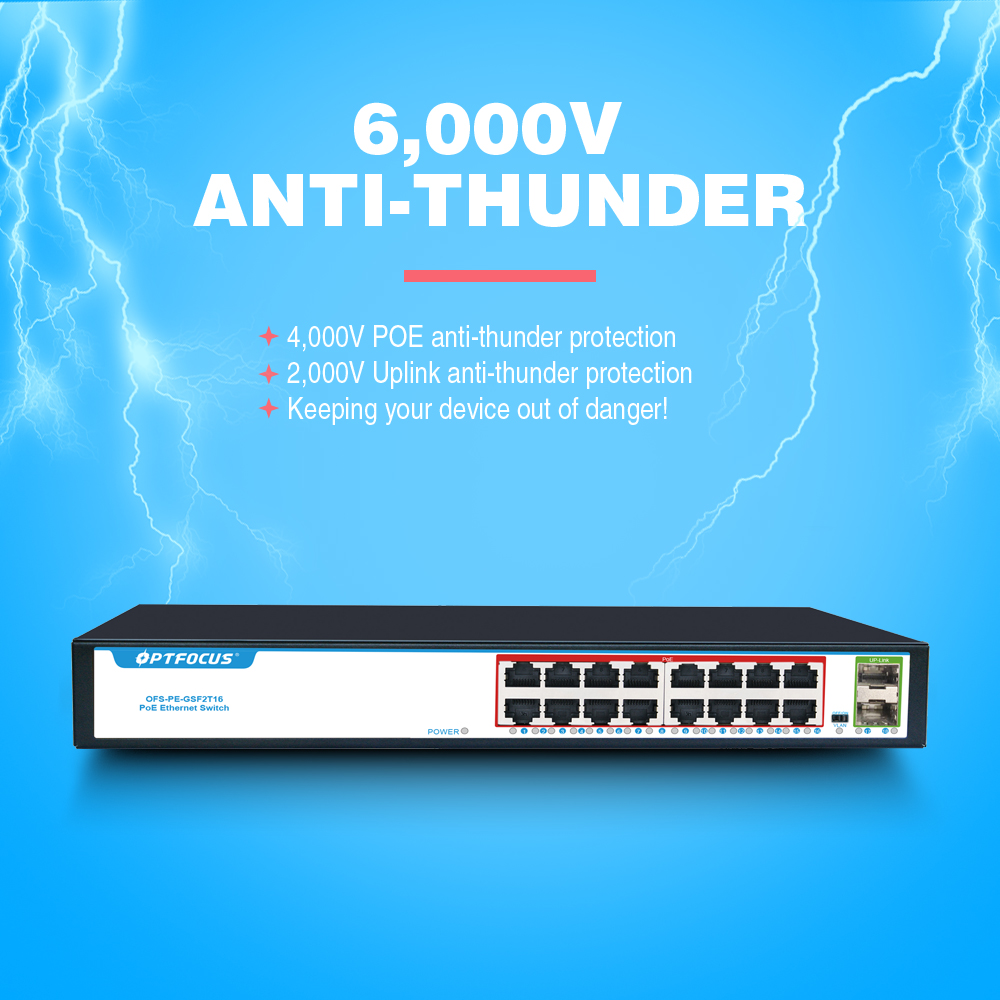

Gigabit Unmanaged rack mount 16+2 Port POE Network Switch
- Private Mold:Yes
- Products Status:Stock
- Ports:≤ 8
- Transmission Rate:10/100/1000Mbps
- Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:12G
- Brand Name:OPFTOCUS
- Model Number:OFS-PE-GSF2T16
- Place of Origin:GUA
- Product Name:PoE Switch
- Certification:CE FCC RoHS ISO Etc
- PoE Ports:8 Ports Support POE
- Warranty:1year
- Uplink Ports:RJ45 Ports
Gigabit Unmanaged rack mount 16+2 Port POE Network Switch
Product Name | 16-Ports AF PoE Switch |
Model | OFS-PE-GSF2T16 |
Connector Type | 16x 10/100/1000M copper cable RJ45 ports |
Network Media | 100BASE-T: Cat3,4,5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
Bandwidth | 1.2Gbps (non-blocking) |
Address Database Size | 1K |
Forwarding Mode | Store-And-Forward |
Network Protocols | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af |
LED Display | System: power supply; Every Port: connecting, PoE working status |
Power Supply | Power input: AC100-240V 50/60Hz; (every country use a custom power plug) |
PoE Ports | Port 1-8support POE |
PoE Port Power | 15.4W for each POE port |
PoE Standard | IEEE 802.3af |
Led indicator | Green: Ethernet Red:PoE SW: On: VLAN,100meters Flashing: VLAN,250meters Off: VLAN Closed,100meters Flashing: VLAN Closed, 250meters |
Working Environment | Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing |
Certification | CE Mark ,commercial; CE/LVD EN60950, RoHS |
Radiation | CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B |
Transmission Distance | Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.) |
Warranty | 2year warranty |
