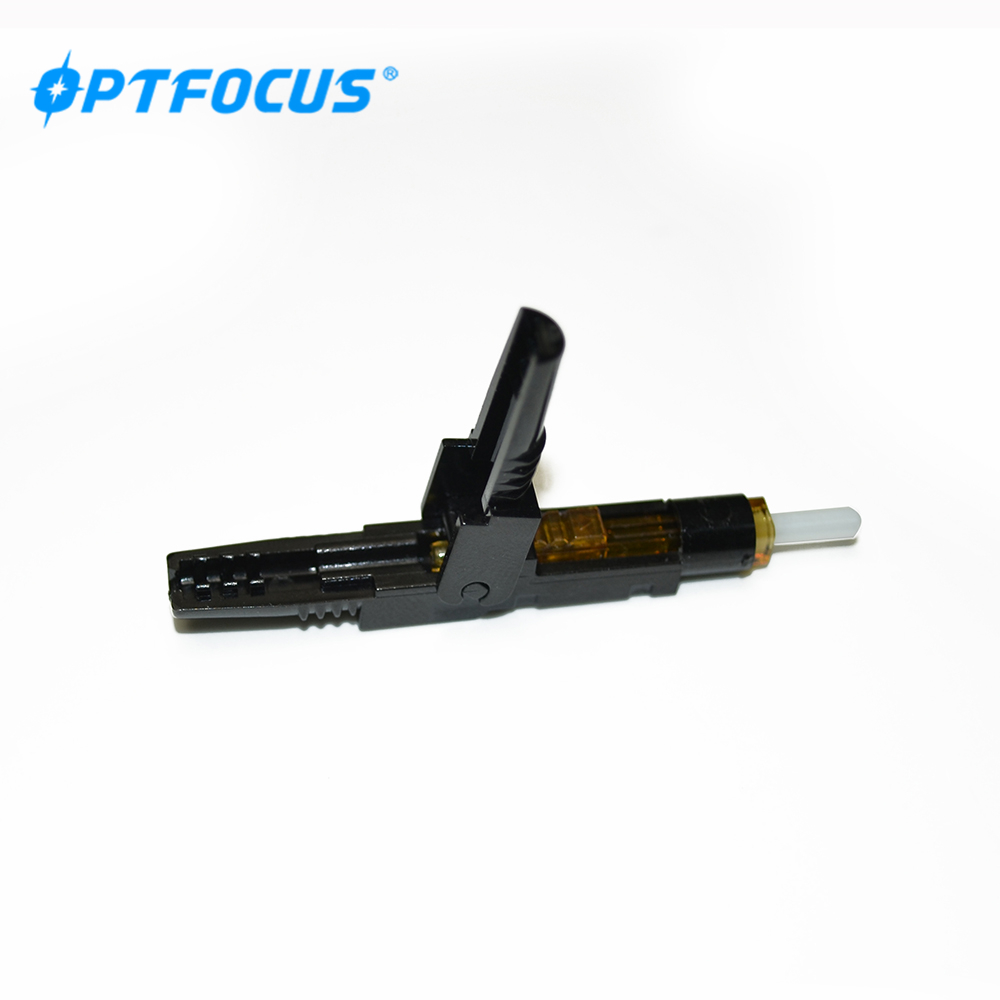

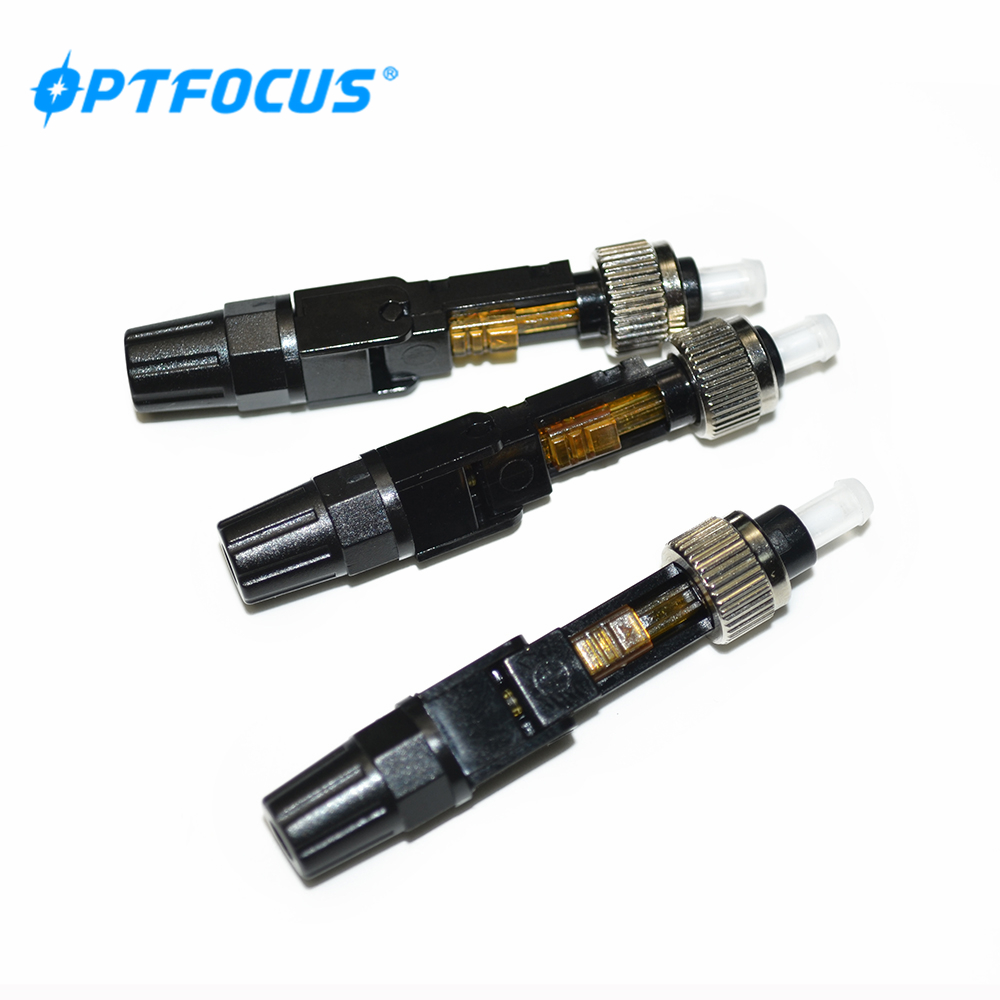

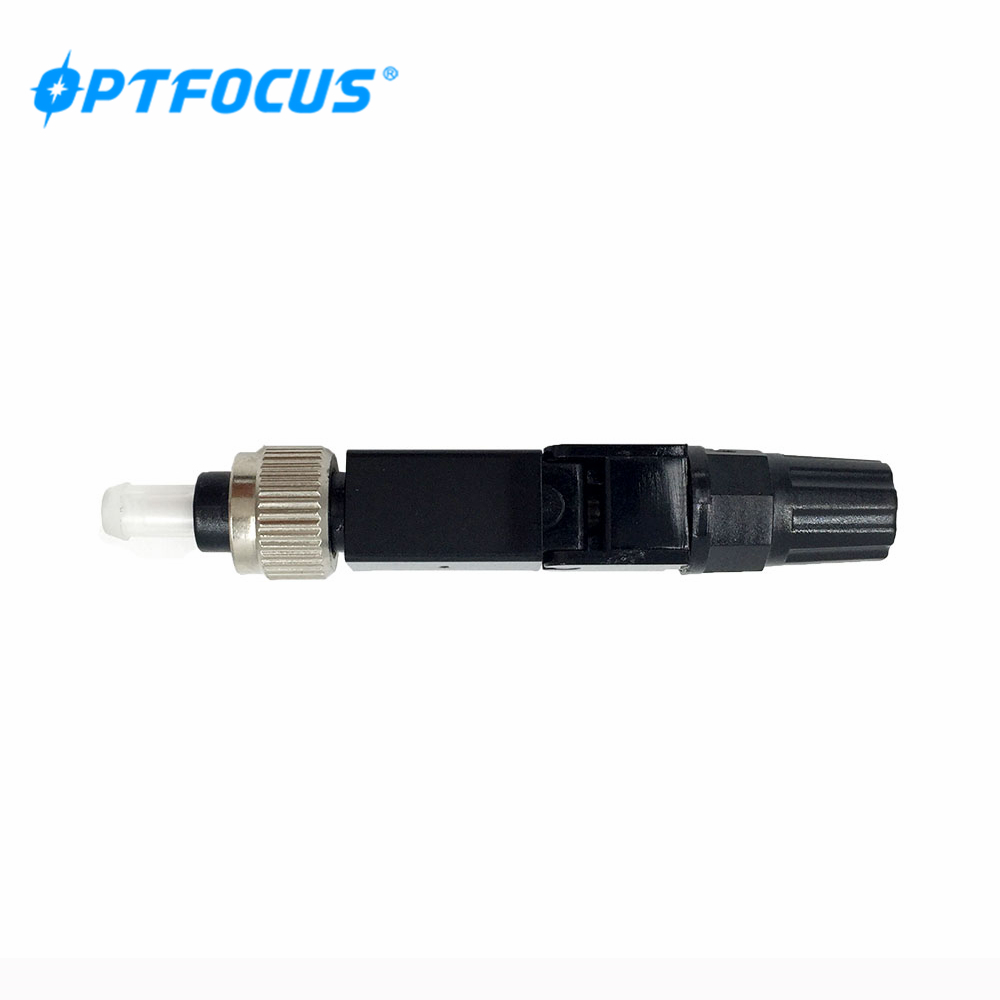

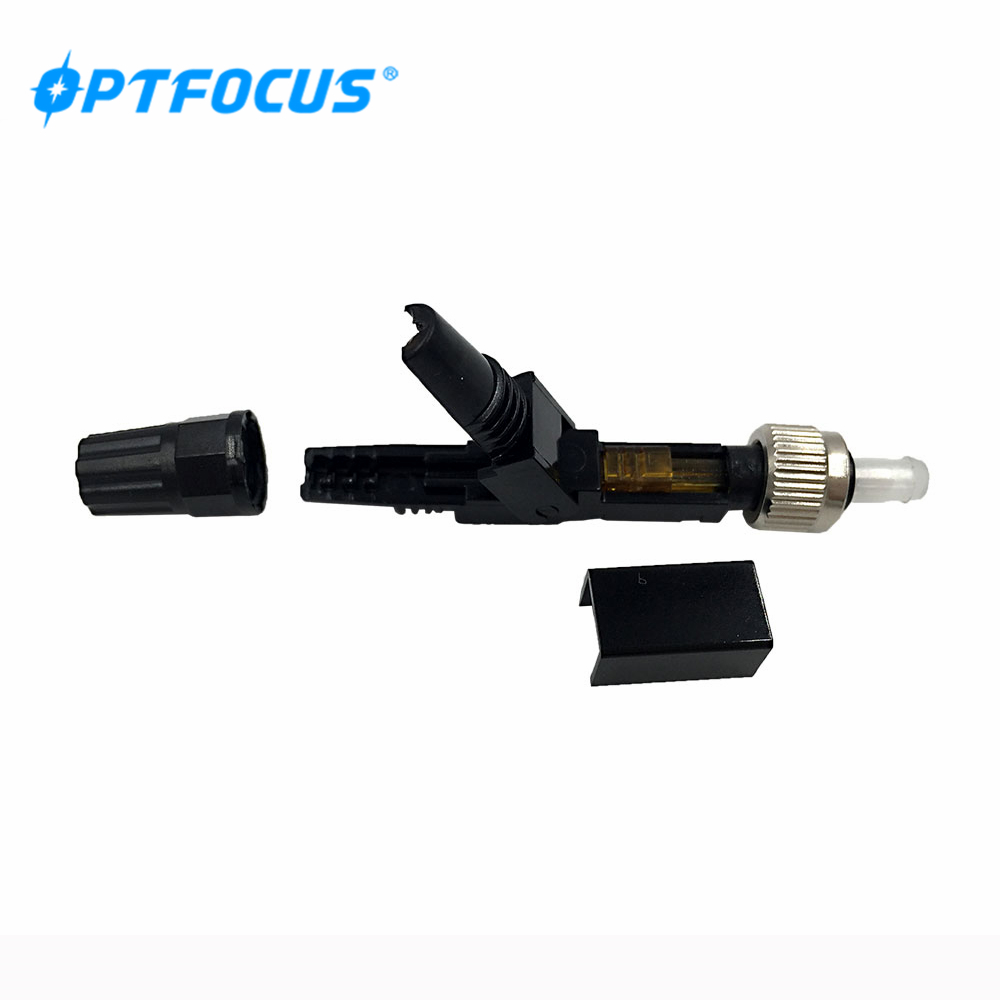

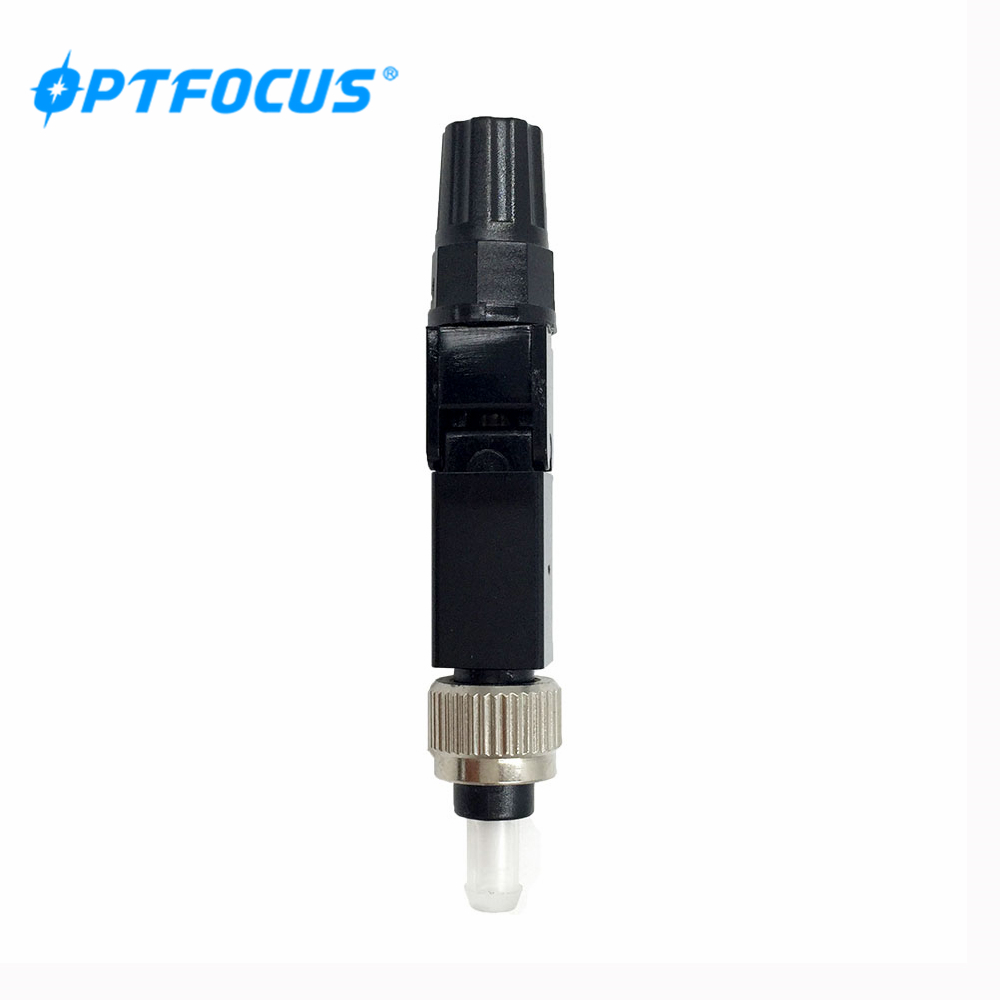

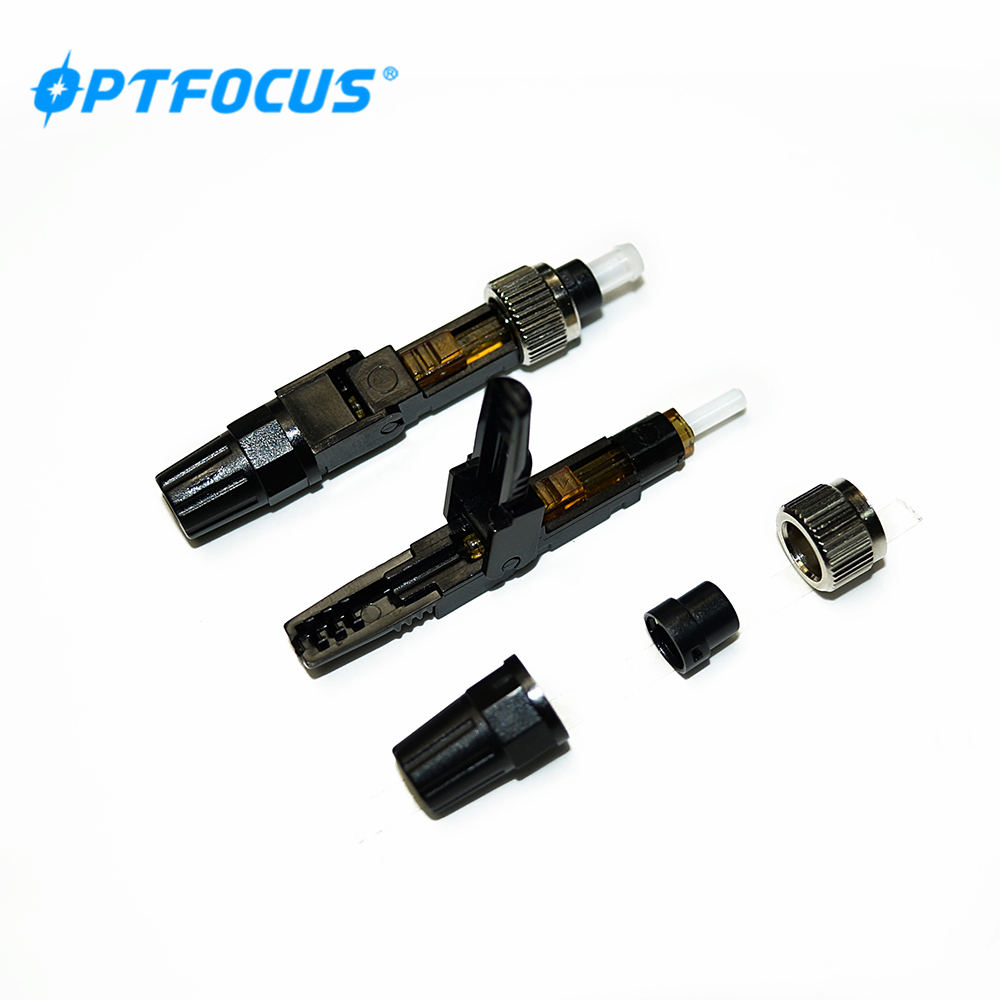

Quick Assembly Single Mode FTTH SC/APC fast connector

OFS-FS-FCS55S

minimum order

1 piece

Country of Origin

SHENZHEN

Quantity

Contact Now

add to cart

Model Number:OFS-FS-FCS55S
Type:Fiber Optic Cable
Place of Origin:Guangdong, China
Brand Name:Optfocus
Use:FTTX
Warranty Time:5 YEARS
Network:Wireless Lan, Wired LAN
Model Number::FC/UPC
Type::Backshell
Application::FTTH
Applicable for::Drop cable / Indoor cable
Tight buffer diameter::250μm
Operation time::About 100s(no fiber cut)
Fiber mode::Single mode
Insert loss::≤ 0.3dB(1310nm & 1550nm)
Return loss: >:> 50db(PC), > 55db(UPC), >65db(APC)
Tensile strength::>50 N

Single Mode FTTH SC/APC fast connector

Performance Features

The large-scale production technology is mature and exquisite, and the supply is timely and stable;

All of them use -level insert, with low loss in detection and perfection;
It has strong adaptability, can be used repeatedly and has long service life;
The installation and maintenance are simple and convenient, and the use cost is low.

Applications

1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications

Technical Paramenter

item	The embedded type fiber optical fast connector
Optical fiber diameter	0.125mm (657A &658B)
Tight buffer diameter	0.250mm
Fiber mode	Single mode
Insert loss	≤0.3dB
Return loss	UPC≥45dB, APC≥55dB
Fastening strength of naked fiber	>4N
Fastening strength of naked fiber holder	>20N
Using Temperature	-40°C~+85°C
Connector Type	SC-PC-ZXY01
Temperature cycle experiment (168h)	IL≤0.5dB
High temperature and high humidity experiment (96h)	IL≤0.5dB
Drop-off test (drop off height 1.5m, once per direction, totally 8 times)	IL≤0.5dB

If you have needs,pls feel free to contact us any time,we will offer best price and best quality products.Thank you very much for you contacting.

Our company:

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.

Advantage of our company :

1 National High-tech enterprise certification;

2 Fiber Optical Innovative &production team Over 10 years;

3 Fiber optical active and passive components production Workshop;

4 Strict quality management system;

5 Professional One stop supply & service;

6 OEM&ODM available;

7 Reliable and Timely customer services;
