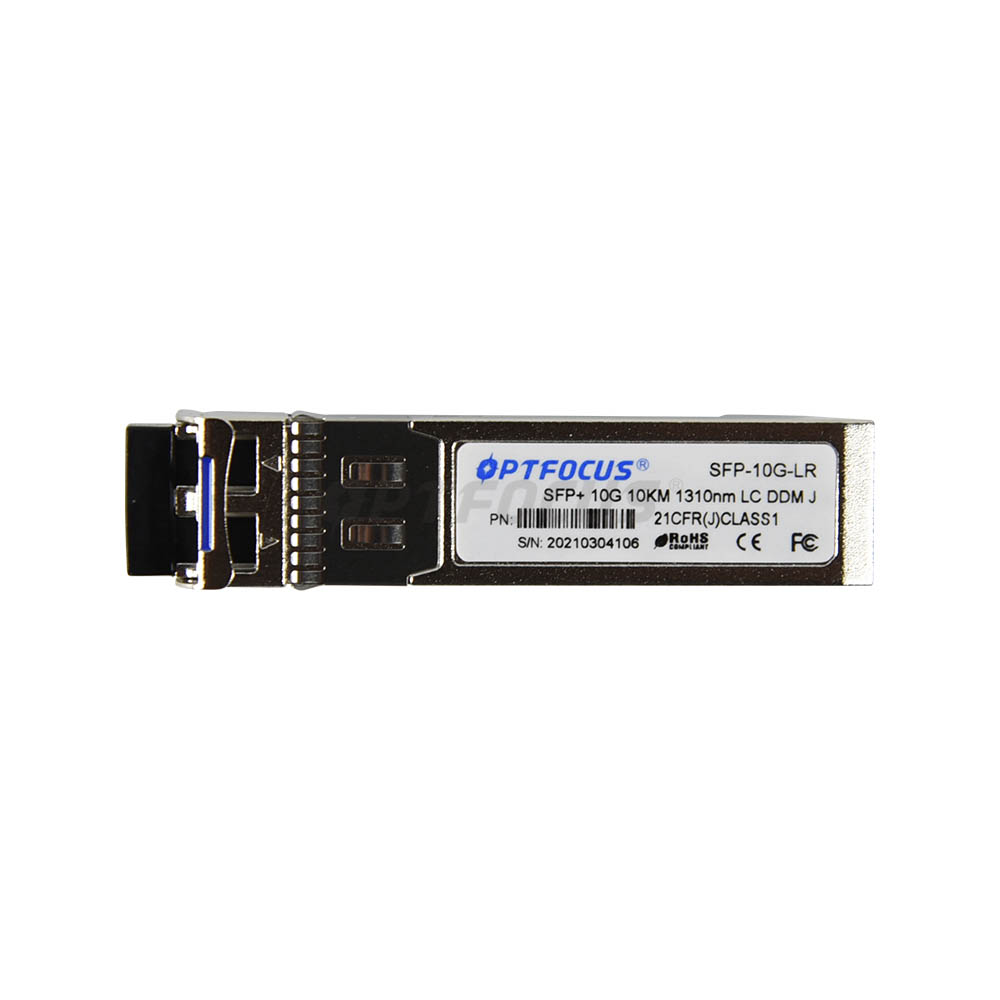

SFP-10G-LR 1310nm 10km duplex dual fiber single mode 10G based SFP+ module
SFP+LR
minimum order
1 piece
Country of Origin
SHENZHEN,GUANGZHOU,HONGKONG
Quantity
- Model Number:SFP+LR
- Type:Fiber Optic Transceivers
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:NETWORK
- Warranty Time:2 YEARS
- Network:NETWORK
- Product name:SFP+ Module
- Application:Gigabit Ethernet
- Standard operating temperature:0 to +70°C
- Data-rate:10Gbps
- Wavelength:1310nm
- Distance:10 KM
- connector:LC Dulplex
- KEYWORDS:10G duplex SFP+ module
- Certification:CE
Product Description
Specification
10Gbps SFP+ Optical Transceiver, 10km Reach
Features
* Optical interface compliant to IEEE 802.3ae 10GBASE-LR
* Electrical interface compliant to SFF-8431
* Hot Pluggable
* 1310nm DFB transmitter, PIN photo-detector
* Operating case temperature: 0 to 70 °C
* Low power consumption
* Applicable for 10km SMF connection
* All-metal housing for superior EMI performance
* Advanced firmware allow customer system encryption information to be stored in transceiver
* Cost effective SFP+ solution, enables higher port densities and greater bandwidth
* Optical interface compliant to IEEE 802.3ae 10GBASE-LR
* Electrical interface compliant to SFF-8431
* Hot Pluggable
* 1310nm DFB transmitter, PIN photo-detector
* Operating case temperature: 0 to 70 °C
* Low power consumption
* Applicable for 10km SMF connection
* All-metal housing for superior EMI performance
* Advanced firmware allow customer system encryption information to be stored in transceiver
* Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Applications
* 10GBASE-LR at 10.3125Gbps
* 10GBASE-LW at 9.953Gbps
* Other optical links
* 10GBASE-LR at 10.3125Gbps
* 10GBASE-LW at 9.953Gbps
* Other optical links
Product description
This 1310 nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for
link length 10km.
The SFP+ LR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output
impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce
differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved
FR4 material or up to about 150mmof standard FR4 with one connector.
This 1310 nm DFB 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for
link length 10km.
The SFP+ LR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output
impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce
differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved
FR4 material or up to about 150mmof standard FR4 with one connector.
Parameters | Symbol | Min. | Max. | Unit |
Power Supply Voltage | VCC | 0 | +3.6 | V |
Storage Temperature | Tc | -40 | +85 | °C |
Operating Case Temperature | Tc | 0 | +70 | °C |
Relative Humidity | RH | 5 | 95 | % |
