cheap price 1.25G SM SF 20km SC zte cisko switch SFP

OFSB-5312-20SD, OFSB-3512-20SD, 1.25G SFP Transceiver Module with DDM

minimum order

1 piece

Quantity

Contact Now

add to cart

Model Number:OFSB-5312-20SD, OFSB-3512-20SD, 1.25G SFP Transceiver Module with DDM
Type:Fiber Optic Transceivers
Place of Origin:Guangdong, China
Brand Name:OPTFOCUS, OPTFOCUS or OEM
Use:Optical fiber tranceiver
Warranty Time:2 years
Certification:CE FCC RoHS ISO9001
connector type:SC
Wavelength:1310nm / 1550 nm
Compatible:Cisco, Arista Networks, Brocade, HP, Dell, H3C, Huawei, or Custom
Commericial grade:0 to 70 degree
Industry grade:-40 to +85 degree
Distance:20km
keywords:switch sfp

Product Description

cheap price 1.25G SM SF 20km SC zte cisko switch SFP

Our company is professional SFP maker! And we have all types of modules for supply. including single mode 3km to 120km, multi mode 550m and speed from 155m, 1.25g, 10g, 40g 100g.
Welcome to contact our sales team and they will offer you a professional introduction about our products!

Product Feature

*Dual data-rate of 1.25Gbps/1.063Gbps operation
*1550nm DFB laser and PIN photodetector for 20km transmission

*Compliant with SFP MSA and SFF-8472 with simplex SC Receptacle

*Compatible with CISCO, HUAWEI, ZTE and etc. brand Switch (substitute of
*Operating case temperature: standard : 0 to +70°C

*With DDM(digital Diagnostic Monitoring)Internal Calibration or External Calibration

Application

*Gigabit Ethernet

*Fiber Channel

*Switch to Switch interface

*Switched backplane applications *Router/Server interface

*Other optical transmission systems

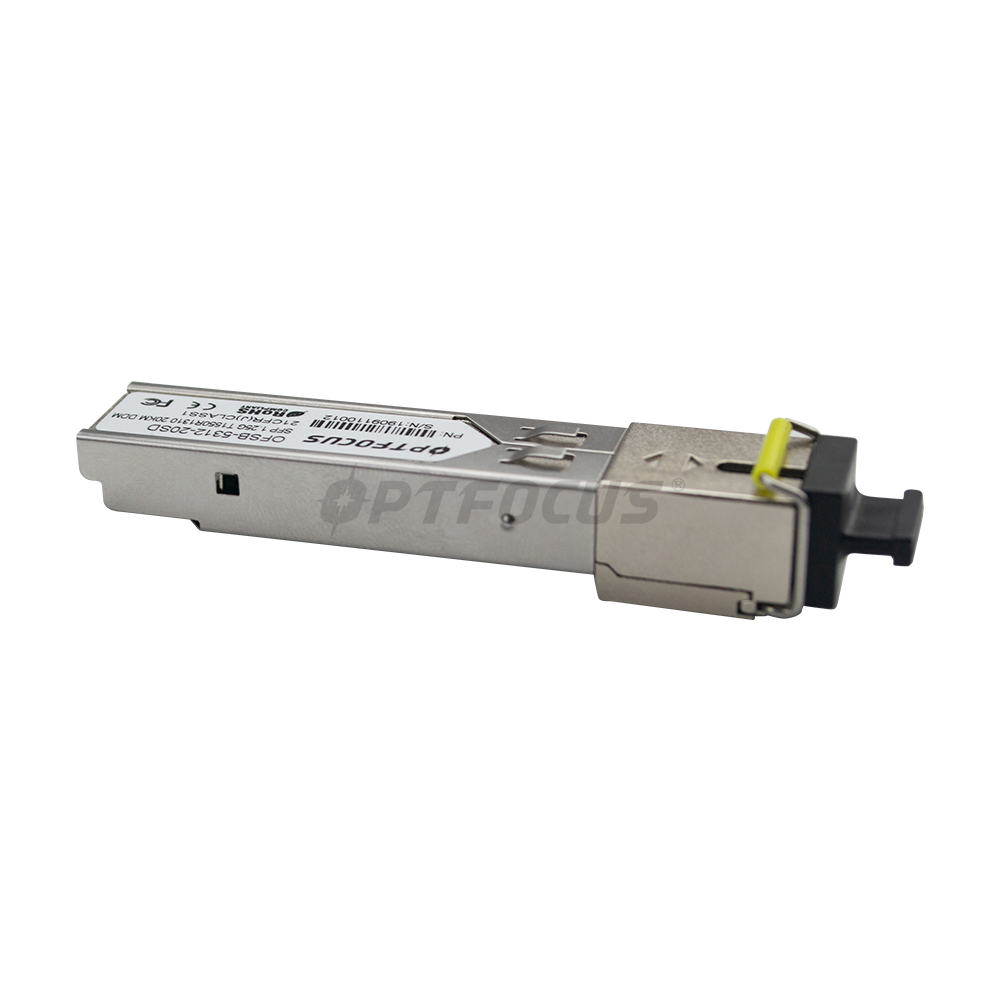

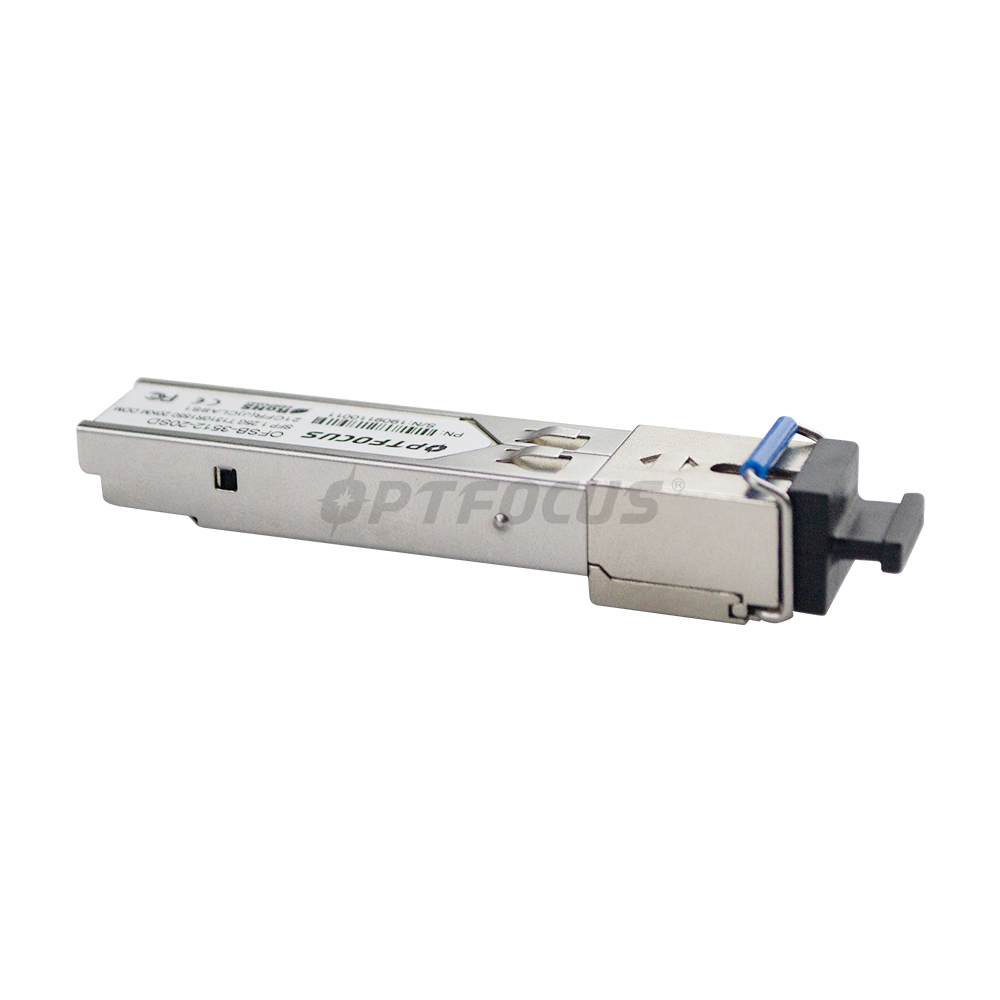

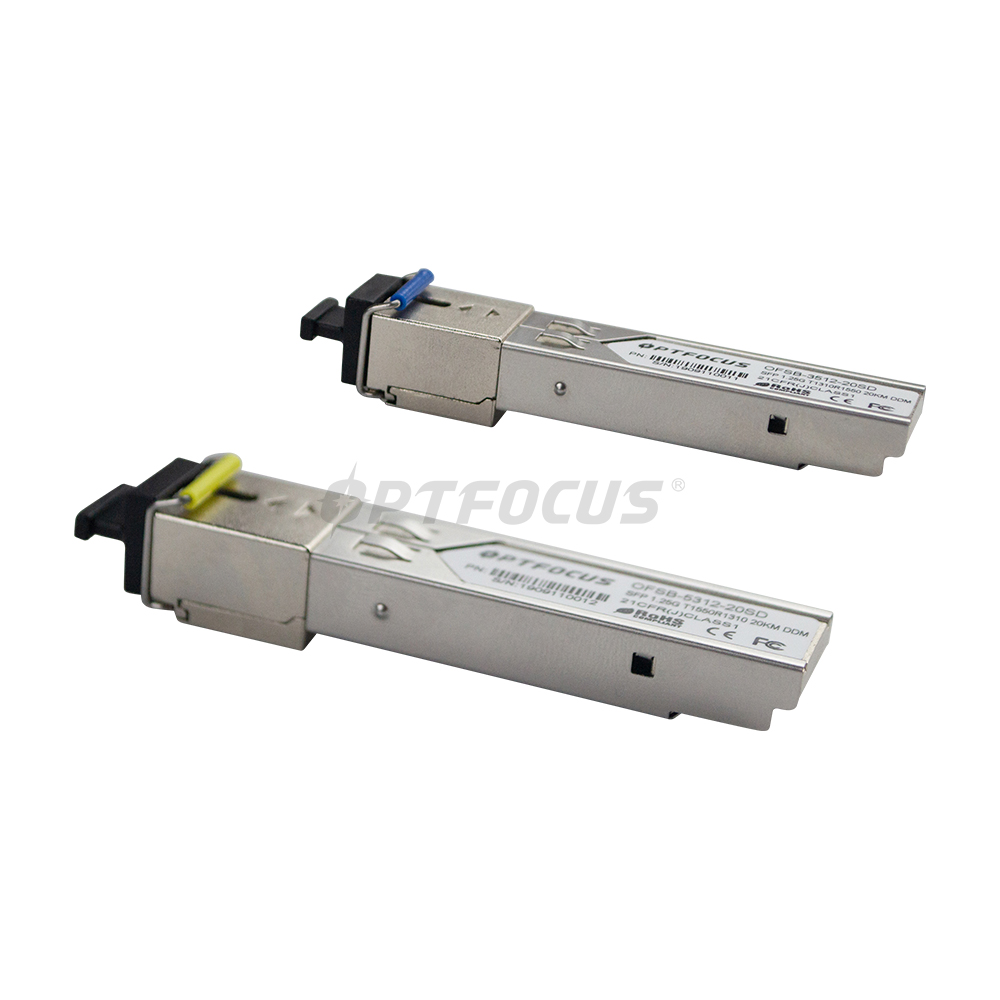

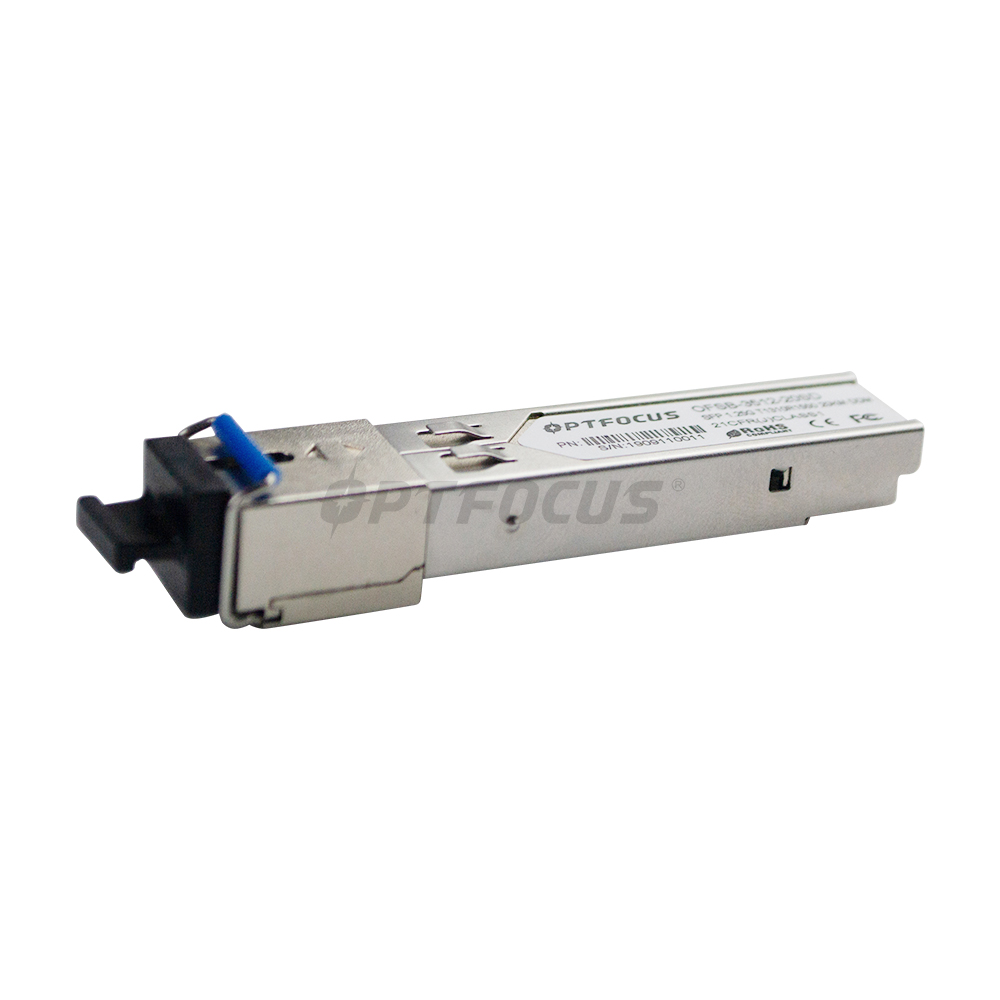

Product Image

SPECIFICATION

Parameter	Range	Unit	Accuracy	Calibration
Temperature	0 to +70	°C	±3°C	Internal / External
Voltage	3.0 to 3.6	V	±3%	Internal / External
Bias Current	0 to 100	mA	±10%	Internal / External
TX POWER	-10 to -4	dBm	±3dB	Internal / External
RX POWER	-30 to -8	dBm	±3dB	Internal / External

Certifications
