Ubiquiti/Dahua CCTV Camera PoE Acess Point Switch 48V DC Unmanaged PoE Switch
- Model Number:OFS-PE-GSF1T2DT8-I
- Type:FTTx Solutions
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTH
- Product Name:10/100M Media Converter
- Packet Forwarding Rate:148800 pps/port
- Forwarding Mode:Store-and-Forward
- LED Indicators:Power: PWR;FX Link/Act; TP 1000(1-8); TP Link/Act(1-8)
- Power Supply:AC100~240V, DC48~57V
- PoE compatibility:IEEE 802.3af/at adaptive
- Working temperature::-20 ~ +55℃
- Storage Temperature:-40 ~ +85℃
- Relative Humidity:10%~95 %( no condensation)
- Warranty:2 years
- No. of Fiber:1
8 Ethernet Port 10/100M PoE+ Network Switch
OFS-PE-GSF1T2T8-I-10/100M 8 ports PoE Switch

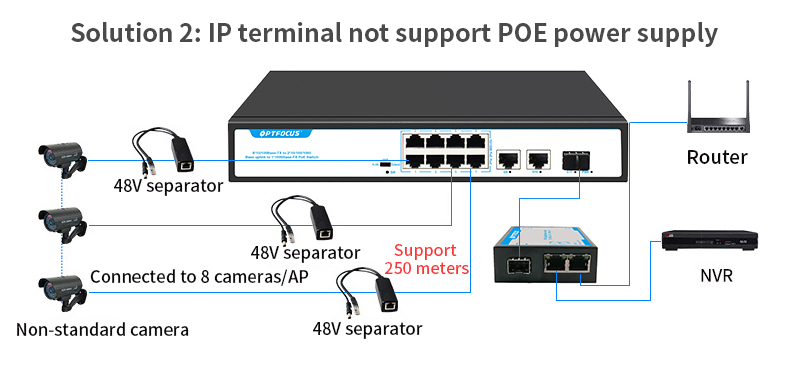

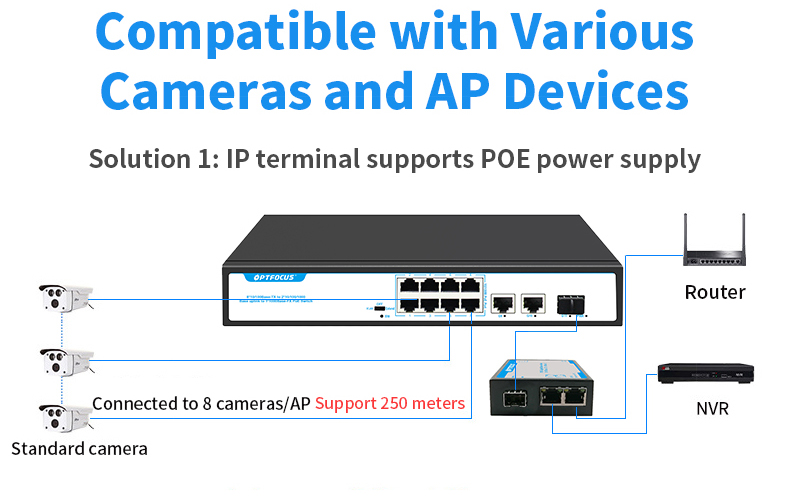

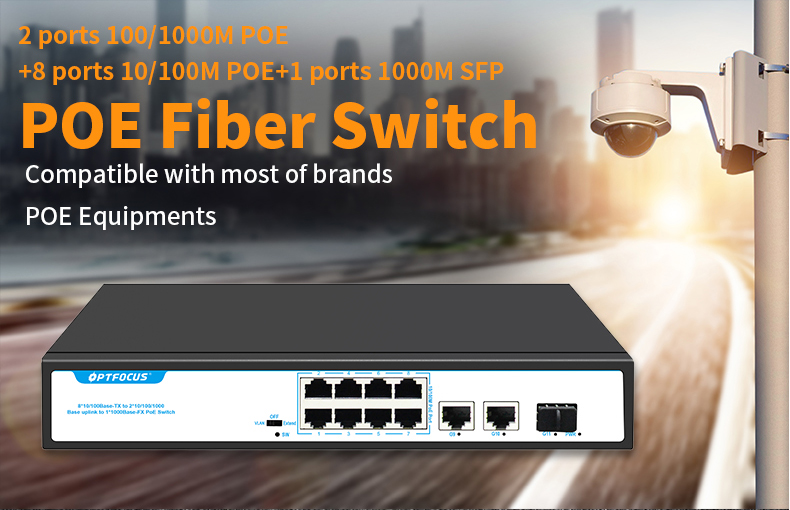

OFS-PE-GSF1T2DT8-I with 8*10/100M PoE Ports + 2*1000M Ethernet Port + 1*1000M SFP Uplink Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.
PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.
Quick view
About shipping:
1)In stock. Shipping by express depedn on address and nations.
2) Deliver time: 5-10 workdays.
3) Delivery way: DHL, UPS, Fedex, TNT and other special line. or clients' forwarder.
4) Payment way:TT/West Union/Paypal/Trade Assurance/LC negotiation...
About products and service:
1) Products NO MOQ. We support OEM & ODM services
2) Power adaptor originally: EU. Standard. internal or external PS for selection by end-users . Any other standards please note us when you place the order, we will suppy accordingly.
3) Warranty: 2 year.

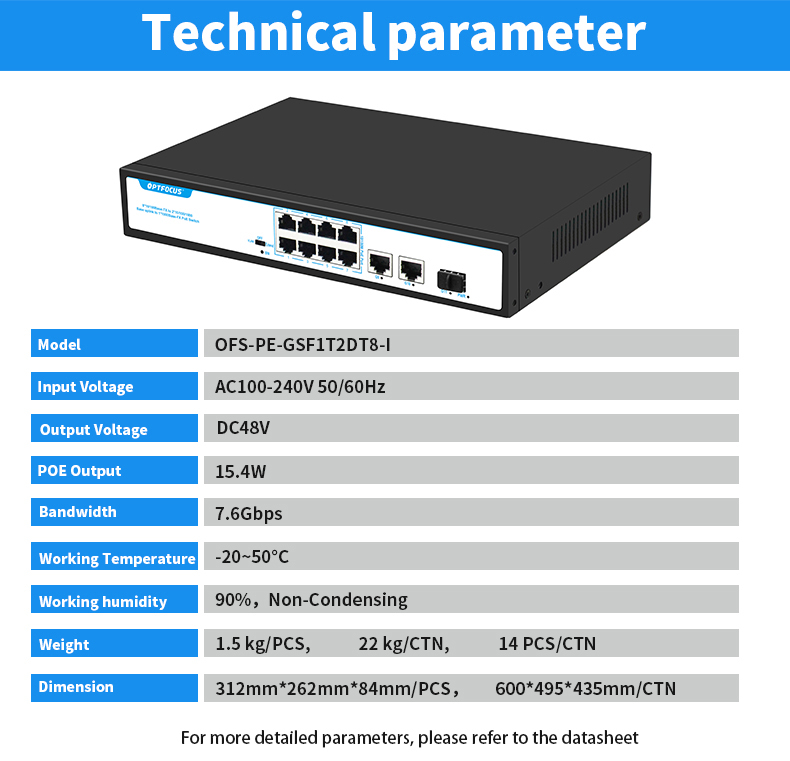

Technical Details
Product Name | 11-Ports 10/100M PoE Switch | ||
Model | OFS-PE-GSF1T2DT8-I | ||
Connector Type | 8 Ports 10/100M PoE + 2 Ports 10/100/1000M Ethernet Uplink + 1 Port 1000M SFP Uplink | ||
Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z IEEE802.3af/at | ||
PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||
Max each port: 15.4W ( IEEE 802.3af ) Max each port:30W ( IEEE 802.3at ) | |||
PoE compatibility: IEEE 802.3af/at adaptive | |||
PoE port output: DC48-55V | |||
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
Network Media | 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-T: Cat 5 UTP(≤250 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) | ||
Optical | MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km | ||
Performance Specification
| Bandwidth: 7.6Gbps | ||
MAC Address: 2K | |||
Packet Buffer Memory: 448K | |||
Packet Forwarding Rate: 5.6Mpps | |||
Forwarding Mode: Store-And-Forward | |||

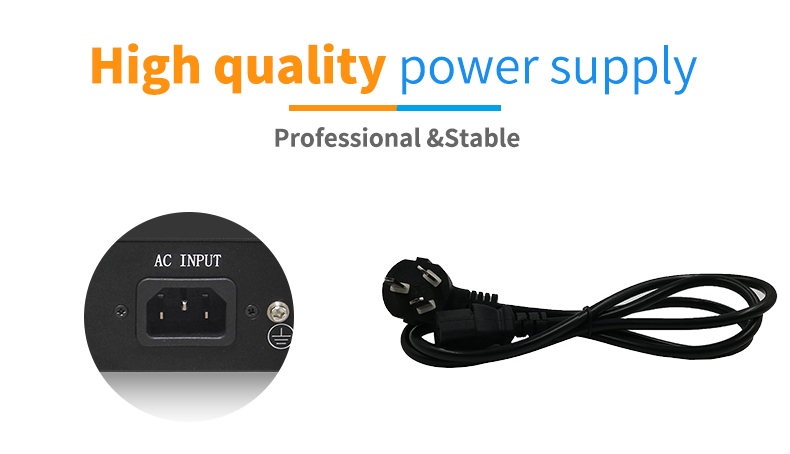

Power Supply | Adapter Input Voltage: AC100-240V; Product Input Voltage: DC48-55V, Output: 52V2A, Power Budget: 104W | ||
Led indicator | PWR | Power supply indicator (Red) | Lighting:Powered Un-Light:No Power |
SW | DIP indicator (Green) | OFF: Normal VLAN: Lighting Extend: Slow flash | |
1-10 |
RJ-45 ACT indicator (Green) | Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect | |
Working Environment | Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) | ||
Physical Parameter | Product Dimension (L*W*H): 270mm*180mm*45mm Package Dimension (L*W*H): 312mm*262mm*84mm N.W: 1.1KG G.W: 1.5KG | ||

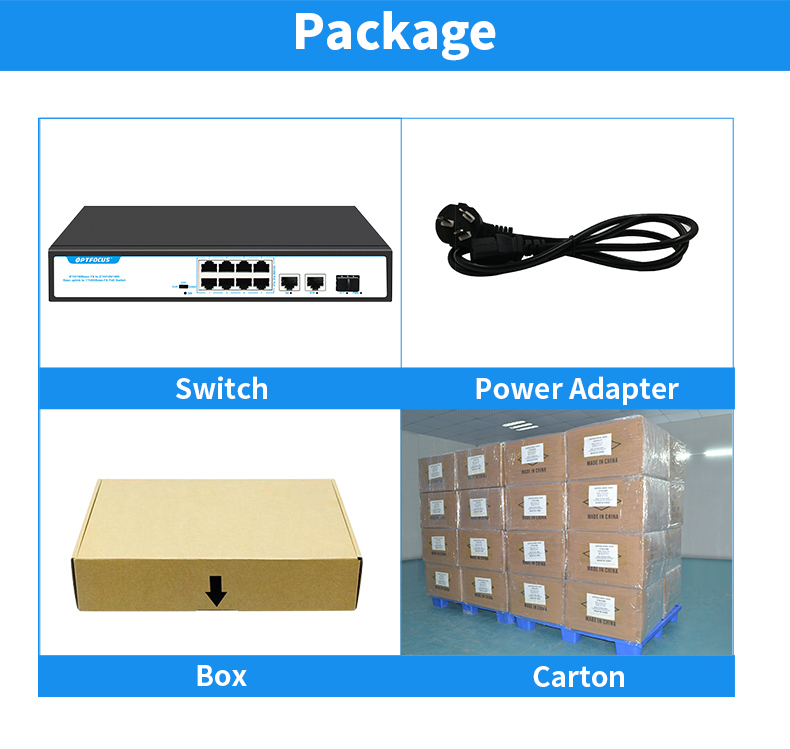

Package Contents | 1.Ethernet Switch:1 unit 2.User Guide:1 unit 3.Warranty Card:1 unit 4.Power Cord:1unit 5. Power Adapter: 1 units 6.Wall Mount: 1 pair | ||
MTBF | 100,000 hours | ||
Certification | CE ,RoHS, FCC, CCC | ||
Warranty | 2 years | ||

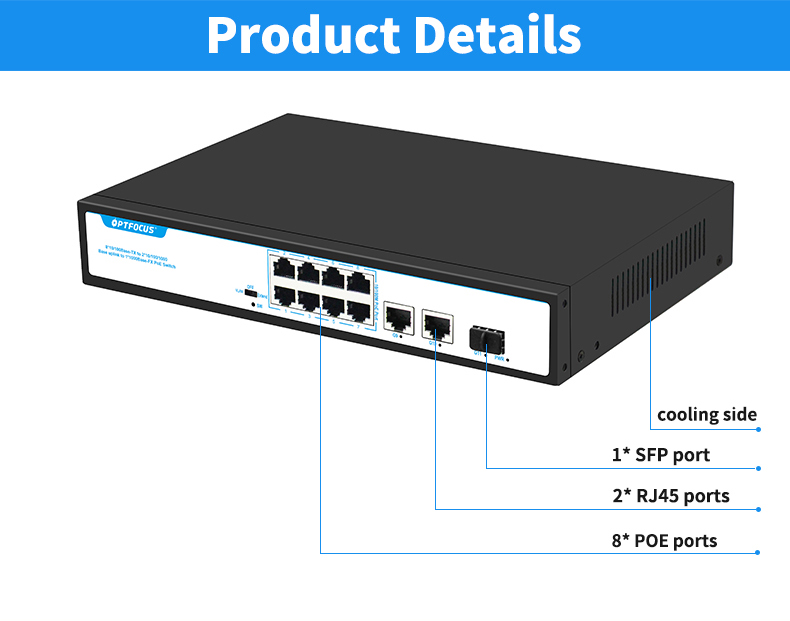

Products Details

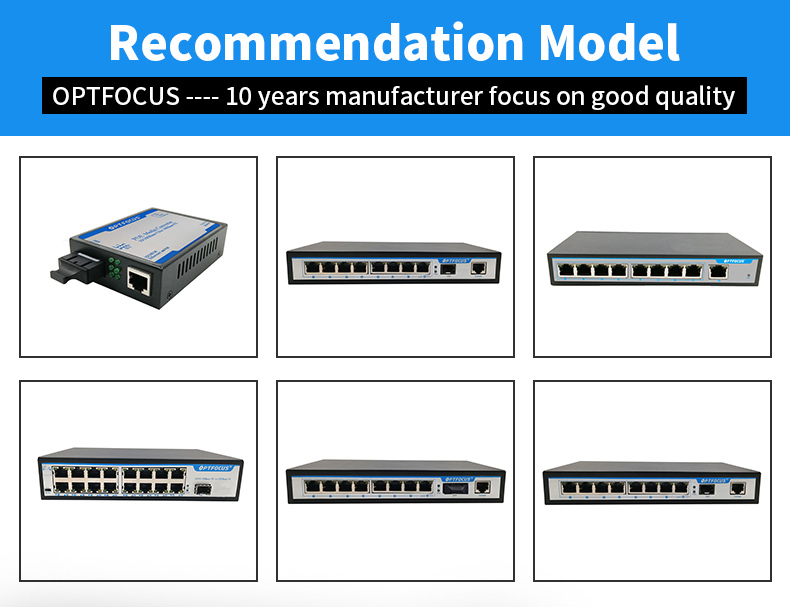

Related products:
Delivery:
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx,
Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.
1.What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.
2. What is your payment terms?
Trade assurance ,T/T, West Union,Paypal, LC or Cash.
3. What is your warranty time
We promise 2 years’ warranty for this products shipped from us.
4. What is the lead time?
For usual products. We keep stock, could ship 1-3 days after PO. For big quantity and special products. Please check lead time with our sales representative.
5. Could I use our own logo and label?
Yes, we could provide a OEM service and make the products with your own label.
