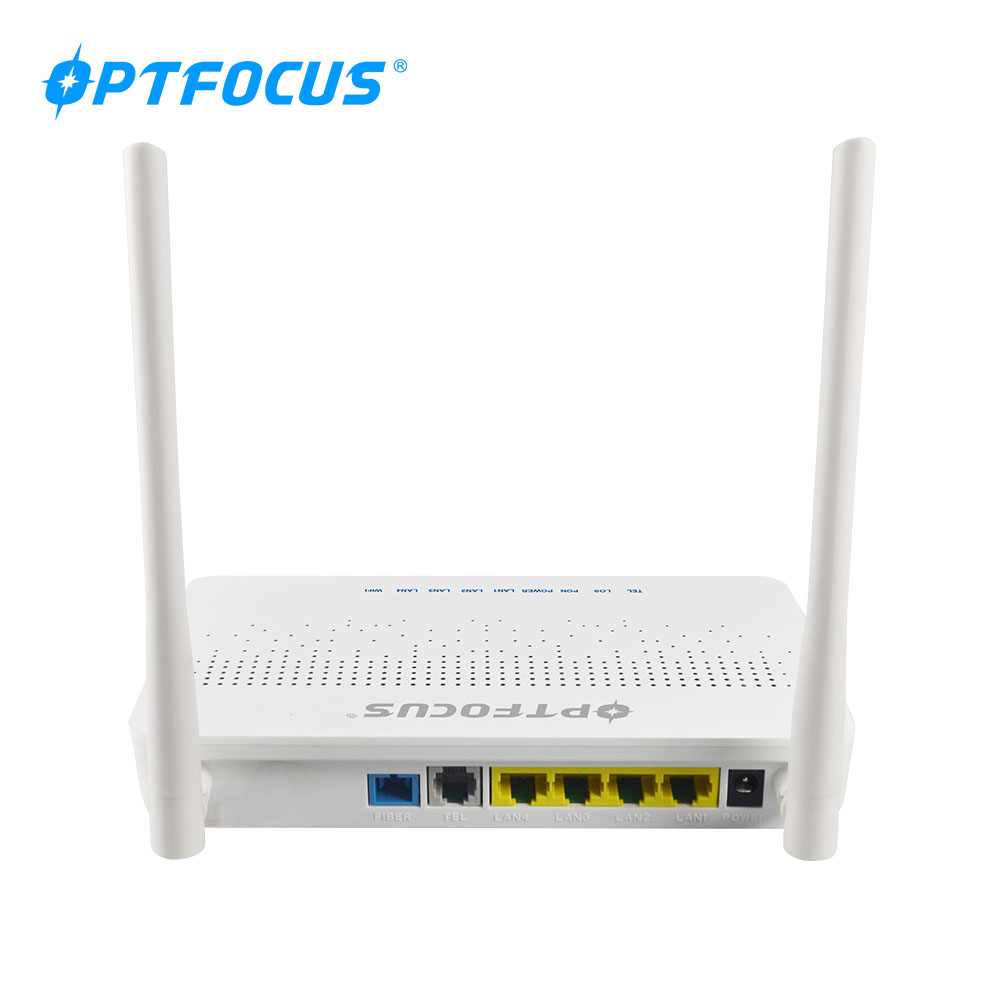

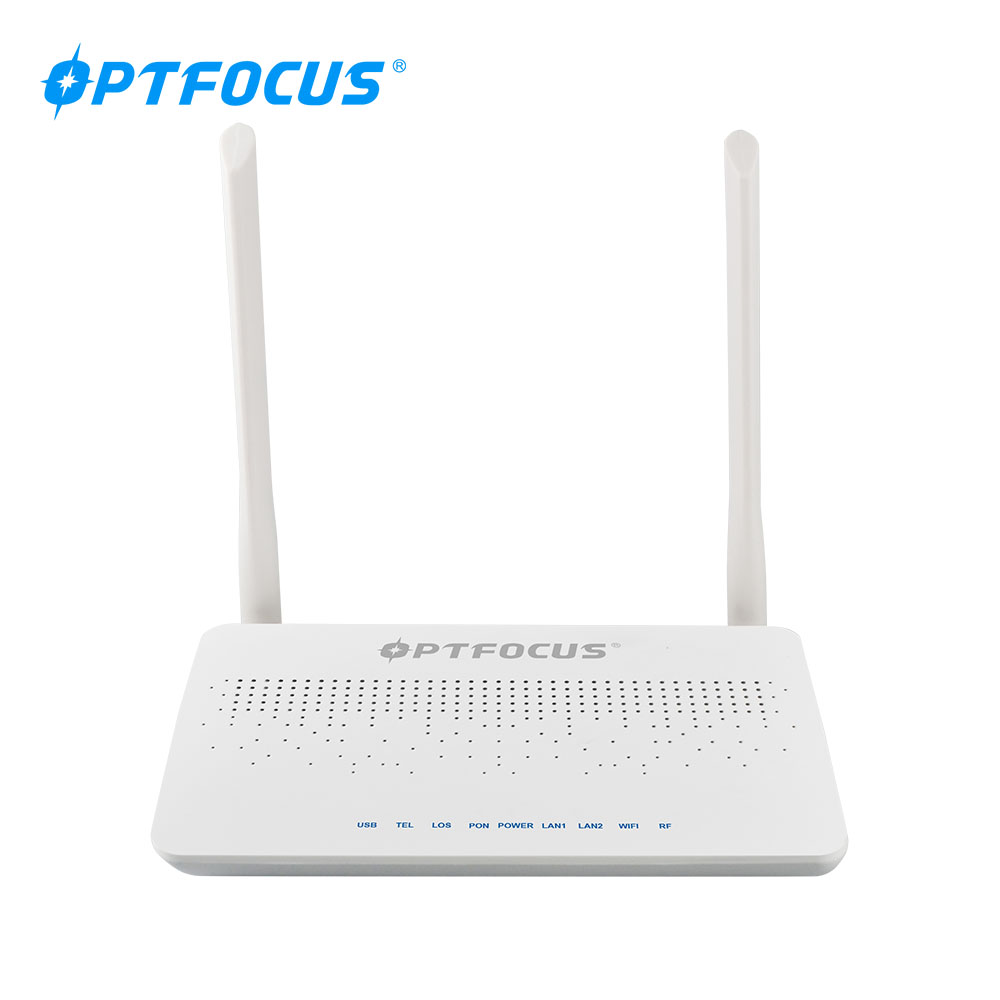

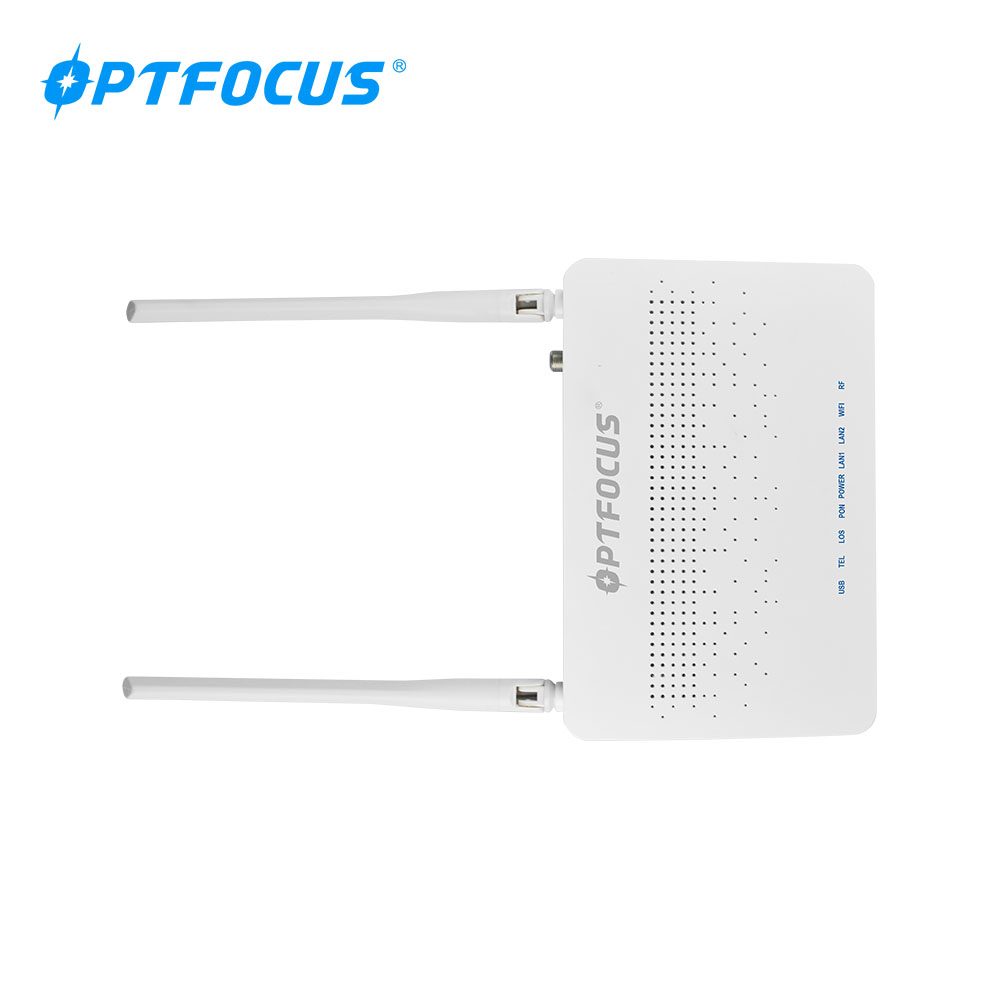

XPON ONU wifi same like huawei onu device HG8546M HG8247 onu wifi router
OFSX624-VW
minimum order
1 piece
Country of Origin
SHENZHEN,GUANGZHOU,HONGKONG
Quantity
- Model Number:OFSX624-VW
- Type:FTTx Solutions
- Place of Origin:Guangdong, China
- Brand Name:OPTFOCUS
- Use:FTTH
- Keywords:ONU
- Connector:1GE+3FE+1POTS
- Wifi:2.4GHz
- Pon model:XPON
- Wavelength:TX1310 / RX1490
- Router:PPPOE&Bridge
- Fiber port:SC/UPC
- Operating temperature:0 - 55 Deg
- Management:WEB;CLI;OLT
- Warranty:1 Year
- No. of Fiber:1
Product Description
OFSX624-VW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Specification
Tech parameters | description |
Up-link interface | 1 XPON interface，SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type：SC/UPC Optical power：0~4 dBm Sensitivity：-28 dBm safety: ONU authentication mechanism |
Wavelength(nm) | TX 1310nm，RX 1490nm |
Fiber connector | SC/UPC connector (SC / APC optional) |
Down-link data interface | 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
Indicator LED | 9 pcs |
DC supply interface | input＋12V 1.5A |
Power | ≤10W |
Operating temperature | -5～+55℃ |
Humidity | 10～85%（non-condensation） |
Storage temperature | -30～+70℃ |
Dimension（MM） | 188*125*35mm（mainframe） |
Weight | 0.5Kg（mainframe） |
Wifi Characteristics
Tech features | description |
antenna | 2T2R Mode 5DBI Gain ,Frequency:2.4G |
rate | 300Mbps PHY rate |
encryption methods | WFA、WPA、WPA2、WAPI |
VoIP Technical feature
symbol | color | meaning |
PWR | green | ON:successfully connect with power OFF:fail to connect with power |
PON | green | ON:ONU port Link link correctly Flicker: PON registering OFF:ONU ports link link faulty |
LAN | green | ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
WIFI | green | ON: WIFI is running OFF:WIFI startup fail |
LOS | red | Flicker: fail to connect with PON port OFF: detected fiber to input |
TEL | green | ON: Register success; OFF:Register fail |
CATV | Green | Input optical power：0~ -15DBm |
Red | Input optical power：≥0DBm，or -15DBm≥ |
Featurers
* Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
* Completely compatible with GPONinternational standard IEEE802.3ah/802.3-2005
* Support China Telecom GPON1 standard and expand OAM
* Support triple churning encryption request
* Support DBA reporting mechanism request
* Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
* Support the remote upgrade and download
* Support status detection and fault report
* Support to save configured parameters if power down
* Support to configure the work mode at the user port
* Support MDI-MDIX automatic-detection at the user port.
* Support data encryption and decryption
* Support access authentication based on serial number
* Support access authentication based on MAC address
* Support 802.1Q VLAN
* Support rich QinQ VLAN functions and IGMP Snooping
* Support traffic rule to modify the related priority.
* Support IEEE802.11n 2T2R WiFi function
* Support to restore the factory settings
* Support the remote reset and reboot
* Support dying gasp outage alarm
* Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
* Support USB port
* Completely compatible with GPONinternational standard IEEE802.3ah/802.3-2005
* Support China Telecom GPON1 standard and expand OAM
* Support triple churning encryption request
* Support DBA reporting mechanism request
* Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
* Support the remote upgrade and download
* Support status detection and fault report
* Support to save configured parameters if power down
* Support to configure the work mode at the user port
* Support MDI-MDIX automatic-detection at the user port.
* Support data encryption and decryption
* Support access authentication based on serial number
* Support access authentication based on MAC address
* Support 802.1Q VLAN
* Support rich QinQ VLAN functions and IGMP Snooping
* Support traffic rule to modify the related priority.
* Support IEEE802.11n 2T2R WiFi function
* Support to restore the factory settings
* Support the remote reset and reboot
* Support dying gasp outage alarm
* Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
* Support USB port
Packing & Delivery
Each product is packed in a high quality PE bag, Then put into a box or carton.
